RO7 waterRO Graphite BIOCERA ionizer redox filter

RO7 WodaRO GRAPHITE is a complete osmotic device that allows you to obtain water free from contaminants such as toxic and carcinogenic chemical compounds, heavy metals, bacteria, and viruses. The excellence of the system lies in the use of 7-stage water purification technology, the ability to demineralize it, and water ionization. The device provides constant access to the highest quality REDOX alkaline water with a negative ORP indicator, which has extraordinary health benefits. Built from the best components available on the market, it is characterized by long-term, trouble-free operation.

• 10-year warranty
• The set includes a complete set of replacement cartridges after 6 months.
• Filters have a current PZH certificate.
• We include an installation manual and a service manual with each device.
• The sent set is pre-prepared for installation.

The system is designed to improve water quality using reverse osmosis, one of the most advanced water purification methods. It removes 90-99.99% of all water contaminants: mechanical, dissolved compounds, and microorganisms. The system uses the highest quality 100 GPD membrane from FILMTEC USA.

Thanks to the reverse osmosis system, WodaRO GRAPHITE:

• You will obtain crystal clear water, free from scale - always a clean kettle without deposits, protecting your coffee machine.
• You will have constant access to safe drinking water free from heavy metals, chlorine, pesticides, and microorganisms - such water can be consumed even by small children without the need for boiling.
• Thanks to the built-in mineralizer, you will obtain essential elements needed for the proper functioning of the body such as calcium, magnesium, potassium, and sodium.
• You will obtain REDOX ionized water with a negative ORP indicator, which has extraordinary health benefits. It counteracts diseases such as gout, diabetes, hypertension, kidney stones, stomach acidity, obesity, cancers, and gastric reflux.
• You will improve the taste and smell of water, brewed beverages, and cooked dishes.
• You will have a supply of water stored in the tank.
• You do not need to buy and carry water bottles - thus reducing plastic waste production.
• The WodaRO GRAPHITE filter is characterized by long-term, trouble-free operation.

Ionized alkaline water:

Water from the RO7 system acquires the properties of a strong and natural antioxidant (lots of free electrons) and counteracts the aging processes of the body.

• Reduces the oxidation-reduction potential (from -50mV to -750mV),
• Releases active hydrogen (above 200µg/L),
• Alkalizes water (pH from 8-9.5)

The above features positively influence many aspects of our lives:

• It has alkalizing properties and helps maintain acid-base balance.
• It counteracts diseases such as gout, diabetes, hypertension, kidney stones, stomach acidity, obesity, cancers, and gastric reflux.
• It positively affects blood sugar, triglycerides, cholesterol, and uric acid levels.
• It strengthens the immune system, among other things, through its antioxidant action, efficient elimination of toxins, and better nourishment and oxygenation of cells.
• It counteracts chronic fatigue. People who drink enough good quality water quickly feel the effects on their well-being and energy levels.
• It hydrates well and supports toxin removal.
• The structure of alkaline water molecules allows them to penetrate cell membranes, leading to proper hydration.
• "Normal" water, with a high positive REDOX (ORP) potential, does not have this property because its structure does not allow it to penetrate cells.
• It oxygenates cells. This protects against the development of cancers, which thrive best in low-oxygen (or anaerobic) environments.
• In the absence of adequate oxygen, fermentation processes occur, resulting in the formation of acids - an environment very conducive to diseases and aging of the body.
• It delays muscle fatigue due to its buffering action on lactic acid produced during physical exertion. As a result, athletes tire more slowly and gain more energy.

Water flowing through this system undergoes 7 stages of filtration:

1. FCPS5-AB - Specialized polypropylene cartridge from Aquafilter, made using antibacterial BACinix technology. The cartridge can be used instead of the standard FCPS5 cartridge - fully maintaining its functionality. BACinix technology takes water filtration to a new level. In addition to classic mechanical filtration, the cartridge acts antibacterial and bacteriostatic on microorganisms present in the water. BACinix technology utilizes silver nanoparticles, a natural bactericidal element.

2. FCBL10 - Block carbon cartridges improve the taste and smell of water, remove mechanical impurities larger than 10 microns, remove chlorine and its toxic derivatives, eliminate lead and toxic heavy metals, and remove organic compounds (including bacteria).

3. FCPS1 - Foam mechanical cartridge made from polypropylene nonwoven fabric removes larger undissolved mechanical impurities such as rust, suspensions, sand, silt, etc., up to 1 micron in size.

4. FILMTEC 100 - osmotic membrane from an American company that meets the highest NSF standards. It is a set of semi-permeable thin-film membranes. Combined with polypropylene nonwoven filters and activated carbon, it allows for truly pure and healthy water. The osmotic membrane removes up to 99% of all dissolved compounds in water, as well as bacteria and viruses.

5. AV-GAC-L - linear carbon cartridge filled with activated carbon media. The activated carbon media contained in the cartridge significantly improves the taste and smell of water, reducing chlorine and other organic compounds.

6. AV-MIN-L - linear mineralizer cartridge. Osmotic filtration removes 96-99% of all impurities and minerals from water. The dolomite mineralizer AV-MIN-L enriches the water with minerals lost during the osmotic filtration process. Water flowing through the mineralizer is enriched with elements essential for the human body, such as calcium, magnesium, potassium, and sodium.

7. BIOCERA – ionizing cartridge. The cartridge saturates water with hydrogen, thereby reducing its REDOX potential. It raises the pH of the water. In practice, this means that the water becomes an effective antioxidant. As an antioxidant, hydrogen binds harmful free radicals that, if left unpaired, degenerate our body. Ionized water has many applications, including positively affecting digestive processes, supporting kidney function, regulating acid-base balance, removing toxins, and alkalizing the body.

The RO7 wodaRO GRAPHITE water filter has:

• Double sealing system for the pre-filter housings and the osmotic membrane housing
• Branded filter cartridges
• Quick connectors from one of the best global manufacturers - the ORGANIC brand
• Hoses in 5 colors - this facilitates orientation during the installation of the device
• Specially selected flow restrictor
• Built-in dolomite mineralizer
• Built-in water ionizer
• Double spout allowing separate dispensing of pure water after osmosis and pure mineralized, additionally ionized water.

System components:

Modern spout

The faucet in a modern style with two taps. It is made of the highest quality materials, ensuring comfort of use and reliability. With two taps, it is possible to dispense water after osmosis or mineralized water. Very easy to install, it presents elegantly with any standard spouts. The chrome faucet from Aquafilter is the best product in its category.

Water tank

Treated water is stored in a 12-liter (new model) pressure tank, (about 8 liters) from which it is drawn on demand.

Operation:

The maintenance costs of the RO9 wodaRO GRAPHITE filter involve replacing individual cartridges at the following intervals:

• Every 6 months of use: FCPS5-AB, FCBL10, FCPS1
• Every 12 months of use: AV-GAC-L, AV-MIN-L
• Every 24 months of use: BIOCERA
• The lifespan of the membrane is estimated at about 7 - 8 years.

Included is a complete set of replacement cartridges after 6 months.

Technical parameters:

• Maximum output: 370L/day*
• Weight: approx. 8KG
• Minimum/maximum operating pressure: 2.5 bar - 6 bar
• Ratio of pure water to rejected water: 1:2 - 1:8 depending on pressure and water temperature, average 1:4
• Operating temperature: 2-42 °C

*at a pressure of 6 bar and water temperature of 25°C

System dimensions:

• 46cm
• 39cm
• 15.5cm

Height can be adjusted by rotating the linear cartridges.

Tank dimensions:

• diameter 23.5cm
• 36cm

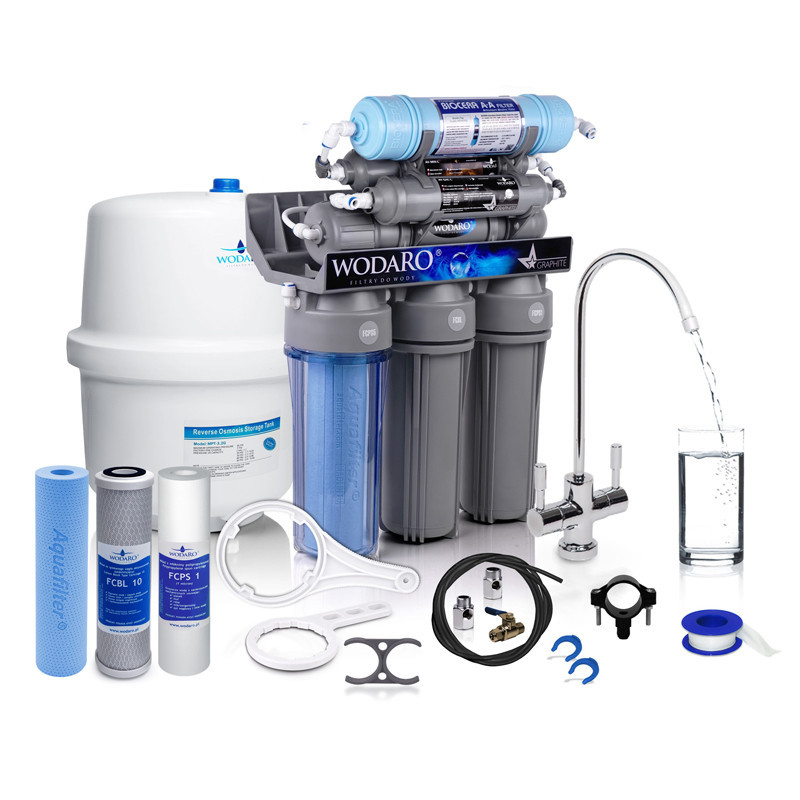

Set contents:

• RO7 wodaRO GRAPHITE filtering set
• 1 set of spare cartridges (3 pieces)
• 12L gross water storage tank (approx. 8L working capacity)
• Valve for the water tank
• Four-way valve
• Restrictor / limiter (specially selected for the membrane)
• NEW LINE double spout
• 5 hoses in different colors, each 1.5m long
• 2 water connections in sizes 1/2 inch and 3/8 inch
• Brass valve for water connection
• Clamp for draining wastewater (mounted to the siphon)
• Key for pre-filter housings
• Key for membrane housing
• FILMTEC 100 GPD osmotic membrane
• Installation instructions
• Service instructions
