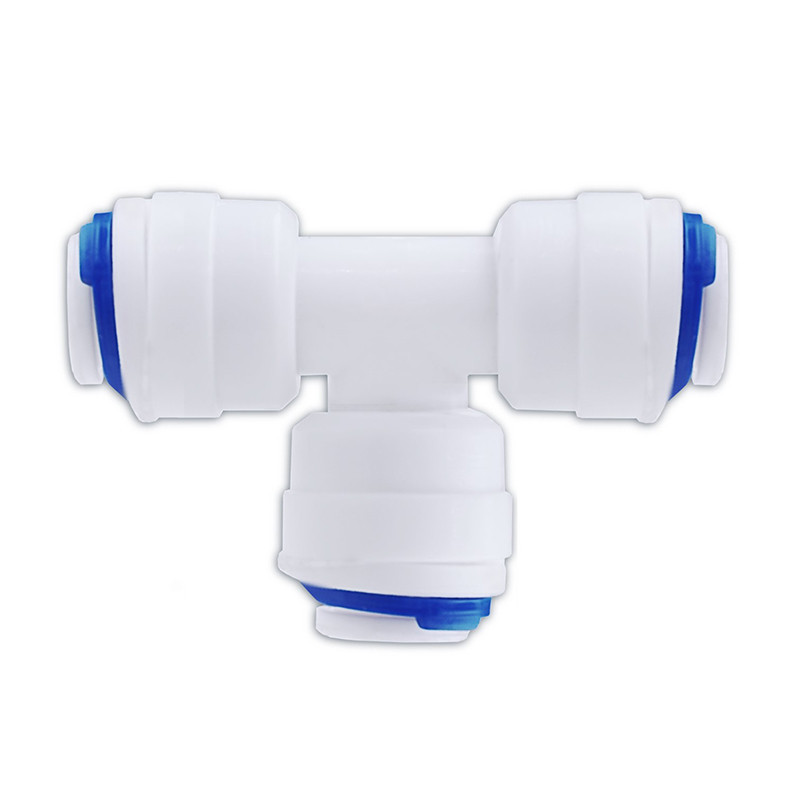

A4TU4-W tee connector 1/4T x 1/4T x 1/4T
ST14T14T14T
4016884263925
Rating
A4TU4-W is a quick-connect tee 1/4T x 1/4T x 1/4T for connecting hoses in water treatment systems, including under-sink systems and reverse osmosis. Installation involves pushing the hose firmly into the fitting, without additional twisting and without Teflon tape. It allows for easy splitting or redirecting of the water flow, e.g., to a second draw-off point or to the refrigerator.
Description
A4TU4-W 1/4T x 1/4T x 1/4T tee fitting is a push-fit component for connecting and splitting 1/4" tubing in water treatment installations. It is suitable for solutions such as reverse osmosis, RO filter, reverse osmosis system, and other installations that use a water filter or an extended water filtration system. Installation simply involves pushing the tubing in as far as it will go, without twisting or using PTFE tape, which speeds up installation and makes subsequent system modifications easier.
What is the A4TU4-W tee used for?
The A4TU4-W is a tee with three 1/4T connections, designed for connecting 1/4" (6,4 mm) tubing. This type of fitting is used wherever water flow needs to be safely split or redirected in compact pipe and tubing installations.
The product is primarily used in under-sink water treatment systems, including installations based on a reverse osmosis filter. Thanks to its push-fit design, it can be quickly connected to an existing system or used when building a new installation.
Key benefits
- allows 1/4" tubing to be connected and split at a single point,
- suitable for installations used in water treatment systems,
- works well in under-sink and RO systems,
- allows quick installation without additional twisting,
- does not require sealing with PTFE tape,
- the self-sealing design simplifies servicing and system expansion,
- makes it easier to supply water to an additional outlet or another appliance.
Use in filtration and osmosis systems
The A4TU4-W tee is a practical solution for users expanding a water filtration system in a kitchen or utility room. It can be used in installations where treated water needs to be routed to more than one outlet.
Typical applications include:
- splitting treated water from a reverse osmosis system between two water outlets,
- redirecting water from the filter to another appliance, such as a refrigerator,
- connecting 1/4" tubing in under-sink water treatment systems,
- modifying an existing installation without complicated assembly.
How does the self-sealing push-fit connector work?
The tubing is secured by pushing it into the fitting as far as it will go. There is no need to twist the connection or use PTFE tape. This installation method significantly speeds up the process and reduces the number of additional accessories needed to connect the system.
The push-fit solution is valued for its ease of use. In practice, this means easier installation, more efficient servicing, and more convenient adaptation of the system to current needs.
Before inserting the tubing, make sure that its end is cut evenly and squarely. Pushing the tubing all the way in helps ensure a proper, leak-tight connection in the water treatment system.
When should you choose this tee?
This model is a good choice when the installation requires a simple branch in 1/4" tubing without using more complex installation components. It is a practical part for expanding a system supplying an RO filter, routing water to a refrigerator, or creating an additional treated water outlet.
Thanks to its compact size and quick connection method, the A4TU4-W works well both during initial installation and when upgrading an existing reverse osmosis system.
Technical specifications
| Model | A4TU4-W |
|---|---|
| Product type | push-fit tee / tee fitting |
| Connection configuration | 1/4T x 1/4T x 1/4T |
| Compatible tubing diameter | 1/4" (6,4 mm) |
| Connection type | self-sealing push-fit connector |
| Installation method | push the tubing in as far as it will go |
| Twisting required | no |
| PTFE tape required | no |
| Application | connecting and splitting tubing in water treatment installations |
| Compatible systems | under-sink water treatment systems, reverse osmosis systems, installations supplying water to additional outlets and appliances |
Product Details
ST14T14T14T
9408 Items
Data sheet
- Model
- A4TU4-W
- Accessory type
- Fitting
- Compatibility
- Universal RO systems
- Fitting type
- Tee
- Product type
- Quick fitting
- Thread size
- 1/4″
- Tube outer diameter
- 1/4″
Questions
What tubing is compatible with the A4TU4-W tee?
The A4TU4-W model is designed for 1/4" tubing, i.e. 6,4 mm. All three connections are the same size: 1/4T x 1/4T x 1/4T.
Is this tee suitable for a reverse osmosis system?
Yes, the fitting is used in under-sink water treatment systems, including reverse osmosis installations and RO filters.
Is PTFE tape required for installation?
No. This is a self-sealing push-fit connector, so the connection is made without using PTFE tape.
Does installation require twisting the components?
No, installation simply involves pushing the tubing into the fitting as far as it will go. This makes installation quick and convenient.
What can this tee be used for in practice?
The fitting can split treated water between two outlets or route it from the filter to another appliance, such as a refrigerator.
Will the A4TU4-W 1/4T x 1/4T x 1/4T tee fitting work in an under-sink water filtration system?
Yes, this solution is specifically designed for under-sink water treatment installations that use 1/4" tubing.
How should the tubing be prepared for connection?
It is best to cut the end evenly and push the tubing straight in as far as it will go. This installation method helps ensure a proper, leak-tight connection.
Is the fitting used only for connecting tubing, or can it also split tubing runs?
The A4TU4-W tee can both connect and split the flow between three 1/4" tubes, making it a highly versatile installation component.
A4TU4-W is a quick-connect tee 1/4T x 1/4T x 1/4T for connecting hoses in water treatment systems, including under-sink systems and reverse osmosis. Installation involves pushing the hose firmly into the fitting, without additional twisting and without Teflon tape. It allows for easy splitting or redirecting of the water flow, e.g., to a second draw-off point or to the refrigerator.
