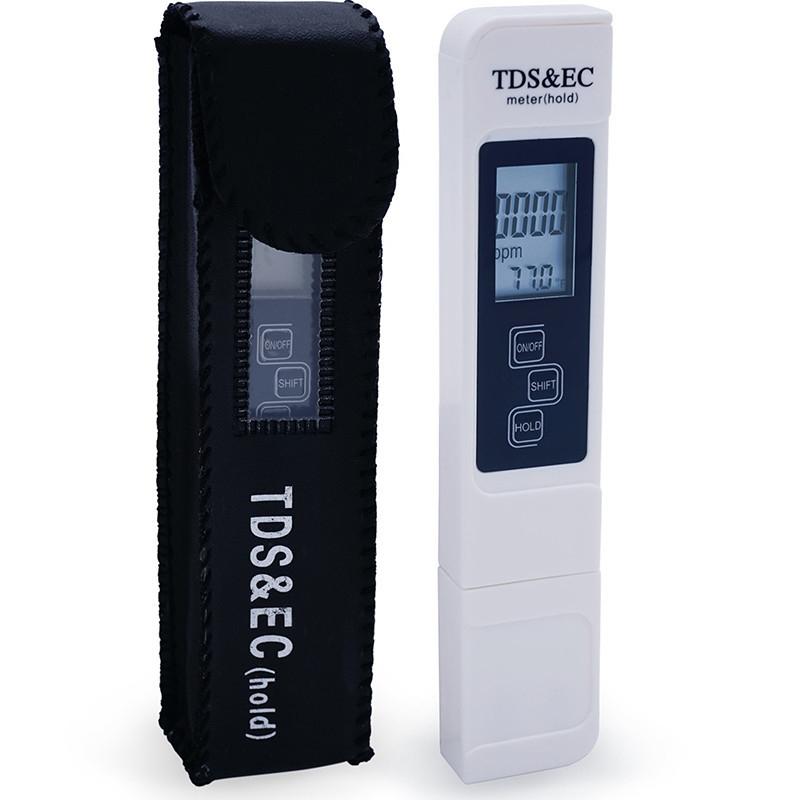

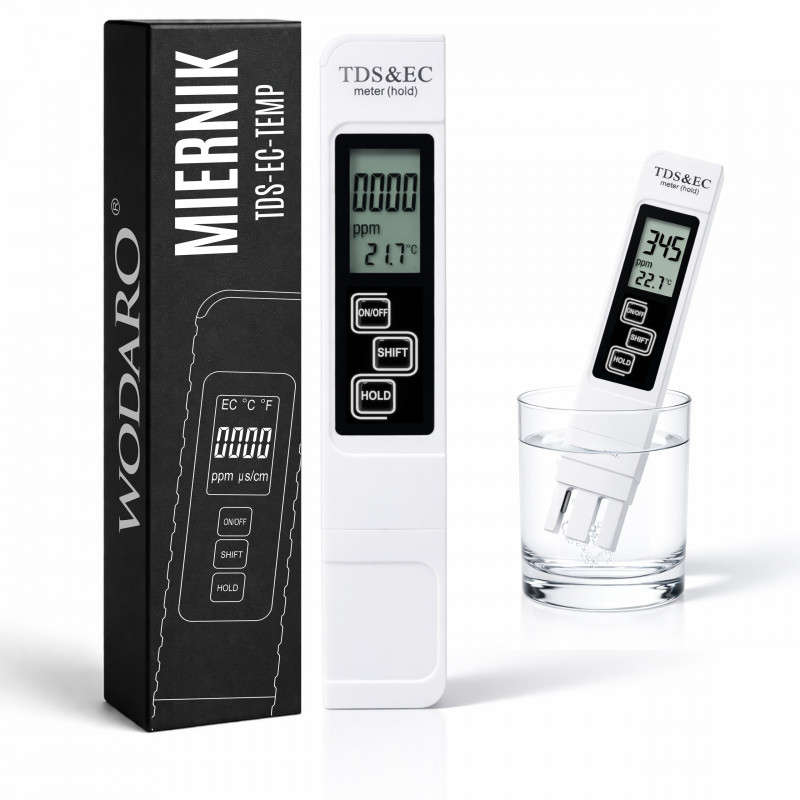

TDS/EC E-1 TDS meter conductivity meter with thermometer
92 people bought this
Pocket TDS/EC meter E-1 for quick measurement of density (TDS), conductivity (EC), and liquid temperature. It simultaneously displays t Read moreShow less
Pocket TDS/EC meter E-1 for quick measurement of density (TDS), conductivity (EC), and liquid temperature. It simultaneously displays the TDS or EC result and the temperature in °C or °F. It features automatic temperature compensation (ATC) from 1-80°C, a HOLD function, auto-off after 5 minutes, and a large readable LCD. Factory calibrated, with the option for calibration using buttons. Includes a case and a CR2032 battery.
Specifications
- Measured parameter
- EC conductivity, TDS
- Measurement range
- TDS 0–9999 ppm; EC 0–9999 µS
- Product type
- Water tester / meter
- Test method
- Electronic meter
Description
TDS/EC E-1 is a pocket TDS meter, conductivity meter, and thermometer in one, designed for quick liquid quality checks. The device measures total dissolved solids (TDS), electrical conductivity (EC), and temperature, making it a great addition for water testing in applications such as aquariums, pharmaceuticals, laboratories, as well as home water treatment, water filters, water filtration systems, and reverse osmosis systems. The large LCD display, automatic temperature compensation (ATC), HOLD function, auto-off after 5 minutes, and factory calibration make measurements fast, convenient, and repeatable.
Precise measurement of TDS, EC and temperature in a compact format
The pocket TDS/EC E-1 meter has been designed for everyday, convenient control of liquid parameters. Thanks to microprocessor technology, the device provides very high measurement accuracy, and its compact housing makes it easy to use both in the field and in laboratory conditions.
The meter is used wherever fast assessment of liquid quality and stable readings matter: in aquariums, pharmaceuticals, cosmetic and medical facilities, and analytical laboratories. It is also a practical tool for users who monitor water in installations such as reverse osmosis, an osmosis filter, or a reverse osmosis water filter.
Key advantages of the device
- the meter displays TDS (ppm) or EC conductivity (µS) and temperature (°C,°F) simultaneously without the need for additional switching
- elegant leather-like case
- HOLD temporary memory function
- auto-off battery saving function
- built-in digital thermometer
- temperature display in °C and °F
- ready to use - factory calibrated
- digital calibration using buttons
- large, bright, easy-to-read LCD display
- 2-year warranty
Displaying the measurement result and temperature on one screen speeds up work and makes parameter control easier without unnecessary function switching. This is especially convenient during frequent sample testing or regular monitoring of water treatment systems.
Built-in functions that make everyday use easier
Automatic temperature compensation (ATC)
The device operates with automatic temperature compensation (ATC) in the range from 1 to 80 °C. This means the measurement is corrected according to the temperature of the tested liquid, helping to provide a more reliable reading.
HOLD function
The temporary memory function lets you freeze the reading on the screen. It is a practical solution when you want to remove the meter from the liquid and read the value in a more convenient place.
Automatic shut-off
The auto-off function turns the meter off after 5 minutes, reducing energy consumption and extending battery life.
Factory and manual calibration
The meter is ready to use right out of the box because it has been factory calibrated. In addition, it allows digital and manual calibration using buttons across the full measuring range.
Device design
- Battery compartment cover
- 3V CR2032 battery
- LCD display
- ON/OFF - Power on/off
- SHIFT - Mode change
- HOLD - Measurement memory
- Maximum immersion level
- Measurement electrode
The clear button layout and readable markings make the device intuitive to operate even on first use.
Dimensions
- A - 15.4 cm
- B - 1.4 cm
- C - 3 cm
The slim, pocket-sized design makes the meter easy to carry and store in a case or service bag.
How to take a measurement
- Remove the protective cap.
- Turn on the meter using the "ON / OFF" button.
- Immerse the meter in the tested liquid (do not exceed the immersion line).
- Wait until the displayed value stabilizes (less than 5 s), then read the value from the display or press the HOLD button and read the result away from the measured liquid.
- After measurement, wipe the electrode with a cloth.
- Turn off the meter using the "ON / OFF" button.
- Put on the protective cap.
Do not exceed the maximum immersion level during measurement. After use, it is worth wiping the electrode and securing it with the protective cap to keep the device in good working condition.
Meter applications
TDS/EC E-1 works wherever quick, convenient, and repeatable measurement of liquid parameters is needed. It is very useful in:
- aquariums,
- pharmaceuticals,
- cosmetic facilities,
- medical facilities,
- analytical laboratories,
- water quality control in home installations,
- monitoring the operation of water treatment devices.
In practice, such a meter is especially helpful wherever a water filter, reverse osmosis filter, or a complete water filtration system is used and liquid parameter changes need to be checked regularly.
Set contents
- TDS/EC/Temp E-1 meter
- electrode cap
- installed 3V battery
- elegant leather-like case
- manual
Additional important information
- thermometer resolution: 0.1
Technical specifications
| Device type | Pocket TDS/EC meter with thermometer |
|---|---|
| TDS measurement range | 0-9999 ppm |
| EC measurement range | 0-9999 µS |
| TDS/EC measurement resolution | 1 ppm/µS |
| Accuracy | +/- 2% |
| Automatic temperature compensation (ATC) | 1-80 °C |
| Factory calibration | With NaCl solution 342 ppm |
| Manual calibration | Using buttons across the full scale |
| HOLD function | Yes, temporary measurement memory |
| Auto-off function | 5 minutes |
| Display | Large, bright, easy-to-read LCD |
| Power supply | 1 x 3V battery |
| Battery model | CR2032 |
| Average battery life | 2 years |
| Weight without packaging | 55 g |
| Dimensions | A: 15.4 cm; B: 1.4 cm; C: 3 cm |
| Ready for use | Factory calibrated |
| Temperature units | °C and °F |
| Warranty | 2 years |
| A | 15.4 cm; B: 1.4 cm; C: 3 cm |
| 15.4 cm; B | 1.4 cm; C: 3 cm |
| 1.4 cm; C | 3 cm |
Questions
What does the TDS/EC E-1 measure?
The device measures TDS, meaning the level of dissolved substances in the liquid, EC conductivity, and temperature. This allows for a quick assessment of the basic parameters of the tested sample.
Does the meter show temperature together with the TDS or EC result?
Yes. The meter simultaneously shows TDS (ppm) or EC conductivity (µS) and temperature in °C or °F, without the need for additional switching.
Is the device suitable for checking water after reverse osmosis?
Yes, it is a practical tool for water quality control in installations such as reverse osmosis, an osmosis filter, or a reverse osmosis system. It makes it easier to regularly check water parameters in home and professional applications.
How quickly does the measurement stabilize?
The value stabilizes in less than 5 seconds. Once stabilized, the result can be read directly from the display or with the HOLD function.
What does the HOLD function do?
The HOLD function freezes the current reading on the screen. It is a convenient solution when you want to remove the meter from the liquid and read the measurement in a dry, comfortable place.
Is the meter ready to use right after purchase?
Yes. The device is factory calibrated and ready to work. It also allows digital calibration using buttons and manual calibration across the full scale.
What powers the meter?
The meter is powered by one 3V battery, model CR2032. The battery is installed in the set, and the average lifespan is 2 years.
Does the device turn off automatically?
Yes. The auto-off function turns the meter off after 5 minutes, which helps save energy and extend battery life.
How should the meter be cared for after measurement?
After measurement, wipe the electrode with a cloth, turn off the device with the ON/OFF button, and put on the protective cap. You should also not exceed the maximum immersion level during operation.
