RO9 waterRO Graphite BIOCERA REDOX water filter osmosis

Advanced osmotic filter for everyday use

RO9 WodaRO GRAPHITE is a complete osmotic device that allows you to obtain water free from contaminants such as toxic and carcinogenic chemical compounds, heavy metals, bacteria, and viruses. The effectiveness of this solution results from the use of 9-stage water treatment technology, the option of remineralization, and a dual ionization system.

The device provides constant access to high-quality alkaline REDOX water with a negative ORP value. The system is built from durable, branded components available on the market, which makes it stand out for its long-term, trouble-free operation.

• 10-year warranty
• The set includes a complete replacement cartridge set for after 6 months.
• The filters have a valid PZH approval.
• We include installation instructions and service instructions with every device.
• The shipped set is pre-prepared for installation.

How does the RO9 reverse osmosis system work?

The system is designed to improve water quality using the reverse osmosis method, one of the most advanced water purification methods. Such a water filter removes 90-99.99% of all contaminants present in water: mechanical impurities, dissolved compounds, and microorganisms.

The device uses a top-quality osmotic membrane 100 GPD by FILMTEC USA, responsible for a very high level of contaminant separation and stable operation of the entire system.

Key benefits for the user

Thanks to the WodaRO GRAPHITE reverse osmosis system:

• You will get crystal-clear water, free from limescale - meaning a consistently clean kettle without deposits and protection for your coffee machine.
• You will have constant access to water safe for consumption, free from heavy metals, chlorine, pesticides, and microorganisms - such water can be consumed even by small children without the need for boiling.
• Thanks to the built-in mineralizer, you will obtain essential elements needed for the proper functioning of the body, such as calcium, magnesium, potassium, and sodium.
• You will get ionized REDOX water with a negative ORP value, which has remarkable health-promoting properties. It helps counteract diseases, including gout, diabetes, hypertension, kidney stones, stomach hyperacidity, obesity, cancer, and gastric reflux.
• You will improve the taste and smell of water, brewed beverages, and cooked dishes.
• You will have a stored supply of water accumulated in the tank.
• You do not need to buy and carry bottled water - thus also reducing plastic waste production.
• The WodaRO GRAPHITE filter is characterized by long-term, trouble-free operation.

Dual ionization and alkaline REDOX water

The dual ionization system gives water from the RO9 system the properties of a strong and natural antioxidant, thanks to a large number of free electrons, and counteracts the body's aging processes.

• Lowers the oxidation-reduction potential (down to -800mV),
• Releases active hydrogen (above 200µg/L),
• Alkalizes the water (pH from 8-10),
• Dual ionization allows the beneficial water parameters to be maintained longer compared to systems with a single ionizing cartridge.

Properties of REDOX water according to the manufacturer's description

The above features mean that water obtained from the system positively affects many aspects of daily functioning:

• It has deacidifying properties and helps maintain acid-alkaline balance.
• It helps counteract diseases, including gout, diabetes, hypertension, kidney stones, stomach hyperacidity, obesity, cancer, and gastric reflux.
• It positively affects the levels of sugar, triglycerides, cholesterol, and uric acid.
• It strengthens the immune system, among other things through its antioxidant effect, efficient toxin elimination, and better nourishment and oxygenation of cells.
• It counteracts chronic fatigue. People who drink a sufficient amount of good-quality water feel the effects on their well-being and energy levels very quickly.
• It hydrates well and supports toxin removal.
• The structure of the alkaline water molecule allows it to penetrate cell membranes, leading to proper hydration.
• "Normal" water, with a high positive REDOX potential (ORP), does not have this property because its structure does not allow it to penetrate cells.
• It oxygenates cells. This helps protect, among other things, against the development of cancer, which thrives best in an environment with low oxygen content, i.e. anaerobic conditions.
• When there is not enough oxygen, fermentation processes occur, resulting in acids - an environment highly conducive to disease and body aging.
• It delays muscle fatigue thanks to its buffering effect on lactic acid produced during physical exertion. As a result, people who practice sports tire more slowly and gain more energy.

9 stages of water filtration

As water flows through this system, it undergoes 9 stages of filtration. Each cartridge performs a specific function, so the entire water filtration system works comprehensively and effectively.

1. FCPS5-AB - a specialist Aquafilter polypropylene cartridge made using antibacterial BACinix technology. The cartridge can be used instead of the standard FCPS5 cartridge while fully maintaining its functionality. BACinix technology takes water filtration to a new level. In addition to classic mechanical filtration, the cartridge has antibacterial and bacteriostatic effects on microorganisms present in the water. BACinix technology uses silver nanoparticles, a natural bactericidal element.
2. FCBL10 - a carbon block cartridge that improves water taste and odor, removes mechanical impurities larger than 10 microns, chlorine and its toxic derivatives, lead, toxic heavy metals, and organic compounds, including bacteria.
3. FCPS1 - a mechanical foam cartridge made of polypropylene nonwoven fabric, which removes larger insoluble mechanical impurities from water, such as rust, suspended solids, sand, or silt, down to 1 micron.
4. FILMTEC 100 - an osmotic membrane from an American company meeting the highest NSF standards. It is an assembly of thin-film semi-permeable membranes. Combined with polypropylene nonwoven and activated carbon filters, it makes it possible to obtain truly clean and healthy water. The osmotic membrane removes up to 99% of all compounds dissolved in water, as well as bacteria and viruses.
5. AICRO-AB - an inline cartridge filled with NSF-certified activated carbon from coconut shells and polypropylene nonwoven containing nanosilver, which protects the cartridge against the development of harmful bacterial flora. The cartridge is designed to remove chlorine, volatile organic compounds VOC's, and to improve taste and odor. Water flowing through the cartridge has excellent quality, taste, and smell.
6. AV-GAC-L - an inline carbon cartridge filled with activated carbon media. The media contained in the cartridge significantly improve the taste and odor properties of water, reducing chlorine and other organic compounds.
7. AV-MIN-L - an inline mineralizing cartridge. Osmotic filtration removes from 96 to 99% of all contaminants and minerals from water. The AV-MIN-L dolomite mineralizer enriches water with minerals lost during the osmotic filtration process. As water flows through the mineralizer, it is enriched with elements essential for the human body, such as calcium, magnesium, potassium, and sodium.
8. AV-REDOX-L - an ionizing cartridge (alkalizer). The cartridge saturates water with hydrogen, thereby reducing its REDOX potential and raising the water pH. In practice, this means that the water becomes an effective antioxidant. As an antioxidant, hydrogen binds harmful free radicals in the body which, if left unpaired, degenerate the body. Ionized water has many applications; among other things, it positively affects digestive processes, supports kidney function, regulates acid-base balance, removes toxins, and deacidifies the body.
9. BIOCERA - an ionizing cartridge. The cartridge saturates water with hydrogen, thereby reducing its REDOX potential and raising the water pH. In practice, this means that the water becomes an effective antioxidant. As an antioxidant, hydrogen binds harmful free radicals in the body which, if left unpaired, degenerate the body. Ionized water has many applications; among other things, it positively affects digestive processes, supports kidney function, regulates acid-base balance, removes toxins, and deacidifies the body.

System design and equipment

The RO9 wodaRO GRAPHITE water filter includes solutions that increase durability, ease of installation, and comfort of everyday system use:

• Double sealing system for the pre-filter housings and the osmotic membrane housing
• Branded filter cartridges
• Quick-connect fittings from one of the world's best manufacturers - ORGANIC brand
• 5 hoses in different colors - this makes orientation easier during device installation
• Specially selected flow restrictor
• Built-in dolomite mineralizer
• Built-in dual ionization system for producing REDOX water
• A dual faucet allowing separate dispensing of pure post-osmosis water and pure mineralized, additionally ionized water.

System components

Modern faucet

A modern-style tap with two spouts. It is made of the highest quality materials, which guarantees comfort of use and reliability. Thanks to the two taps, it is possible to pour post-osmosis or mineralized water. Very easy to install, it looks elegant next to any standard faucet. The chrome-plated Aquafilter tap is the best product in its category.

Water tank

Treated water is stored in a 12-liter (new model) pressure tank, from which it is drawn on demand. The gross capacity of the tank is 12 liters, and the amount of stored water is approximately 8 liters of working capacity.

Operation and cartridge replacement

The maintenance costs of the RO9 wodaRO GRAPHITE filter include periodic cartridge replacement according to the usage schedule:

• Every 6 months of use: FCPS5-AB, FCBL10, FCPS1 cartridges
• Every 12 months of use: AV-GAC-L, AV-MIN-L, AV-REDOX-L cartridges
• Every 24 months of use: BIOCERA cartridge
• The membrane lifespan is estimated at approx. 7 - 8 years.

The set includes a complete replacement cartridge set for after 6 months.

* at a pressure of 6 bar and water temperature of 25°C

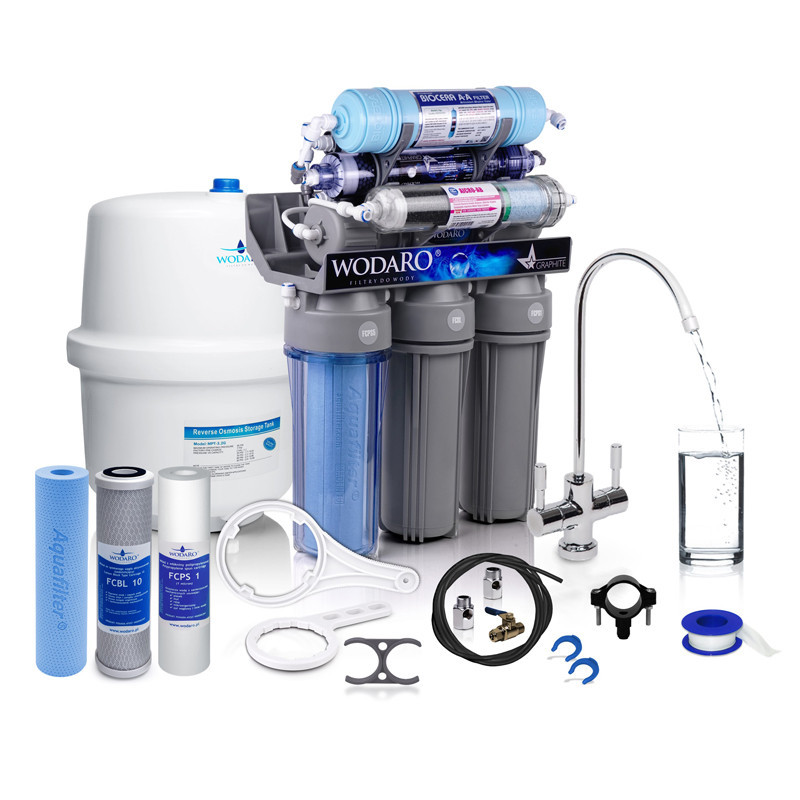

Kit contents

• RO9 wodaRO GRAPHITE filtration set
• 1 spare cartridge set (3 pieces)
• 12L gross water storage tank (approx. 8L working capacity)
• Water tank valve
• Four-way valve
• Restrictor / limiter (specially selected for the membrane)
• NEW LINE dual faucet
• 5 hoses in different colors, each 1.5 m
• 2 water connections in 1/2 inch and 3/8 inch sizes
• Brass valve for the water connection
• Wastewater drain clamp (mounted to the siphon)
• Wrench for pre-filter housings
• Wrench for membrane housing
• FILMTEC 100 GPD osmotic membrane
• Installation instructions
• Service instructions

Additional important information

• Weight: approx. 8KG
• 52cm
• 40cm
• 20cm
• dia. 23.5cm
• 36cm
