RO6 waterRO Graphite mineralizer water filter osmosis

Complete reverse osmosis system for everyday use

RO6 WodaRO GRAPHITE is a complete osmosis device that allows you to obtain water free from contaminants such as toxic and carcinogenic chemical compounds, heavy metals, bacteria, and viruses. The system’s effectiveness results from the use of 6-stage purification technology with the option of subsequent remineralization of the water.

The use of durable, proven components translates into many years of reliable, trouble-free operation. This is a solution for people who want to improve the quality of drinking water, reduce limescale in kitchen appliances, and use the supply of water stored in the pressure tank.

• 10-year warranty
• The set includes a full set of replacement cartridges for replacement after 6 months.
• The filters have a current PZH certificate.
• Each device comes with an installation manual and a service manual.
• The shipped set is pre-prepared for installation.

How the RO6 wodaRO Graphite osmotic filter works

The system is designed to improve water quality using the reverse osmosis method, one of the most advanced water purification methods. Such an osmotic filter removes 90-99.99% of all contaminants present in water: mechanical impurities, dissolved compounds, and microorganisms.

The system uses a high-quality FILMTEC USA 100 GPD membrane. Combined with pre-filtration, a taste- and odor-improving cartridge, and a final mineralizer, it creates a complete water filtration system for the kitchen and home.

Key benefits in everyday use

• You get crystal-clear, limescale-free water – always a clean kettle without deposits and better protection for your coffee machine.
• You get constant access to safe drinking water free from heavy metals, chlorine, pesticides, and microorganisms – such water can be consumed even by small children without the need for boiling.
• Thanks to the built-in mineralizer, you get essential elements needed for the proper functioning of the body, such as calcium, magnesium, potassium, and sodium.
• You improve the taste and odor of water, as well as the quality of prepared beverages and cooked meals.
• You get a reserve of water stored in the tank.
• You do not have to buy and carry bottles of water, while also reducing the amount of plastic waste.
• The WodaRO GRAPHITE filter is characterized by many years of reliable, trouble-free operation.

6 stages of water filtration

Water flowing through the RO6 wodaRO Graphite system undergoes six full stages of purification and treatment. Each stage is responsible for a different filtration range, making the entire system effective and comprehensive.

1. FCPS5-AB – a specialist polypropylene Aquafilter cartridge made using antibacterial BACinix technology. The cartridge can be used instead of the standard FCPS5 cartridge while maintaining full functionality. BACinix technology takes water filtration to a higher level: in addition to classic mechanical filtration, it has antibacterial and bacteriostatic effects on microorganisms present in the water. BACinix technology uses silver nanoparticles, a natural element with bactericidal properties.
2. FCBL10 – a carbon block cartridge that improves the taste and odor of water. It removes mechanical contaminants larger than 10 microns, chlorine and its toxic derivatives, eliminates lead and toxic heavy metals, and removes organic compounds, including bacteria.
3. FCPS1 – a mechanical foam cartridge made of polypropylene nonwoven fabric. It is responsible for removing larger, undissolved mechanical contaminants from water, such as rust, suspended solids, sand, or silt, down to 1 micron.
4. FILMTEC 100 – an osmotic membrane from an American company meeting the highest NSF standards. It is a set of semi-permeable thin-film membranes. Combined with polypropylene nonwoven and activated carbon filters, it allows you to obtain truly clean and healthy water. The osmotic membrane removes up to 99% of all compounds dissolved in water, as well as bacteria and viruses.
5. AV-GAC-L – an inline carbon cartridge filled with activated carbon media. The applied media clearly improves the taste and odor properties of the water, reducing chlorine and other organic compounds.
6. AV-MIN-L – an inline mineralizing cartridge. Osmotic filtration removes from 96 to 99% of all contaminants and minerals from water. The AV-MIN-L dolomite mineralizer replenishes minerals lost during the osmotic filtration process. As water flows through the mineralizer, it is enriched with elements essential for the human body, such as calcium, magnesium, potassium, and sodium.

System equipment and design

The RO6 wodaRO GRAPHITE water filter has been equipped with solutions that increase tightness, installation convenience, and everyday functionality.

• Double sealing system for the pre-filter housings and the osmotic membrane housing
• Branded filter cartridges
• Quick-connect fittings from one of the world’s best manufacturers – the ORGANIC brand
• Hoses in 5 colors, making it easier to identify connections during device installation
• Specially selected flow restrictor
• Built-in dolomite mineralizer
• Dual faucet enabling separate dispensing of clean post-osmosis water and clean mineralized, additionally ionized water

System components

Modern faucet

The modern-looking tap is equipped with two handles. Made of high-quality materials, it ensures comfort of use and reliability. Thanks to two separate knobs, it is possible to dispense either post-osmosis water or mineralized water. The faucet is easy to install and looks attractive with standard sinks and kitchen taps. This is a chrome-plated faucet by Aquafilter.

Water tank

Treated water is stored in a new-type 12-liter pressure tank. The working capacity is approximately 8 liters, so water is available on demand without having to wait for the full filtration process each time.

Operation and cartridge replacement

Proper system operation allows high filtration efficiency and good water quality to be maintained for a long time. The replacement schedule includes both pre-filter cartridges and final cartridges.

• Every 6 months of use: FCPS5-AB, FCBL10, FCPS1
• Every 12 months of use: AV-GAC-L, AV-MIN-L
• Estimated membrane lifespan: approx. 7-8 years

You receive a full set of cartridges for replacement after 6 months in the package.

* at a pressure of 6 bar and water temperature of 25°C

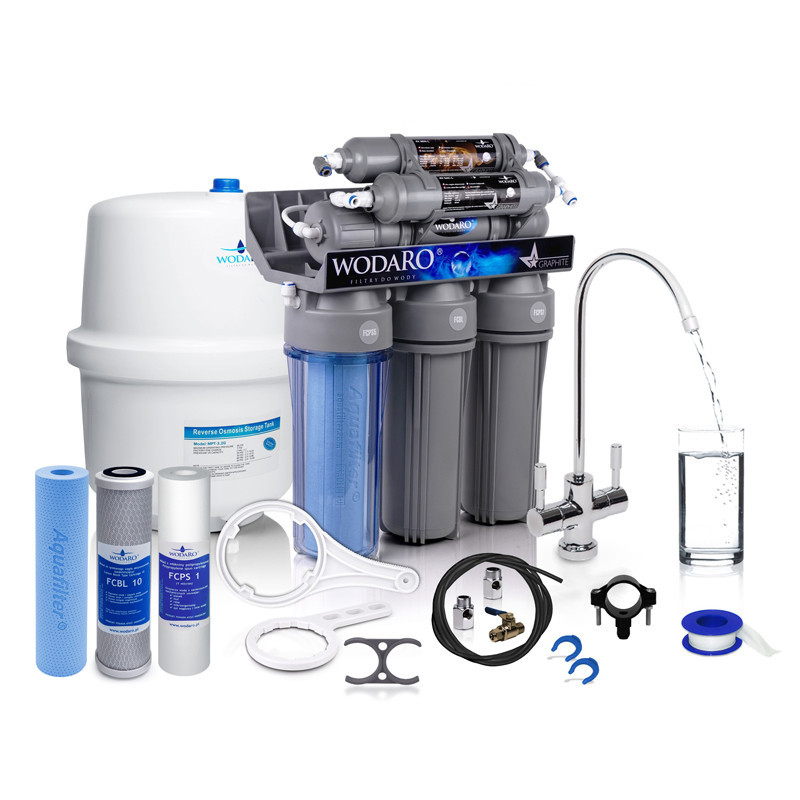

Set contents

• RO6 wodaRO GRAPHITE filtration set
• 1 spare cartridge set (3 pieces)
• 12 l gross water storage tank (approx. 8 l working capacity)
• Water tank valve
• Four-way valve
• Restrictor / limiter specially selected for the membrane
• NEW LINE dual faucet
• 5 hoses in different colors, each 1.5 m
• 2 water connections in sizes 1/2 inch and 3/8 inch
• Brass valve for water connection
• Wastewater drain clamp mounted to the siphon
• Wrench for pre-filter housings
• Wrench for membrane housing
• FILMTEC 100 GPD osmotic membrane
• Installation manual
• Service manual

Additional important information

• Weight: approx. 8KG
• 48cm
• 39cm
• 15.5cm
• dia. 23.5cm
• 36cm

Technical specifications
