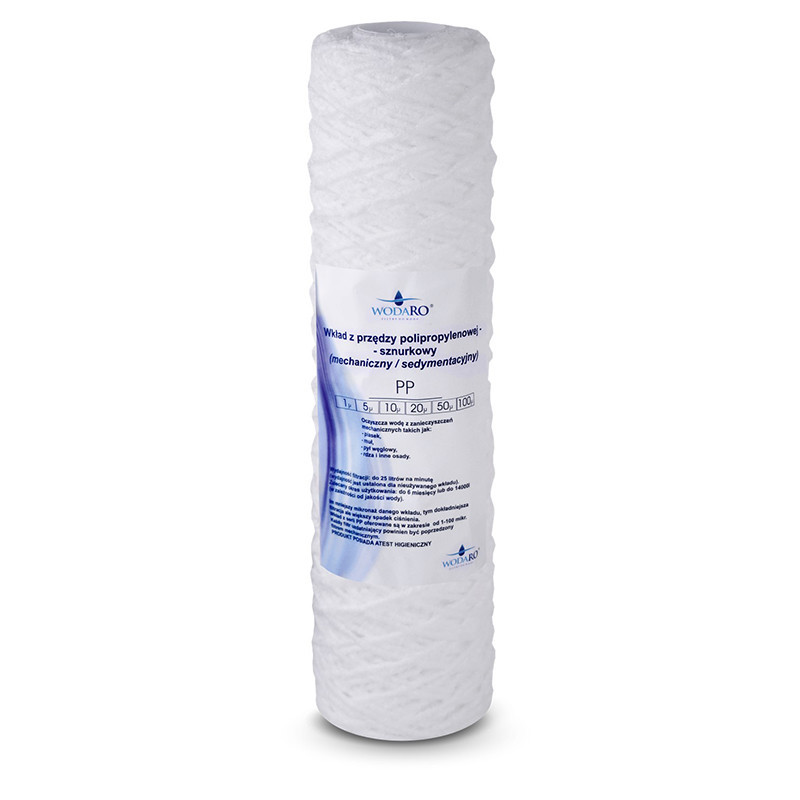

PP20 waterRO string filter 20 micron

Effective pre-filtration for many applications

The WodaRO sediment cartridge has been designed for precise mechanical filtration. Its purpose is to retain solid contaminants present in water before it reaches further treatment stages or end devices.

It is a practical solution wherever protecting fittings, the water system, heating devices, and household appliances from deposits and particles that may cause accelerated wear of working components is important.

Cartridge construction and operating principle

The cartridge is made of pure polypropylene fiber wound around a filter core. This design is not accidental — it ensures an increase in filter density toward its core, which improves performance and makes better use of the entire filtration structure.

The density gradient means that larger contaminants are retained in the outer layer of the cartridge, while finer particles are captured deeper inside the filtration material. As a result, the filter operates more efficiently, and its service life may be longer than that of simpler solutions with a uniform structure.

Where can the WodaRO PP20 cartridge be used?

The PP20 model is intended for installation in standard 10-inch inline filters as well as in under-sink and osmotic systems.

• standard 10" inline housings
• under-sink filters
• osmotic systems
• reverse osmosis sets
• any water filtration system requiring mechanical pre-filtration

The cartridge can operate with both cold and hot water, within the temperature range specified in the technical specification.

What contaminants does it remove?

A filtration accuracy of 20 microns effectively helps reduce the presence of typical mechanical contaminants found in tap and utility water.

• sand
• silt
• rust
• other mechanical impurities of similar size

Removing this type of sediment is particularly important as the first stage of protection for subsequent cartridges and installation components. In practice, this means better operating conditions for household appliances, fittings, heaters, and water treatment systems.

Key advantages of the WodaRO string cartridge

• the cartridge's density gradient enables larger contaminant particles to be retained in the outer filter layer and smaller ones inside, which extends cartridge life
• minimal pressure drop at high flow rates
• the cartridge has PZH hygiene approvals
• made of materials approved by NSF and FDA
• operating temperature from 1°C to 52°C
• high rigidity and durability
• service life up to 6 months

Operation and replacement

The cartridge is a consumable component and should be replaced regularly to maintain effective filtration and proper water flow. The expected service life is up to 6 months or up to 14,000 liters of filtered water.

Actual durability depends on the degree of contamination in the feed water. The more mechanical sediment present in the incoming water, the sooner the cartridge may require replacement.

Technical specification
