Flow Water Filter 3/4" Whole House Body + 2x PP20 USTM String Cartridge

3/4" in-line filter for whole-house system protection

This is a reliable solution for mechanical filtration of cold utility water. The 10" in-line filter with a 3/4" connection helps limit the passage of solid contaminants into the plumbing system, taps, valves, and household appliances. As a result, everyday water use becomes safer for home fixtures and devices connected to the water network.

The model works both as a standalone flow filter and as part of a larger water purification setup. It can operate before expensive appliances or as an initial protective stage in a home filtration system.

Versatile application

• Ideal for installation on the pipe supplying cold water to an apartment or before expensive household appliances.

• Compatible with a wide range of mechanical, specialist, and carbon cartridges available on the market.

• The set includes 2 string cartridges with a filtration accuracy of 20M.

Thanks to the 10" standard, the housing offers great flexibility for expanding the installation. In practice, this means the ability to match the right filter cartridge to specific user needs, from mechanical filtration to more specialized applications.

How mechanical filtration works with the PP20 string cartridge

The string cartridge, also known as a nonwoven cartridge, is one of the most popular solutions used in mechanical water filtration. Its operation is based on retaining contaminants through a dense weave of fibers, so water cleaned of larger solid particles is passed on to the next part of the installation.

• Retains all contaminants up to 20 microns in size.

• Features a gradient structure for more precise and efficient filtration.

• The USTM cartridge is characterized by a denser weave of string fibers compared with other cartridges available on the market.

• It is ideal for in-line filters used for whole-house or apartment installations, as well as kitchen water filters under the sink.

• Recommended for protecting water systems, household appliances, and fixtures.

• Has PZH approval.

• Made in Poland.

This design means contaminants are captured gradually, while flow remains stable for a longer operating time. This is especially important where tap water or well water carries sand, rust, or suspended particles that can accelerate fixture wear.

Increased filtration efficiency

By changing the density and type of fibers along the cartridge, it is possible to retain various types of contaminants more effectively. Fibers of varying density can efficiently capture particles of different sizes, which translates into better quality purified water.

Longer service life

The gradient structure of the string cartridge promotes longer operation before clogging. This means less frequent cartridge replacement, more convenient use, and lower maintenance costs for the entire water filtration system.

Durable housing construction

• Two-piece 10" in-line housing, WodaRO® brand, providing reliable protection for your water system.

• Consists of a transparent sump and a head with a 3/4" brass thread.

The transparent sump allows quick assessment of the cartridge contamination level without removing the housing. The head with a brass thread increases the durability of the connection and makes safe operation on the home installation easier.

Double sealing system

• Equipped with two sealing O-rings, ensuring maximum leak tightness of the product.

• The gasket also helps maintain pressure inside the in-line housing, preventing air from entering the system.

Double sealing is an important part of safe operation of the flow filter. A properly sealed housing supports stable operation of the entire system and reduces the risk of leaks.

Reinforced housing version

• Durable, high-quality housing guarantees safety and stable use.

• The transparent sump makes it easy to assess the level of cartridge contamination.

Air vent and stable system operation

The housing features an air vent that allows pressure inside the housing to equalize with atmospheric pressure. This solution helps eliminate the risk of damage to filtration or sealing components.

Thanks to the air vent, water filters and in-line housings can operate more efficiently, regardless of operating conditions and pressure in the water system, which translates into improved water quality and longer service life of the equipment.

Flexible installation and expansion options

The filter can be installed individually or connected in series, allowing the setup to be flexibly adapted to installation requirements. This is a useful solution when mechanical filtration is to serve as standalone protection or as the first stage before further water treatment.

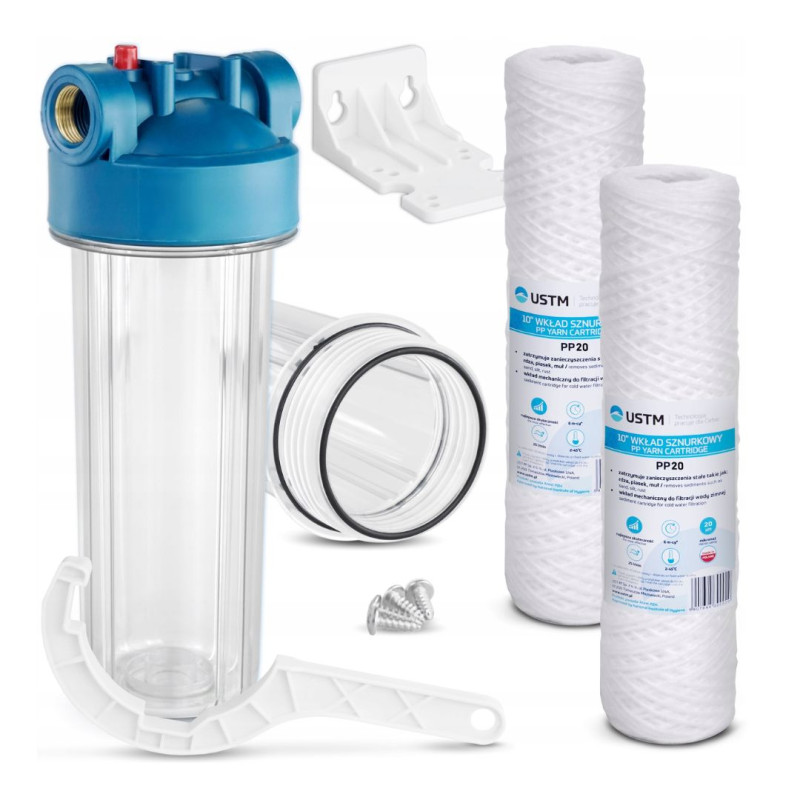

Set contents

• 10" in-line housing with transparent sump,

• head with 3/4" brass thread,

• air vent,

• double sealing – 2 O-rings,

• mounting wrench,

• mounting plate,

• 2 x PP20 USTM filter cartridge (mechanical, string).

The set includes gaskets and a mounting wrench to make installation and use easier. The complete kit has been prepared to enable quick and correct installation of the filter in a home plumbing system.

Additional important information

• number of pieces in the set: 2
