FHPR12-B1-AQ Aquafilter pipe housing 1/2"

Durable inline housing for cold water

The FHPR12-B1-AQ model is a two-piece inline housing by Aquafilter, designed to work with 10-inch cartridges. The construction consists of a transparent sump and a head with a 1/2" brass thread, ensuring convenient connection to the installation and good connection durability.

The housing is equipped with two sealing O-rings: a face O-ring and one under the head. This solution increases system tightness and supports safe operation during everyday cold water filtration.

Convenient monitoring of filter cartridge operation

The transparent sump makes it easier to continuously assess the contamination level of the cartridge. This is a practical solution that allows you to check when the filter cartridge needs replacing without disassembly. As a result, housing maintenance is simpler, and the water filtration system can operate more predictably.

The housing also features a pressure release valve, which allows the air accumulated in the filter to be released after cartridge replacement. This makes restarting the housing easier and improves servicing comfort.

Applications and installation options

FHPR12-B1-AQ can operate as a single water filter or as part of a series-connected installation. This makes it possible to match the configuration to the user's needs and the type of cartridges used.

The housing is installed on the cold water supply pipe to the apartment, especially in situations of moderate water demand. It can also be installed in front of expensive household appliances such as a washing machine or dishwasher, helping protect them against the build-up of various types of contaminants.

This solution works well wherever pre-filtration, protection of fittings and appliances, and the possibility of easy expansion of the installation with additional water treatment stages are important.

Compatibility with 10-inch cartridges

The housing works with a wide range of 10" cartridges available on the market. This includes mechanical, specialist, and carbon cartridges, allowing the right filtration variant to be selected for a specific application.

Supported cartridge types

• mechanical cartridges,
• specialist cartridges,
• carbon cartridges,
• softening cartridges,
• iron removal cartridges,
• antibacterial cartridges.

This compatibility means the housing can serve as a universal enclosure for many filtration configurations, both as a standalone filtration point and as part of a more advanced system.

Tightness and safe operation

The two-piece design, two sealing O-rings, and air release valve support convenient and stable system operation. The maximum operating pressure is 6 bar, so the housing is intended for standard cold water filtration applications in domestic installations.

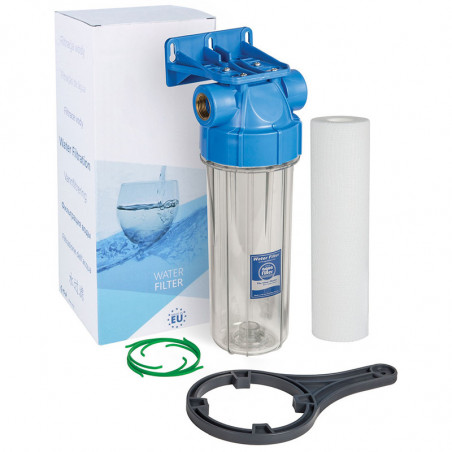

Package contents

The set includes all the components listed below:

• FHPR12-B1-AQ inline housing
• Two sealing O-rings
• FCPS5 polypropylene foam filter cartridge
• Bacteriostatic centering disc
• Wrench
• Mounting bracket

Why choose Aquafilter FHPR12-B1-AQ

• 10-inch format compatible with popular filter cartridges,
• transparent sump for quick monitoring of cartridge contamination,
• head with 1/2" brass thread,
• two O-rings for enhanced tightness,
• pressure release valve making operation easier after cartridge replacement,
• single or series installation options,
• application on the cold water supply line and in front of household appliances,
• broad compatibility with mechanical, specialist, and carbon cartridges.

Technical specifications
