FHPR12-B1-AQ Aquafilter корпус трубки 1/2"

Durable inline housing for cold water

The FHPR12-B1-AQ model is a two-piece inline housing by Aquafilter, designed to work with 10-inch cartridges. The construction consists of a transparent sump and a head with a 1/2" brass thread, which ensures convenient connection to the installation and good connection durability.

The housing is equipped with two sealing O-rings: a face O-ring and one under the head. This solution increases system tightness and supports safe operation during everyday cold water filtration.

Convenient monitoring of filter cartridge operation

The transparent sump makes it easier to continuously assess the contamination level of the cartridge. This is a practical solution that allows you to check when the filter cartridge needs to be replaced without disassembly. Thanks to this, housing maintenance is simpler, and the water filtration system can operate more predictably.

The housing also features an air release valve, which allows the air accumulated in the filter to be released after cartridge replacement. This makes restarting the housing easier and improves service convenience.

Applications and installation options

FHPR12-B1-AQ can operate as a single water filter or as part of a series-connected installation. This allows the configuration to be matched to the user's needs and the type of cartridges used.

The housing is installed on the pipe supplying cold water to the apartment, especially in situations of moderate water demand. It can also be installed before expensive household appliances such as a washing machine or dishwasher, helping to protect them against the buildup of various types of contaminants.

This solution works well wherever pre-filtration, protection of fittings and appliances, and the possibility of easy system expansion with additional stages of water treatment are important.

Compatibility with 10-inch cartridges

The housing is compatible with a wide range of 10" cartridges available on the market. This includes mechanical, specialist, and carbon cartridges, which makes it possible to select the appropriate filtration variant for a specific application.

Supported cartridge types

• mechanical cartridges,
• specialist cartridges,
• carbon cartridges,
• softening cartridges,
• iron removal cartridges,
• antibacterial cartridges.

Such compatibility means that the housing can serve as a universal enclosure for many filtration configurations, both as an independent filtration point and as part of a more advanced system.

Tightness and safe operation

The two-piece construction, two sealing O-rings, and air vent support convenient and stable system operation. The maximum operating pressure is 6 bar, so the housing is intended for standard applications related to cold water filtration in domestic installations.

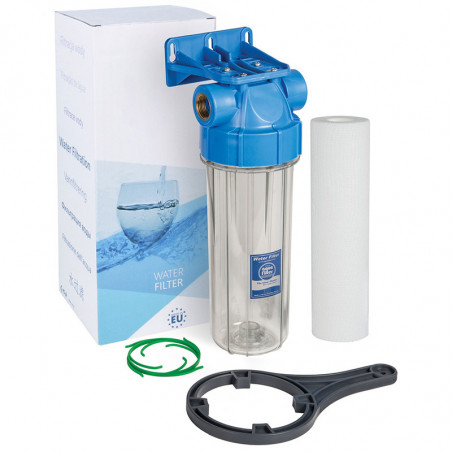

Set contents

The package includes all the elements listed below:

• FHPR12-B1-AQ inline housing
• Two sealing O-rings
• FCPS5 polypropylene foam filter cartridge
• Bacteriostatic centering disc
• Wrench
• Mounting bracket

Why choose Aquafilter FHPR12-B1-AQ

• 10-inch format compatible with popular filter cartridges,
• transparent sump for quick inspection of cartridge contamination,
• head with 1/2" brass thread,
• two O-rings for improved tightness,
• air release valve making operation easier after cartridge replacement,
• possibility of single or series installation,
• application on the cold water supply and before household appliances,
• broad compatibility with mechanical, specialist, and carbon cartridges.
