Flow Water Filter 3/4" Whole House Mechanical String Cartridge PP20 USTM

Flow Water Filter 3/4" for the Whole House 10" Mechanical String Cartridge 20M

✔️ The set includes seals and a mounting key to facilitate installation and use.

✔️ The set includes FILTER CARTRIDGE PP20 (mechanical, string)

✅ Pipe Water Filter WodaRO

This is a reliable solution that not only provides clean water but also protects your household appliances from contaminants. With its robust construction and versatility of use, it is the ideal choice for anyone who cares about water quality in their home.

✅ Versatile Application

• Ideal for installation on the pipe supplying cold water to the apartment or in front of expensive household appliances.

• Compatible with a wide range of mechanical, specialized, and carbon cartridges available on the market.

• The set includes a string cartridge with a filtration accuracy of 20M

✅ Effective Mechanical Filtration

The string cartridge, also known as a non-woven cartridge, is one of the popular types of cartridges used in water filtration. It operates on the principle of mechanical filtration, where contaminants are trapped by the dense weave of string fibers.

✔️ Traps all contaminants up to 20 microns

✔️ Features a gradient structure, ensuring more precise and efficient filtration

✔️ The USTM cartridge has a higher density of string fiber weave compared to other cartridges available on the market

✔️ Works great in pipe filters used for the whole house or apartment and kitchen water filters under the sink.

✔️ Recommended for protecting water installations, household appliances, and fittings.

✔️ Has a PZH certificate

✔️ Manufactured in Poland

✅ Increased Filtration Efficiency

By changing the density and type of fibers along the cartridge, it is possible to better retain various types of contaminants. Fibers of different densities can effectively trap contaminants of varying sizes, leading to better quality of purified water.

✅ Longer Service Life

Thanks to the gradient structure, string cartridges can have a longer service life before clogging, resulting in less frequent replacements and lower maintenance costs for the filtration system.

✅ Durable Construction

• Two-part pipe body with a diameter of 10", brand WodaRO®, providing reliable protection for your water installation.

• Consists of a transparent cover and a head with a 3/4" brass thread.

✅ Double Sealing System

• Equipped with two sealing O-rings ensuring maximum tightness of the product.

• The seal also helps maintain pressure inside the pipe body, preventing air from entering the system

✅ Reinforced Version

• Durable, high-quality housing ensuring safety and stability during use.

• The transparent cover allows for easy assessment of the cartridge's contamination state.

✅ The body has a vent

• The vent allows for balancing the pressure inside the body with atmospheric pressure, eliminating the risk of damage to filtration or sealing elements.

• With the presence of a vent, water filters and pipe bodies can operate more efficiently, regardless of working conditions and pressure in the water installation, which improves water quality and extends the service life of devices.

✅ Exceptional Functionality

• Can be installed individually or connected in series, providing flexible adaptation to user needs.

✅ Easy Installation

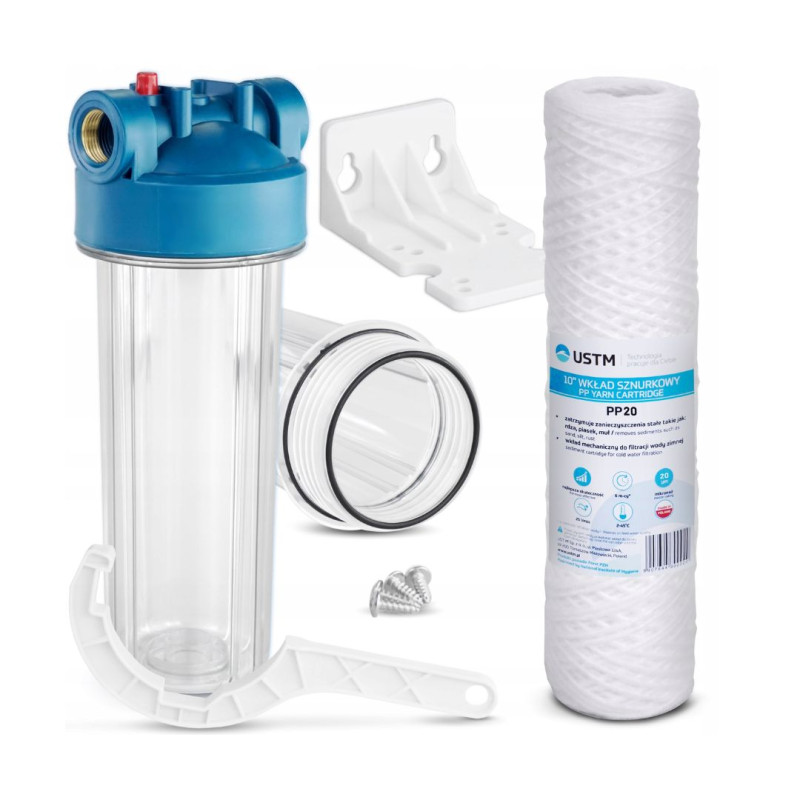

• The set includes everything you need for quick and proper installation, including the pipe body, sealing O-rings, a key, and a mounting plate.

✅ Technical Specifications

• Connection Diameter: 3/4"

• Maximum Working Pressure: 6 bar

• Maximum Working Temperature: 2-45 degrees Celsius

• Standard of Cartridges: 10"

✅ Cartridge Included: YES ✔️

• cartridge type: Mechanical, String

• number of pieces in the set: 1

• filter height: 25 cm

• diameter: 5.5 cm

• lifespan: up to 14000 L/ up to 6 months*

• flow rate: up to 25 L/min

• filtration accuracy: 20M
