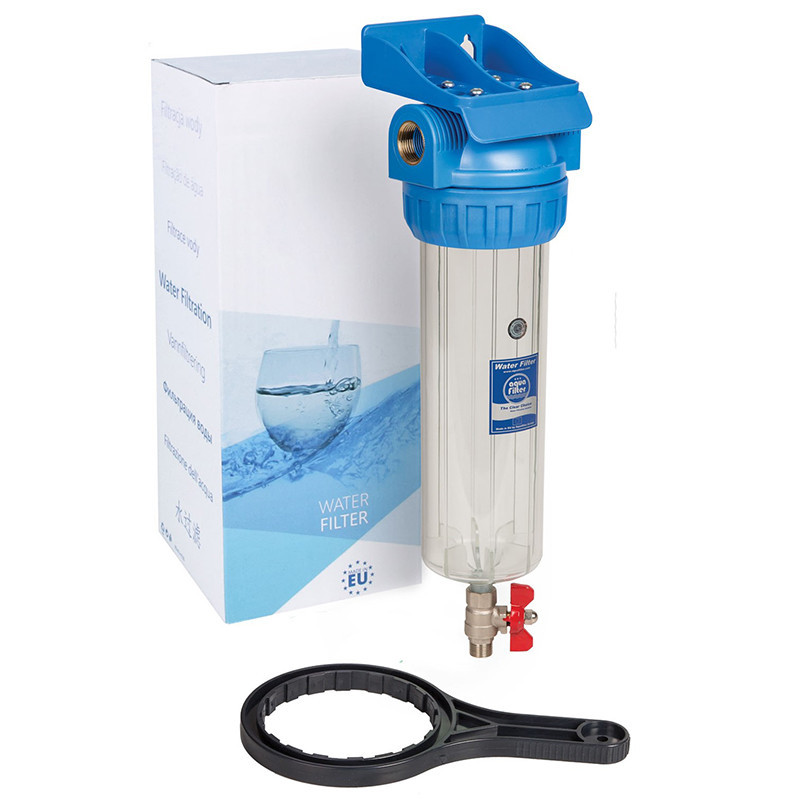

FHPR1-3V_R Aquafilter housing with 1" valve filter
FHPR1-3V_R
Rating
Aquafilter FHPR1-3V_R to 10" pipe housing for cold water filtration. The three-element construction facilitates handling in places with limited height, as the cap is unscrewed for cartridge replacement instead of the entire housing. The drain valve at the bottom of the housing allows for cartridge flushing under pressure, and the air vent valve helps remove air after servicing. Brass connections 1".
Description
Aquafilter FHPR1-3V_R is a 10-inch in-line housing for cold water, designed as a durable water filter for residential and commercial installations. The three-piece design makes servicing easier in areas with limited height, the drain valve allows convenient flushing of the filter cartridge, and the air vent improves restart after cartridge replacement. It is a practical installation component supporting water treatment and the expansion of any water filtration system with a 1-inch connection.
Three-piece 10" housing designed for convenient operation
The Aquafilter FHPR1-3V_R model is a 10" in-line housing that performs well wherever not only effective filtration but also easy service access matters. The three-piece design used here is especially useful in locations with limited installation space.
In traditional housings, during service the sump is unscrewed downward from the head, which requires more free space below the filter. In this solution, operation looks different: the nut is unscrewed, so the total height required for use is smaller. This is an important advantage when installing in tight cabinets, technical recesses, and when expanding an existing water installation.
Drain valve and air vent - solutions that genuinely make operation easier
A drain valve is located at the bottom of the sump. Its purpose is to enable flushing of the cartridge inside the housing using pressure from the water system. This is a practical solution that improves everyday convenience and simplifies maintenance tasks.
If a mesh or pleated cartridge is installed inside the housing, accumulated contaminants can be flushed out under pressure into a placed container or through a hose connected to the drain valve. This allows cleaning to be carried out efficiently and without the need to dismantle the entire assembly each time.
The housing is also equipped with an air vent valve, which allows air accumulated in the filter to be removed after cartridge replacement. This makes restarting the installation easier and helps restore proper system operation after service.
What applications is this housing suitable for?
Aquafilter FHPR1-3V_R is intended for cold water filtration. The housing can be part of preliminary water treatment in a house, apartment, commercial premises, or technical installations, wherever a suitable 10" cartridge is used.
This is a universal housing that can operate as part of a larger filtration system. It works well as a mechanical stage protecting downstream devices, as well as a component in an installation cooperating with more advanced solutions such as a reverse osmosis filter, RO filter, reverse osmosis unit, or a complete reverse osmosis system.
Solid construction and 1" connections
The housing is equipped with high-quality 1" brass threads. Such connections support secure installation in a water system and are well suited to applications requiring durable joints. The entire unit is designed for use with cold water at pressure up to 6 bar.
Housing construction - complete list of structural components
The housing consists of three elements:
- filter head, screwed onto the cold water pipe,
- filter sump, in which the filter cartridge is placed,
- nut (flange) for tightening the sump to the head.
Set contents
The set includes all components listed below:
- FHPR1-3V filter housing,
- mounting plate for attaching the filter to the wall,
- screws for fastening the filter to the plate,
- wrench for unscrewing the housing,
- drain valve,
- sealing tape.
Operation and practical usage tips
The housing is designed to work with standard 10" filter cartridges. Depending on the cartridge used, it can perform a mechanical filtration function or serve as part of a more advanced water purification system.
The three-piece design facilitates access to the inside of the housing during cartridge replacement or cleaning. In turn, the drain valve allows convenient flushing of selected cartridge types, especially mesh and pleated ones, without the need for full disassembly. After service is completed, the air vent allows air to be removed from inside the filter.
The housing is intended for cold water and operation at pressure up to 6 bar. After replacing the cartridge, it is advisable to vent the housing, and when flushing through the drain valve, direct the water into a placed container or a connected hose. When installing in a system, proper tightness of threaded connections must be maintained.
Key user benefits
- three-piece design convenient for places with limited installation height,
- easier servicing thanks to the unscrewed nut instead of the classic downward unscrewing of the sump,
- drain valve enabling cartridge flushing under system pressure,
- practical removal of contaminants from mesh and pleated cartridges,
- air vent valve facilitating filter startup after cartridge replacement,
- 1" brass connections supporting durable installation,
- universal use as a component of a residential or commercial water filtration system.
Technical specifications
| Parameter | Value |
|---|---|
| Model | FHPR1-3V_R |
| Brand | Aquafilter |
| Product type | In-line housing / filter housing |
| Housing size | 10" |
| Application | Cold water filtration |
| Maximum operating pressure | Up to 6 bar |
| Connection / thread material | Brass |
| Construction | Three-piece |
| Additional element | Drain valve at the bottom of the sump |
| Compatibility | 10" filter cartridges |
FAQ
What water is the Aquafilter FHPR1-3V_R housing intended for?
The FHPR1-3V_R model is intended for cold water filtration. It should not be used for hot water.
What are the benefits of the three-piece housing design?
This design makes the filter easier to handle in places with limited height. During service, the nut is unscrewed rather than the entire sump being unscrewed downward from the head, as in many standard housings.
What is the drain valve at the bottom of the sump for?
The drain valve allows the cartridge to be flushed under pressure from the water system. This is especially useful for mesh and pleated cartridges, from which accumulated contaminants can be rinsed away.
How should contaminants be removed during cartridge flushing?
Contaminants can be flushed into a placed container or discharged through a hose connected to the drain valve. This is a convenient way to simplify maintenance.
Why is an air vent used in this housing?
The air vent valve allows air accumulated in the filter to be released after cartridge replacement. This makes it easier to restart the housing and stabilize system operation.
What connections does this housing have?
The housing has 1-inch brass threads. This solution ensures a durable and secure connection to the water system.
What components are included in the set?
The set includes: FHPR1-3V filter housing, mounting plate for attaching the filter to the wall, screws for fastening the filter to the plate, wrench for unscrewing the housing, drain valve, and sealing tape.
Can this housing be part of a larger water filtration system?
Yes. The housing can operate as a standalone filtration stage or as part of a larger system, for example as pre-filtration before other water treatment devices.
Product Details
FHPR1-3V_R
Data sheet
- Typ obudowy
- 10"
- Temperatura pracy
- 2°C - 42°C
- Średnica gwintu
- 1" GW
- Ciśnienie wody
- do 6 bar
