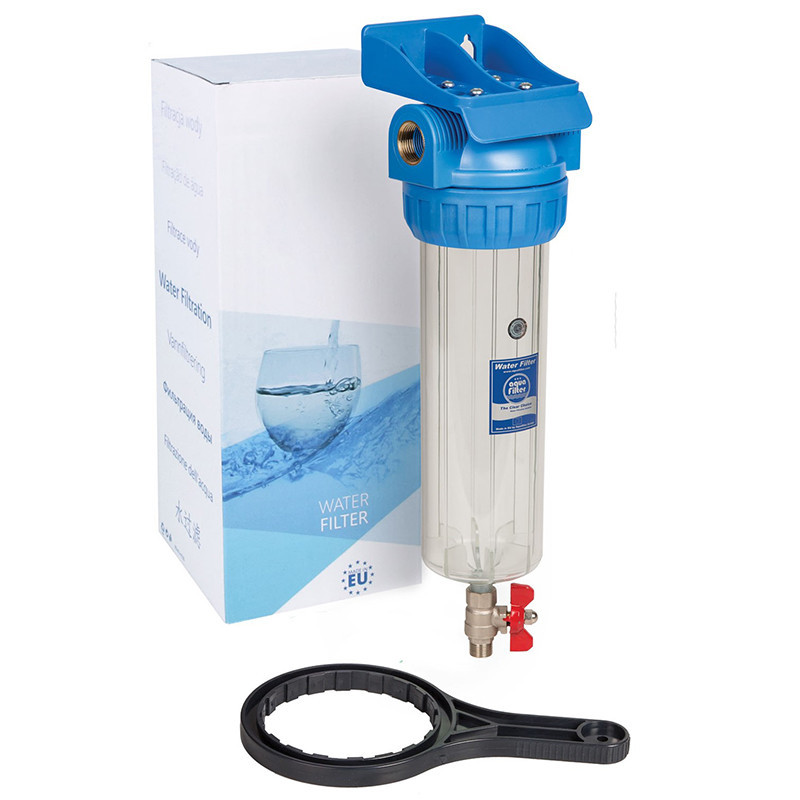

FHPR34-3V_R Aquafilter housing with 3/4" valve filter

10" three-piece housing designed for convenient servicing

The Aquafilter FHPR34-3V_R model is a 10" inline filter housing distinguished by its three-part design. This solution is especially useful in places where the total height required for filter operation matters.

In traditional housings, additional space below the filter is needed when unscrewing the sump. Here, servicing works differently: instead of unscrewing the sump downward from the head, the nut is unscrewed. This makes the housing easier to install and service where the amount of space above and below the installation is limited.

For cold water and everyday operation in the installation

The housing is intended for cold water filtration. The housing is designed to operate at pressure up to 6 bar, making it well suited as part of a household water installation and as a base for a selected filter cartridge.

The 3/4" brass threaded connections increase connection durability and make integration with the installation easier. This is a solution for users who expect a solid housing for regular operation and convenient servicing.

Drain valve and air vent - practical conveniences in use

A drain valve is installed at the bottom of the sump, allowing the cartridge inside the housing to be flushed under pressure from the water installation. This is a very useful function during routine system maintenance.

If a mesh or pleated cartridge is used in the housing, the contaminants trapped by it can be flushed under pressure into a placed container or discharged through a hose connected to the drain valve. This solution improves operation and makes it easier to remove accumulated sediment.

The housing is also equipped with an air vent valve. Its purpose is to release the air collected in the filter after cartridge replacement, which makes system restart easier and improves ease of use.

Housing construction

The housing structure consists of three elements that together form an easy-to-service filtration set:

• filter head, screwed onto the cold water pipe,
• filter sump, in which the filter cartridge is placed,
• nut (flange) for tightening the sump to the head.

What distinguishes this Aquafilter inline housing

• 10" format compatible with popular filter cartridges,
• three-piece design facilitating installation and servicing in places with limited height,
• drain valve for flushing the cartridge under pressure,
• air vent helpful after cartridge replacement,
• 3/4" brass connections increasing connection durability,
• intended for cold water filtration,
• can be used as a standalone water filter or part of a larger treatment system.

Application

The FHPR34-3V_R housing can serve as a single filtration stage or as part of an expanded system. It works well wherever easy service access and convenient flushing of selected cartridges are needed.

It is a practical choice for building a pre-filtration installation that protects further stages of water treatment. The housing can work with a properly selected filter cartridge and can serve as a stage preceding more advanced solutions such as an osmotic filter, reverse osmosis, or a complete reverse osmosis system.

Set contents

The set includes:

• FHPR34-3V filter housing,
• mounting plate for attaching the filter to the wall,
• screws for fastening the filter to the plate,
• housing opening wrench,
• drain valve,
• sealing tape.
