RO7 AQUA VITA WATER FILTER AIFIR200

It is a complete osmotic device that allows you to obtain water free from contaminants such as: toxic and carcinogenic chemical compounds, heavy metals, bacteria, and viruses. The excellence of the system lies in the use of 7-stage water treatment technology, the ability to demineralize it, and the use of the AIFIR200 ionizing cartridge.

IN THE SET:

• modern double spout allowing separate dispensing of pure water after osmosis and pure mineralized water

• water storage tank 12L gross (approx. 8L working capacity)

• installation parts and accessories

• detailed assembly instructions and service execution instructions.

Filters have a current PZH certificate.

The sent set is pre-prepared for assembly

The system is designed to improve water quality by reverse osmosis method, one of the most advanced water purification methods. Removes 90-98% of all water contaminants: mechanical, dissolved compounds, and microorganisms.

The system uses a membrane 75 GPD FILMTEC.

By using the reverse osmosis system:

• You will obtain crystal clear water, free from scale, heavy metals, chlorine, pesticides, microorganisms

• You will have a constant supply of clean mineralized water suitable for drinking

• You do not need to buy and carry water bottles - thus reducing plastic waste production.

• You will improve the taste and smell of water, brewed beverages, and cooked dishes

• You will obtain safe drinking water

• You will have a supply of water that is stored in the tank

Water flowing through this system undergoes 7 stages of filtration:

1. FCPS20 – Foam mechanical cartridge made of polypropylene nonwoven fabric removes larger undissolved mechanical impurities in water such as rust, suspensions, sand, silt, etc. up to 20 microns. (Lifespan - 6 months)

2. FCBL10 – Block carbon cartridges improve the taste and smell of water, remove mechanical impurities larger than 10 microns, remove chlorine and its toxic derivatives, eliminate lead and toxic heavy metals, remove organic compounds (including bacteria). (Lifespan - 6 months)

3. FCPS5- Foam mechanical cartridge made of polypropylene nonwoven fabric removes larger undissolved mechanical impurities in water such as rust, suspensions, sand, silt, etc. up to 5 microns. (Lifespan - 6 months)

4. FILMTEC 75 – osmotic membrane from an American company meeting the highest NSF standards. It is a set of semi-permeable thin-film membranes. Combined with polypropylene nonwoven filters and activated carbon, it allows you to obtain truly pure and healthy water. The osmotic membrane removes up to 99% of all dissolved compounds in water, as well as bacteria and viruses. (Lifespan - 7-8 years)

5. AV-GAC-L– linear carbon cartridge filled with activated carbon media. The activated carbon media contained in the cartridge significantly improves the taste and smell of water, reducing chlorine and other organic compounds.

6. AV-MIN-L- linear mineralizer cartridge. Osmotic filtration removes from water 96 – 99% of all impurities and minerals. The dolomite mineralizer AV-MIN-L enriches the water with minerals lost during osmotic filtration. Water flowing through the mineralizer is enriched with elements essential for the human body, such as: calcium, magnesium, potassium, sodium. (Lifespan - 12 months)

7. AIFIR200 - linear ionizing cartridge (alkalizing). AIFIR200 (Aquafilter) enriches water with mineral elements, providing the body with large amounts of: calcium, magnesium, sodium, potassium, selenium, and other trace elements, necessary for the proper functioning of the body. The cartridge also contains bioceramic media, which alkalizes the water, lowers ORP levels, and raises pH. (Lifespan - 12 months)

AIFIR200 AQUAFILTER

REGULATES BODY pH, AFFECTS ITS DETOXIFICATION

• Compliance with FDA CFR Title 21 - Alkalizes water (raises pH),

• Lowers ORP to -100 mV

• Enriches water with minerals lost during osmotic filtration: calcium, iron, zinc, magnesium, selenium, sodium, and potassium

• BACINIX™ technology based on nanosilver provides antimicrobial protection

• Delays the effects of aging by effectively sweeping free radicals

• Helps in faster dissolution of body toxins and their quicker excretion

• Provides a greater dose of energy, thus improving metabolic processes

• Positively affects the condition and health of the body

• Beneficial effect on biochemical processes of the body

• Improves the taste and smell of water

• Produced in the EU using the highest quality components

THE SYSTEM EASILY FITS UNDER THE SINK

MODERN DOUBLE SPOUT AQUAFILTER NEW LINE

• A faucet in a modern style with two taps. Made from the highest quality materials, ensuring comfort of use and reliability. With two taps, it is possible to dispense osmosis or mineralized water.

• Very easy to install, elegantly presents itself with any standard spouts.

• Chromed faucet from Aquafilter is the best product in its category.

12-LITER TANK FOR TREATED WATER

• Treated water is stored in a 12-liter (new model) pressure tank, (about 8 liters) from which it is dispensed on demand.

THE BEST WATER QUALITY IN YOUR KITCHEN

WATER FILTER RO7 AQUA VITA AIFIR200 HAS:

• Double sealing system for pre-filter housings and osmosis membrane housing

• PZH Certificate

• Branded filter cartridges

• Quick connectors from one of the best manufacturers in the world.

• Hoses in 5 colors - this facilitates orientation during device installation

• Specially selected flow restrictor

• built-in dolomite mineralizer AV-Min-L

• built-in ionizing cartridge AIFIR200

• dual spout from AQUAFILTER allowing for separate dispensing of water purified by osmosis and clean mineralized water with elevated pH.

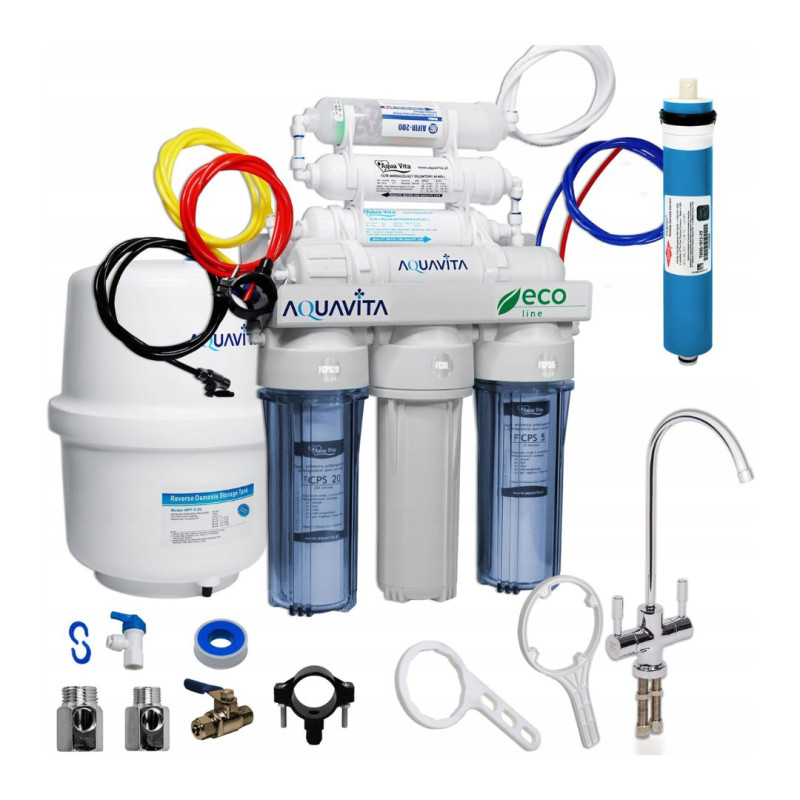

• Filtering set RO7 AQUA VITA AIFIR200

• Water storage tank 12L gross (approx. 8L working capacity)

• Valve for the water tank

• Four-way valve

• Restrictor / limiter (specifically selected for the membrane)

• Spout dual AQUAFILTER NEW LINE

• 5 hoses in different colors, each 1.5m long

• 2 connections for water in size 1/2 inch and 3/8 inch

• Brass valve for water connection

• Clamp for draining wastewater (mounted to the siphon)

• Key for pre-filter housings

• Osmotic membrane FILMTEC 75 GPD

• Installation manual

• Service manual

The sent set is pre-prepared for installation.

TECHNICAL DATA:

• Maximum performance: 280L/day*

• Weight: approx. 8KG

• Minimum/maximum working pressure: 2.5 bar - 6 bar

• Ratio of pure water to rejected water: 1:2 - 1:8 depending on pressure and water temperature, average 1:4

• Operating temperature: 2-42 °C

• Transparent outer housings

• Middle housing in white color

*at 6 bar pressure and water temperature of 25°C

System dimensions:

• 45cm

• 39.5cm

• depth 15.5cm

Height can be adjusted by rotating the linear cartridges.

In the case of a lower cabinet, the system can be lowered by rotating the filters, then the height is 42 cm.

Tank dimensions:

• diameter 23.5cm

• 36cm
