RO5 waterRO Eco water filter osmosis

It is a complete osmotic device that allows you to obtain water free from contaminants such as: toxic and carcinogenic chemical compounds, heavy metals, bacteria, and viruses. The excellence of the system lies in the application of 5-stage water treatment technology.

• The filters have a current PZH certificate.
• The sent set is pre-prepared for installation.
• The set includes a POLISH, detailed instruction manual.

Included in the set:

• a complete set of spare cartridges for 2 years of device operation
• a modern faucet allowing separate dispensing of purified water after osmosis
• a water storage tank of 12L gross (approx. 8L working capacity)
• installation parts and accessories
• detailed installation instructions and service instructions.

The system is designed to improve water quality using reverse osmosis, one of the most advanced water purification methods. It removes 90-98% of all water contaminants: mechanical, dissolved compounds, and microorganisms. The system uses a 75 GPD membrane from VONTRON.

Thanks to the use of the waterRO ECO system:

• You will obtain crystal clear water, free from scale - always a clean kettle without deposits, protecting your coffee machine.
• You will have constant access to safe drinking water free from heavy metals, chlorine, pesticides, and microorganisms - such water can be consumed even by small children without the need for boiling.
• You will improve the taste and smell of water, brewed beverages, and cooked dishes.
• You will have a reserve of water stored in the tank.
• You do not need to buy and carry water bottles - thus reducing plastic waste production.
• The waterRO ECO filter is characterized by long-lasting, trouble-free operation.

Water flowing through this system undergoes 5 stages of filtration:

1. WPM-5 – A mechanical foam cartridge made of polypropylene nonwoven fabric removes larger undissolved mechanical impurities such as rust, suspensions, sand, silt, etc. up to 5 microns in size.

2. WWB10 – Block carbon cartridges improve the taste and smell of water, remove mechanical impurities larger than 10 microns, remove chlorine and its toxic derivatives, eliminate lead and toxic heavy metals, and remove organic compounds (including bacteria).

3. WPM-1 - A mechanical foam cartridge made of polypropylene nonwoven fabric removes larger undissolved mechanical impurities such as rust, suspensions, sand, silt, etc. up to 1 micron in size.

4. VONTRON 75 – osmotic membrane. This is a set of semi-permeable thin-layer membranes. Combined with polypropylene nonwoven filters and activated carbon, it allows for truly pure and healthy water. The osmotic membrane removes 96-99% of all dissolved compounds in water, as well as bacteria and viruses.

5. WWL2 – a linear carbon cartridge filled with activated carbon media. The activated carbon media contained in the cartridge significantly improves the taste and smell of water, reducing chlorine and other organic compounds.

The RO5 water filter waterRO ECO has:

• Double sealing system for the pre-filter housings and the osmotic membrane housing
• PZH certificate
• Branded filter cartridges
• Quick connectors from one of the best global manufacturers - the ORGANIC brand
• Hoses in 5 colors - this facilitates orientation during the installation of the device
• Specially selected flow restrictor

The modern single faucet allows for dispensing clean, filtered water after osmosis.

The water tank The treated water is stored in a 12-liter (new model) pressure tank, (about 8L) from which it is drawn on demand.

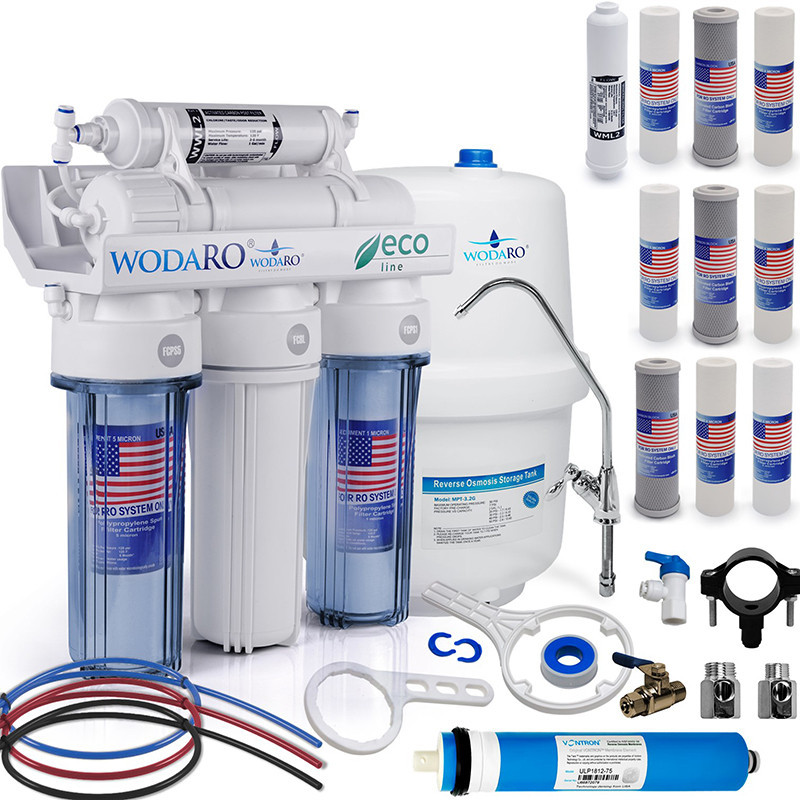

Included in the set:

• RO5 waterRO ECO filtering set
• Water storage tank of 12L gross (approx. 8L working capacity)
• Set of cartridges for 2 years of device operation (10 pieces)
• Valve for the water tank
• Four-way valve
• Restrictor / flow limiter (specially selected for the membrane)
• CLASSIC single faucet
• 5 hoses in different colors, each 1.5m long
• Water connections in sizes 1/2 inch and 3/8 inch
• Brass valve for water connection
• Clamp for draining wastewater (mounted to the siphon)
• Key for the RO membrane housing
• Key for the pre-filter housings
• VONTRON 75 osmotic membrane
• Installation instructions

Technical data:

• Maximum output: 280L/day*
• Weight: approx. 6 kg
• Minimum/maximum working pressure: 2.5 bar - 6 bar
• Ratio of pure water to rejected water: 1:2 - 1:8 depending on pressure and water temperature, average 1:4
• Operating temperature: 2-42 °C
• System dimensions: height 42cm width 36cm depth 15cm (Height can be adjusted by rotating the linear cartridges.)
• Tank dimensions: diameter 24.5cm height 34.5cm

*at a pressure of 6 bar and water temperature of 25°C
