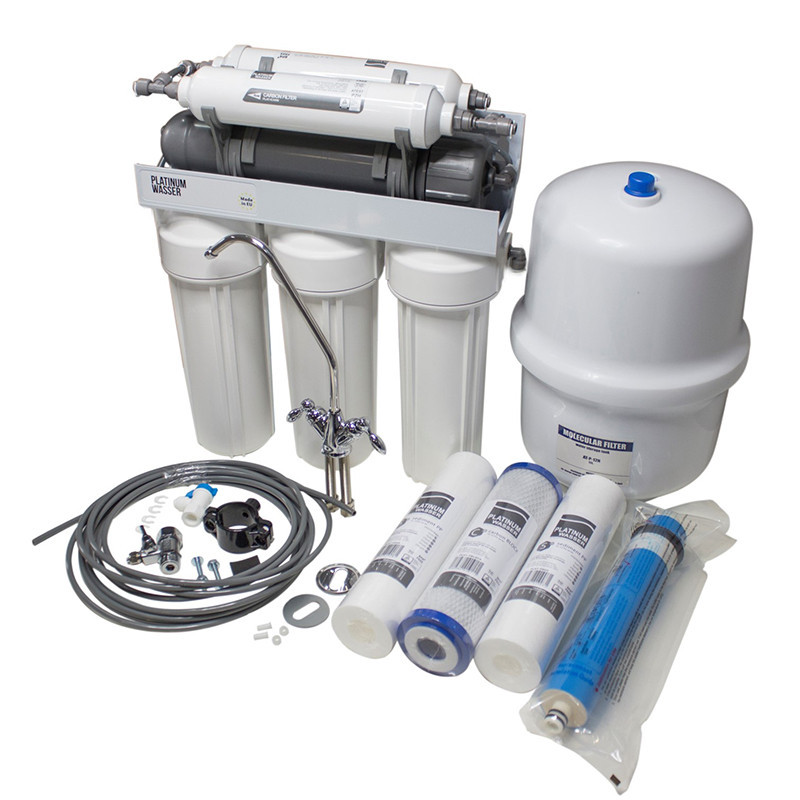

6-stage reverse osmosis system Platinum Wasser, designed for drinking water treatment. The filter is characterized by high quality and reliability. The device has a certificate: BPA Free.
The ULTRA6 system has 6 stages of filtration:
- Stage I - 20-micron foam cartridge traps all kinds of mechanical impurities such as sand, rust, and other sediments.
- Stage II - carbon cartridge designed for the filtration of chlorine, chlorinated compounds, lead, toxic heavy metals, and the removal of organic compounds and mechanical impurities up to 20 microns.
- Stage III - 5-micron foam cartridge traps all kinds of mechanical impurities such as sand, rust, and other sediments.
- Stage IV - osmotic membrane, which consists of many layers wound around a perforated core placed inside. The membrane retains 96-99% of dissolved organic and inorganic impurities, heavy metals, and some bacteria and viruses no smaller than 0.001 microns. These impurities are expelled and rejected into the sewage system, while the perfectly purified water passes through the openings to the central core and flows out of the membrane under pressure.
- Stage V - linear carbon cartridge, which has a high-quality bed - coconut shell carbon, thus improving the taste and smell of water.
- Stage VI - linear mineralizing cartridge. Reverse osmosis removes 96-99% of impurities and minerals, the L-MIN mineralizer cartridge enriches the water with lost minerals such as calcium, magnesium, sodium, and potassium.
Included is a 75 GPD membrane with a capacity of 280L/24h.
Technical parameters:
- dimensions (h*w*d): 460*420*140
- operating temp.: 2-45°C
- operating pressure: from 2.8 to 6 bar
- body material: polypropylene
- head material: polypropylene
- tube: polyethylene 1/4"
- number of filtration stages: 6
- number of bodies: 3
- type of connectors: quick connectors
- water connection: 3/8"
- tank: with a total capacity of 12L, depending on pressure, can hold about 8L of pure water
- tank dimensions: height 42 cm, diameter 28 cm
- pre-pressure of the tank: 0.7-0.9 bar with adjustable option
