OSMOSE FILTER MINERALIZER CARTRIDGE SET BPA FREE PLATINUM WASSER

Complete set of 5 cartridges for osmosis and 10" housings

The set has been prepared for 10” housings of home filters and RO molecular osmosis filters. It is also compatible with sets from other manufacturers. The inline filters, carbon post-filter, and mineralizer are equipped with a standard 1/4" female thread, which makes them easy to match with popular home installations.

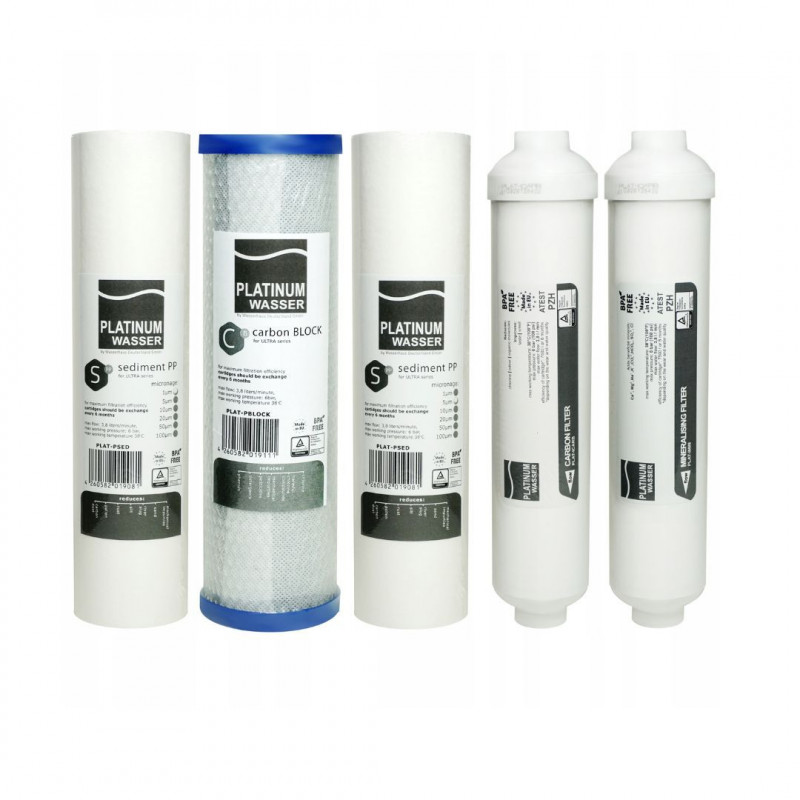

Set contents

• PP1 sediment cartridge
• Carbon Block cartridge
• PP5 sediment cartridge
• PLAT-ICARB carbon post-filter
• PLAT-IMIN mineralizing post-filter
• Sealing tape
• Grease for seals
• Housing disinfection tablet
• Flushing hose
• Instructions

How this filtration set works

The package has been designed to handle the key stages of a domestic reverse osmosis system. The mechanical cartridges capture solid contaminants, the carbon cartridge is responsible for improving organoleptic quality and water contact with the active filter medium, and the inline filters at the final stage improve taste and add selected minerals back to the water.

Stage I – PP1 sediment cartridge

The PP1 cartridge is made using the meltblown spray method from polypropylene fibers. The high density of the structure allows the removal of sediment and contaminants down to 1 micron, making it an important first stage of protection for the entire system.

• Removes mechanical contaminants down to 1 micron
• Traps sand, rust, and other sediments
• Resistant to chemicals and bacteria
• Designed for 10” housings of home filters and RO molecular filters
• Maximum capacity up to 15 liters per minute
• Capacity: 6 months or 12,000 liters, depending on the level of water condensation and degree of contamination
• Maximum pressure: 6 bar
• Maximum temperature: 38°C

Stage II – Carbon Block cartridge

The carbon cartridge contains a single block of activated carbon made from compressed coconut shells. This design extends the contact time between the water and the filter medium, supporting high purification efficiency and improved water performance.

• Contains a single block of activated carbon made from compressed coconut shells
• The cartridge structure allows longer water contact with the cartridge, ensuring high purification quality
• Main benefit: improved water taste and odor
• Used in 10'' housings and molecular filters
• Recommended service life: about 6 months or 18,000 liters, depending on the level of water condensation and degree of contamination
• Maximum pressure: 6 bar
• Maximum temperature: 38°C

Stage III – PP5 sediment cartridge

The PP5 cartridge is also made using the meltblown method from polypropylene fibers. It is responsible for mechanical filtration of contaminants down to 5 microns and serves as another stage of system protection.

• Removes sediments and contaminants down to 5 microns
• Traps mechanical impurities such as sand, rust, and other sediments
• Resistant to chemicals and bacteria
• Designed for 10” housings of home filters and RO molecular filters
• Maximum capacity up to 15 liters per minute
• Capacity: 6 months or 12,000 liters, depending on the level of water condensation and degree of contamination
• Maximum pressure: 6 bar
• Maximum temperature: 38°C

PLAT-ICARB carbon post-filter

The PLAT-ICARB carbon post-filter is an inline final cartridge designed to refine the taste and odor of water after the earlier filtration stages. Thanks to the standard 1/4" female thread, it is easy to integrate into a standard RO installation.

• Index: PLAT-ICARB
• The cartridge contains granular activated carbon
• Improves water taste and odor
• Removes chlorine, lead, toxic pesticides, heavy metals, detergents, and phenols
• Maximum capacity up to 3.8 liters per minute
• Capacity: 6 months or 7,500 liters, depending on the level of water condensation and degree of contamination
• Maximum pressure: 6 bar
• Maximum temperature: 38°C
• 1/4" female thread

PLAT-IMIN mineralizing post-filter

The PLAT-IMIN mineralizer is responsible for the final mineralization of water after filtration. The cartridge contains natural mineralizing dolomite, which enriches the water with selected minerals and improves its taste.

• Index: PLAT-IMIN
• The cartridge contains natural mineralizing dolomite
• Adds beneficial minerals such as calcium, magnesium, sodium, and potassium
• Raises pH
• Improves the taste of filtered water
• Capacity: 6 months or 7,500 liters, depending on the level of water condensation and degree of contamination
• Maximum pressure: 6 bar
• Maximum temperature: 38°C
• 1/4" female thread

Safety and build quality

The set is BPA Free, which means it does not contain toxic substances, including Bisphenol A. This is an important feature for people who pay attention not only to effective filtration, but also to the safety of materials that come into contact with water.

The product has PZH approval, confirming safety for human health and the natural environment.

The TÜV Rheinland product certificate in Certipedia confirms compliance with specific safety and quality criteria. This is additional confirmation of reliability and the use of user- and environmentally friendly solutions.

The device was manufactured in the European Union.

Additional important information

• max. temperature : 38°C
