OSMOTIC FILTER RO7 AQUA VITA HYDROGEN WATER REDOX

Complete water filtration system for the kitchen

RO7 Aqua Vita Redox is a complete osmosis unit that allows you to obtain water free from contaminants such as toxic and carcinogenic chemical compounds, heavy metals, bacteria, and viruses. The advantage of the system is the combination of 7-stage purification, the possibility of demineralizing the water, and the use of the wodaRO AV-REDOX-L ionizing cartridge.

The system is designed to improve water quality using reverse osmosis, recognized as one of the most advanced purification methods. It removes 90-98% of all water contaminants: mechanical impurities, dissolved compounds, and microorganisms.

Key benefits in everyday use

• You get crystal-clear water free from limescale, heavy metals, chlorine, pesticides, and microorganisms.
• You get constant access to clean mineralized water suitable for drinking.
• You do not have to buy and carry water bottles, which also reduces plastic waste.
• You improve the taste and smell of water, as well as brewed beverages and cooked dishes.
• You get water that is safe to consume.
• You get a reserve of water stored in the tank.

What is included in the basic set

• modern dual faucet enabling separate dispensing of pure post-osmosis water and pure mineralized water,
• 12 l gross water storage tank (approx. 8 l working capacity),
• parts and installation accessories,
• detailed installation manual and service manual.

The filters have a current PZH approval.

The delivered set is pre-prepared for installation.

7 filtration stages in the RO7 Aqua Vita Redox system

Water flowing through this reverse osmosis filter undergoes a complete seven-stage purification and treatment process:

1. FCPS20

The mechanical foam cartridge made of polypropylene nonwoven fabric removes larger mechanical impurities insoluble in water, such as rust, suspended particles, sand, or sludge, down to a size of 20 microns. Cartridge life: 6 months.

2. FCBL10

The block carbon cartridge improves the taste and smell of water, removes mechanical impurities larger than 10 microns, reduces chlorine and its toxic derivatives, eliminates lead and toxic heavy metals, and removes organic compounds, including bacteria. Cartridge life: 6 months.

3. FCPS5

The mechanical foam cartridge made of polypropylene nonwoven fabric removes larger mechanical impurities insoluble in water, such as rust, suspended particles, sand, or sludge, down to a size of 5 microns. Cartridge life: 6 months.

4. 100 GPD osmosis membrane

This is a set of semipermeable thin-film membranes. Combined with polypropylene nonwoven filters and activated carbon, it provides truly clean and healthy water. The osmosis membrane removes up to 99% of all dissolved compounds, as well as bacteria and viruses. Membrane life: 5-6 years.

5. AV-GAC-L

Linear carbon cartridge filled with activated carbon media. The media contained in the cartridge significantly improves the taste and smell of water, reducing chlorine and other organic compounds. Cartridge life: 12 months.

6. AV-MIN-L

Linear mineralizer. Osmotic filtration removes from 96 to 99% of all contaminants and minerals from water. The AV-MIN-L dolomite mineralizer enriches the water with minerals lost during osmotic filtration. As water flows through the mineralizer, it is enriched with elements essential for the human body, such as: calcium, magnesium, potassium, sodium. Cartridge life: 12 months.

7. AV-REDOX-L

An ionizing cartridge (alkalizer) that saturates the water with hydrogen, thereby reducing its REDOX potential and increasing the water pH. In practice, this means the water becomes an effective antioxidant. As an antioxidant, hydrogen binds free radicals harmful to the body. Ionized water has many uses; among other things, it has a beneficial effect on digestive processes, supports kidney function, regulates the acid-base balance, removes toxins, and deacidifies the body. Cartridge life: 12 months.

wodaRO AV-REDOX-L ionizing cartridge

One of the distinguishing features of this water filtration system is the AV-REDOX-L ionizing cartridge, which extends the operation of classic osmosis with the function of saturating water with hydrogen and changing redox and pH parameters.

Benefits of the AV-REDOX-L cartridge

• It lowers the oxidation-reduction potential (from -50 mV to -400 mV).
• It releases active hydrogen (above 200 µg/L).
• It alkalizes the water (pH from 8 to 10).

Attributed functional effects of ionized water

• it contributes to toxin removal,
• it deacidifies the body,
• it regulates the acid-base balance,
• it supports kidney function,
• it has a beneficial effect on digestive processes,
• it removes free radicals.

Convenient installation and daily water dispensing

The system fits easily under the sink, making it well suited as a home water filter installed in a kitchen cabinet.

CLASSIC dual faucet

Modern design and quality are the features of this model, significantly superior to standard lever versions. The CLASSIC dual faucet enables separate dispensing of pure post-osmosis water and pure mineralized water.

12-liter tank for treated water

The treated water is stored in a new-type 12-liter pressurized tank. The gross capacity is 12 l, while the working water volume is about 8 l. The tank allows water to be dispensed on demand, without having to wait for the full filtration process each time.

Equipment and design solutions

The RO7 Aqua Vita Redox water filter includes elements that affect both purification efficiency and the convenience of installation and later servicing:

• double sealing system for the pre-filter housings and the osmosis membrane housing,
• PZH approval,
• branded filter cartridges,
• quick connectors from one of the world’s best manufacturers,
• tubing in 5 colors — this makes installation easier,
• specially selected flow restrictor, the so-called restrictor,
• built-in AV-MIN-L dolomite mineralizer,
• built-in AV-REDOX-L ionizing cartridge,
• dual faucet enabling separate dispensing of pure post-osmosis water and pure mineralized water with elevated pH.

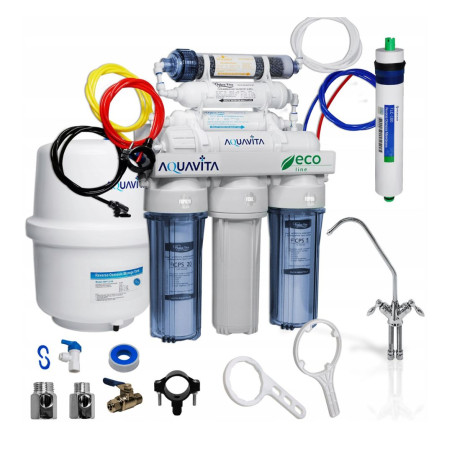

Kit contents

• RO7 AQUA VITA REDOX filtration set
• 12 l gross water storage tank (approx. 8 l working capacity)
• Tank valve
• Four-way valve
• Restrictor / limiter (specially matched to the membrane)
• CLASSIC dual faucet
• 5 tubes in different colors, each 1.5 m long
• 2 water connectors in sizes 1/2 inch and 3/8 inch
• Brass water connection valve
• Drain saddle clamp (mounted to the siphon)
• Key for pre-filter housings
• Osmosis membrane Supreme 100 GPD / Vontron 100 GPD / HelloPURE 100GPD
• Installation manual
• Service manual

The delivered set is pre-prepared for installation.

The best water quality in your kitchen

The combination of osmosis technology, final filtration on activated carbon, mineralization, and ionization makes the system well suited to the needs of users looking for clean water for drinking, cooking, and preparing beverages. The dual faucet makes it convenient to choose between post-osmosis water and mineralized water.

* at 6 bar pressure and 25°C water temperature

Additional important information

• 45cm
• 39.5cm
• depth 15.5cm
• diameter 23.5cm
• 36cm

Technical specifications
