OSMOZA RO7 WATER FILTER IONIZER REDOX - 400 PUMP

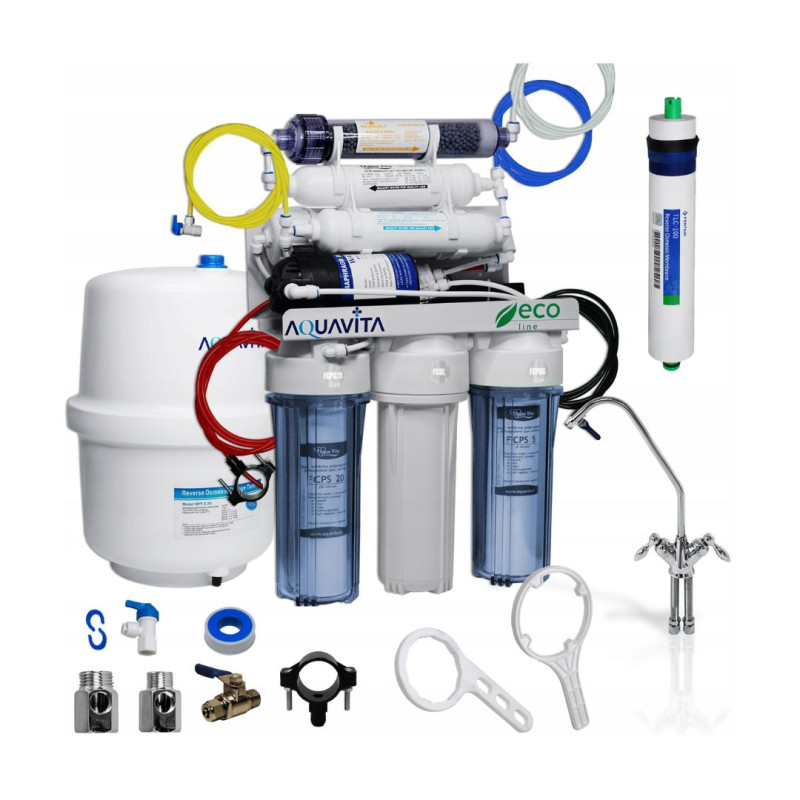

RO7 AQUA VITA REDOX WITH ELECTRIC PUMP

It is a complete osmotic device that allows you to obtain water free from contaminants such as: toxic and carcinogenic chemical compounds, heavy metals, bacteria, and viruses. The excellence of the system lies in the use of 7-stage water treatment technology, the ability to demineralize it, and the use of the ionizing cartridge waterRO AV-REDOX-L. The system is also equipped with a pressure pump.

IN THE SET:

• modern double spout allowing separate dispensing of purified osmosis water and clean mineralized water

• pressure pump

• water storage tank 12L gross (approx. 8L working capacity)

• mounting parts and accessories

• detailed assembly instructions and service execution instructions.

Filters have a current PZH certificate.

The sent set is pre-prepared for assembly.

The system is designed to improve water quality by reverse osmosis, one of the most advanced water purification methods. It removes 90-98% of all water contaminants: mechanical, dissolved compounds, and microorganisms.

By using the reverse osmosis system:

• You will obtain crystal clear water, free from scale, heavy metals, chlorine, pesticides, microorganisms

• You will have constant access to clean mineralized drinking water

• You do not need to buy and carry water bottles - thus reducing plastic waste production.

• You will improve the taste and smell of water, brewed beverages, and cooked dishes

• You will obtain water safe for consumption

• You will have a water reserve stored in the tank

Water flowing through this system undergoes 7 stages of filtration:

1. FCPS20 – Foam mechanical cartridge made of polypropylene nonwoven fabric removes larger undissolved mechanical impurities such as rust, suspensions, sand, silt, etc. up to 20 microns. (Lifespan - 6 months)

2. FCBL10 – Block carbon cartridges improve the taste and smell of water, remove mechanical impurities larger than 10 microns, remove chlorine and its toxic derivatives, eliminate lead and toxic heavy metals, remove organic compounds (including bacteria). (Lifespan - 6 months)

3. FCPS5- Foam mechanical cartridge made of polypropylene nonwoven fabric removes larger undissolved mechanical impurities such as rust, suspensions, sand, silt, etc. up to 5 microns. (Lifespan - 6 months)

4. 100GPD osmotic membrane. This is a set of semi-permeable thin-layer membranes. Combined with polypropylene nonwoven filters and activated carbon, it allows you to obtain truly clean and healthy water. The osmotic membrane removes up to 99% of all dissolved compounds in water, as well as bacteria and viruses. (Lifespan - 5-6 years)

5. AV-GAC-L– linear carbon cartridge filled with activated carbon. The activated carbon contained in the cartridge significantly improves the taste and smell of water, reducing chlorine and other organic compounds. (Lifespan - 12 months)

6. AV-MIN-L- linear mineralizing cartridge. Osmotic filtration removes from water 96 – 99% of all impurities and minerals. The dolomite mineralizer AV-MIN-L enriches the water with minerals lost during the osmotic filtration process. Water flowing through the mineralizer is enriched with elements essential for the human body, such as: calcium, magnesium, potassium, sodium. (Lifespan - 12 months)

7. AV-REDOX-L – ionizing cartridge (alkalizer). The cartridge saturates the water with hydrogen, thereby reducing its REDOX potential. It raises the water's pH. In practice, this means that the water then becomes an effective antioxidant. As an antioxidant, hydrogen binds harmful free radicals that, if left unpaired, degenerate our body. Ionized water has many applications, including positively affecting digestive processes, supporting kidney function, regulating acid-base balance, removing toxins, and alkalizing the body. (Lifespan - 12 months)

NEW IONIZING CARTRIDGE waterRO AV-REDOX-L

Benefits:

• Reduces the oxidation-reduction potential (from -50mV to -400mV)

• Releases active hydrogen (above 200µg/L)

• Alkalizes water (pH from 8-10)

The above features positively influence many aspects of our lives:

• helps detoxify it from toxins (ionized water is an excellent detoxifier)

• alkalizes the body

• regulates acid-base balance

• supports kidney function

• positively affects digestive processes

• removes free radicals

THE SYSTEM EASILY FITS UNDER THE SINK

ELECTRIC PUMP WITH HIGH AND LOW PRESSURE SENSORS

The system is equipped with a electric pump with high and low pressure sensors, which automatically turns off after filling the tank and protects against turning on the pump in case of water shortage.

The pump in osmotic sets is recommended at a pressure lower than 2.8 bar, and is necessary at a pressure of 2.3 bar.

CLASSIC DOUBLE SPOUT

• Modern design and quality are the features of this model, significantly surpassing standard versions (with levers) allowing separate dispensing of purified osmosis water and clean mineralized water.

12-LITER TANK FOR TREATED WATER

• Treated water is stored in a 12-liter (new model) pressure tank, (about 8 liters of water) from which it is drawn on demand.

THE BEST WATER QUALITY IN YOUR KITCHEN

THE RO7 AQUA VITA REDOX WATER FILTER HAS:

• Double sealing system for pre-filter housings and the osmotic membrane housing

• PZH Certificate

• Branded filter cartridges

• Quick connectors from one of the best manufacturers in the world.

• Hoses in 5 colors - this makes it easier to orient during the installation of the device

• Specially selected flow restrictor

• built-in dolomite mineralizer AV-Min-L

• built-in ionizing cartridge AV-Redox-L

• built-in electric pump

• double spout allowing separate dispensing of water purified by osmosis and clean mineralized water with elevated pH.

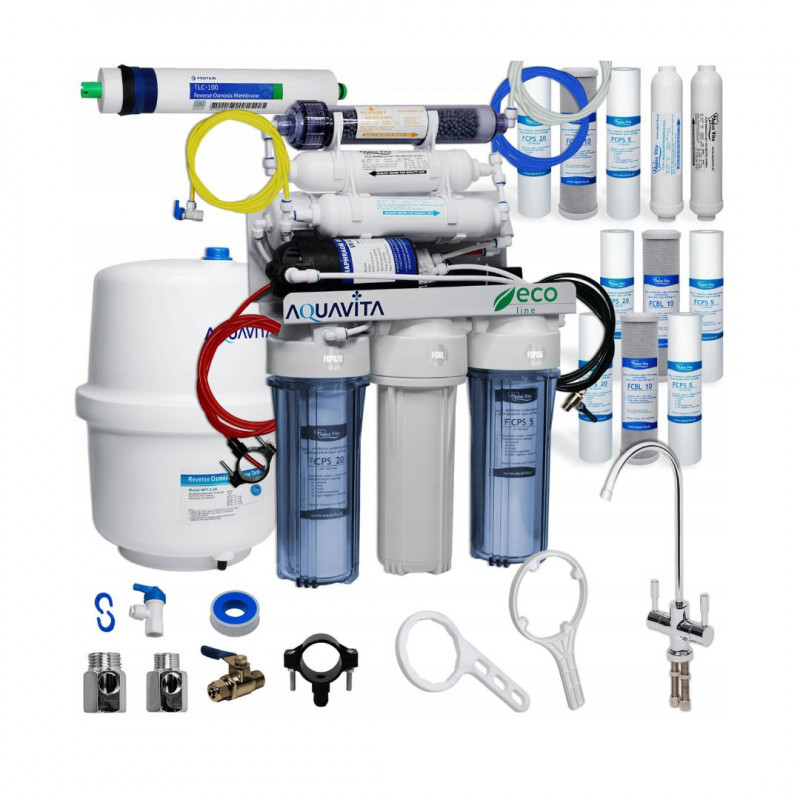

THE SET INCLUDES:

• Filtration set RO7 AQUA VITA REDOX WITH PUMP

• Water storage tank 12L gross (approx. 8L working capacity)

• Valve for the water tank

• Four-way valve

• Restrictor / flow limiter (specially selected for the membrane)

• Double CLASSIC spout

• 5 hoses in different colors, each 1.5m long

• 2 connections for water in size 1/2 inch and 3/8 inch

• Brass valve for water connection

• Clamp for wastewater drainage (mounted to the siphon)

• Key for pre-filter housings

• Supreme osmotic membrane 100 GPD/ Vontron 100 GPD/ HelloPURE 100GPD

• Installation instructions

• Service instructions

The sent set is pre-prepared for installation.

TECHNICAL DATA:

• Maximum output: 370L/day*

• Weight: approx. 15 KG

• Minimum/maximum working pressure: 2.5 bar - 6 bar

• Ratio of pure water to rejected water: 1:2 - 1:8 depending on pressure and water temperature, average 1:4

• Operating temperature: 2-42 °C

• Transparent outer housings

• Middle housing in white color

*at a pressure of 6 bar and water temperature of 25°C

System dimensions:

• approx. 50cm

• 39.5cm

• depth 15.5cm

Height can be adjusted by rotating the linear cartridges.

For a lower cabinet, the system can be lowered by rotating the filters, then the height is 42 cm.

Tank dimensions:

• diameter 23.5cm

• 36cm
