Big Blue 20-inch cartridges

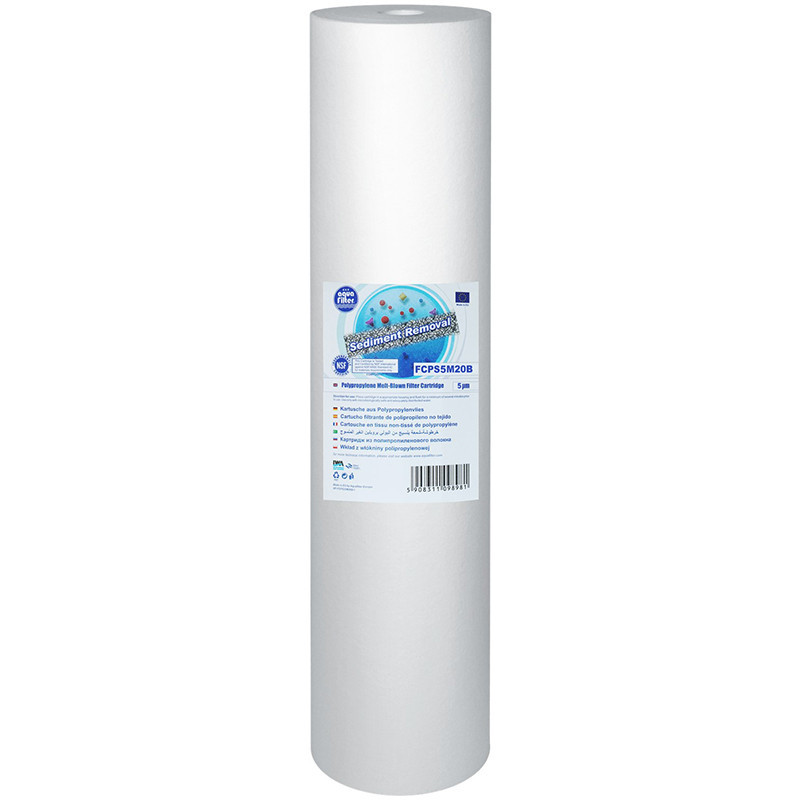

FCPS5M20B Aquafilter 5 micron BIG BLUE 20" filter
Rating
Aquafilter FCPS5M20B sediment filter for Big Blue 20" housings. Made of polypropylene non-woven fabric, it filters water through the en Read moreShow less
Aquafilter FCPS5M20B sediment filter for Big Blue 20" housings. Made of polypropylene non-woven fabric, it filters water through the entire structure of the cartridge and retains fine mechanical impurities such as rust, sand, silt, sludge, and suspensions. Designed for cold water filtration. It has NSF certification and PZH approval.
Benefits
- Captures sand, sediment and rust particles
- Protects subsequent filtration stages
Specifications
FCPS5M20B
994 Items
- Temperatura pracy
- 2°C - 45°C
- Żywotność
- do 6 miesięcy*
- Wydajność
- do 60 l/min
- Spadek ciśnienia
- 0,3 - 0,5 bar
- Cartridge diameter
- 4,5″
- Cartridge length
- 20″
View full specifications
- Cartridge type
- Foam sediment, Sediment
- Compatibility
- Big Blue 20"
- Filtration rating
- 5 µm
- Housing standard
- Big Blue 20″
- Material
- Polypropylene
- Filter media
- Polypropylene
- Model
- FCPS5M20B
- Product type
- Filter cartridge
- Reusable
- No
Description
FCPS5M20B Aquafilter is a 5-micron sediment filter cartridge for Big Blue 20" housings, designed for effective cold water filtration. Made of polypropylene nonwoven fabric, it captures fine mechanical impurities such as sand, silt, sludge, rust, and suspended solids, helping protect the installation, fittings, and subsequent components of the water filtration system. It is a practical water filter used wherever pre-treatment of water, low pressure drop, and reliable compatibility with BB20 housings are important, also as a protective stage for more advanced solutions such as a reverse osmosis filter or a reverse osmosis system.
Effective mechanical filtration in Big Blue 20" housings
The Aquafilter FCPS5M20B sediment cartridge has been designed to remove fine fractions of solid contaminants from water. Thanks to its polypropylene nonwoven structure, it effectively captures mechanical impurities present in the water system, improving the quality of utility water and reducing the risk of deposits reaching further components of the system.
This model is compatible with 20” Big Blue housings, making it a good choice as a pre-filter cartridge in residential and utility filtration systems. It is intended for use with cold water.
How does a polypropylene nonwoven cartridge work?
The way the polypropylene nonwoven fabric is formed means that water is filtered through the entire structure of the cartridge, not only on its surface. This design supports effective retention of mechanical particles and helps maintain good filtration performance with low pressure drop.
A cartridge with a 5-micron filtration rating is a suitable choice wherever effective protection of the installation against fine deposits is needed, while maintaining efficient flow is also important. It can serve as a standalone mechanical filtration stage or as a first protective stage before devices that require cleaner water.
What contaminants does it remove?
The Aquafilter FCPS5M20B cartridge removes fine mechanical impurities from water, including:
- rust,
- sand,
- silt,
- sludge,
- suspended solids.
Thanks to this, it helps protect faucets, valves, household appliances, and subsequent stages of water treatment from premature wear caused by the presence of solid particles.
Key advantages of the FCPS5M20B cartridge
- Removes mechanical impurities (rust, sand, silt, suspended solids).
- Provides excellent filtration with low pressure drop.
- Has PZH approval.
- Manufactured in the EU.
- Designed for use with 20” Big Blue housings.
- Made of polypropylene nonwoven fabric that filters water through the entire structure of the cartridge.
- Intended for cold water filtration.
- Has NSF certification.
Application
This filter cartridge is used wherever effective mechanical filtration of cold water is required. It works well as a preliminary element in residential and utility installations, supporting the protection of pipes, fittings, and end-use devices.
It can also be used as a protective stage for a more advanced water filtration system, including systems in which an osmotic filter, reverse osmosis, or another system intended for more precise water treatment is used.
The cartridge is intended for cold water filtration. Cartridge life depends on water quality and the amount of retained contaminants, so the replacement frequency should be adjusted to operating conditions.
Technical specification
| Model | FCPS5M20B |
|---|---|
| Brand | Aquafilter |
| Product type | Sediment cartridge (foam) |
| Filtration rating | 5 micron |
| Material | Polypropylene nonwoven fabric |
| Compatible housings | 20” Big Blue housings |
| Intended use | Cold water filtration |
| Removed contaminants | Sand, sludge, silt, rust, suspended solids |
| Operating characteristics | Filtration through the entire cartridge structure, low pressure drop |
| Certificates and approvals | NSF, PZH approval |
| Country of manufacture | EU |
Questions
Which housings is the FCPS5M20B cartridge compatible with?
The cartridge is designed for use with 20” Big Blue housings.
What contaminants does this cartridge remove?
The cartridge retains mechanical impurities such as rust, sand, silt, sludge, and suspended solids present in the water.
What material is the cartridge made of?
The FCPS5M20B model is made of polypropylene nonwoven fabric, which filters water through the entire structure of the cartridge.
Is the cartridge suitable for cold or hot water?
This model is intended for cold water filtration.
What filtration rating does the cartridge offer?
The cartridge provides 5-micron filtration, allowing it to effectively capture fine mechanical particles.
Does the cartridge cause a high pressure drop?
No, one of its advantages is very good filtration efficiency with low pressure drop.
Can this cartridge protect more advanced filtration systems?
Yes, mechanical filtration at the preliminary stage helps protect subsequent components of the installation and can support the protection of devices such as a reverse osmosis filter or a reverse osmosis system.
How often should the cartridge be replaced?
Cartridge life depends on water quality and the amount of retained contaminants. The higher the contamination load, the sooner the cartridge will require replacement.
Does the cartridge have any certificates or approvals?
Yes, the cartridge has NSF certification and PZH approval.
