HHBB20A Aquafilter mechanical de-ironing cartridge

BIG BLUE 20 water treatment station for household use

HHBB20A Aquafilter is a professional unit built into a steel frame, designed as a basic foundation for creating a domestic water treatment system. The set uses housings in the BIG BLUE 20 standard, enabling effective mechanical filtration and iron removal using properly selected cartridges.

The freestanding design allows the unit to be placed on the floor without the need for mounting to a wall or other vertical surface. This is a convenient solution for installation in a boiler room, utility room, or at the main water connection.

The set is equipped with pressure gauges that allow ongoing pressure readings. This is a practical feature that helps assess pressure drops in the system and determine when the filter cartridges should be replaced.

How the HHBB20A filtration set works

The set includes 2 filter cartridges responsible for two key stages of water treatment: removal of mechanical impurities and reduction of iron. This configuration supports system protection and improves everyday water use comfort.

Stage I: FCPS20M20B – 20-micron mechanical cartridge

FCPS20M20B is a mechanical cartridge designed for 20-inch BIG BLUE housings. It is characterized by very high dirt-holding capacity. Its structure resembles foam, with a large number of open-cell microbubbles on the surface, which promotes efficient sediment capture.

The cartridge effectively removes sand, silt, rust, and other mechanical impurities present in tap water. As a result, it helps protect household water installations and home appliances from excessive wear and sediment build-up.

The polypropylene nonwoven fabric used in this cartridge is resistant to chemicals and to the growth of microorganisms. The cartridge is intended for the treatment of cold drinking water or general-purpose water.

Advantages of the FCPS20M20B mechanical cartridge

• manufactured in the EU
• removes mechanical impurities (rust, sand, silt, suspended solids)
• provides excellent filtration with low pressure drop
• chemical-resistant
• resistant to the growth of microorganisms

Stage II: FCCFE20BB – cartridge with active media for water de-ironing

The second cartridge is responsible for effectively trapping iron compounds dissolved in water. It was designed to protect household appliances such as washing machines and dishwashers, as well as heating equipment. It also helps reduce aesthetic and practical problems resulting from the presence of iron in water.

The de-ironing cartridge contains a special fine-grained granulate with a high capacity for capturing iron ions. Water flowing through the media penetrates its entire volume, which increases effectiveness. The media composition inside the housing also adjusts the water reaction (pH), supporting the de-ironing process.

The cartridge has its own final filter, which prevents granulate particles from escaping beyond the filter. An additional benefit is improved water taste and odor by reducing the characteristic metallic aftertaste.

Advantages of the FCCFE20BB de-ironing cartridge

• characterized by exceptional iron ion capture capacity
• contains technologically treated ion-exchange granulate with grain sizes from 0.2 to 0.7 mm
• used for cold and hot utility water
• prevents yellow stains on clothes and brown, rusty streaks on sink and bathtub surfaces
• the cartridge has PZH hygiene approvals
• made of NSF- and FDA-approved materials
• water flowing through the cartridge penetrates the entire ion-exchange granulate bed, ensuring maximum performance
• the cartridge effectively eliminates the metallic taste and odor of water
• features a polypropylene filter insert with a filtration accuracy of 10 microns, additionally protecting the cartridge

BACinix™ antibacterial centering discs

The set includes 2 antibacterial centering discs that support proper cartridge installation and increase the operational safety of the filtration system. These elements were made using BACinix™ antibacterial technology based on nanosilver, which has a bacteriostatic effect and limits the growth of microorganisms inside the system.

This solution helps extend the operating time of the system and provides additional protection against microbiological contamination inside the filtration system.

Centering disc – key advantages

• makes proper cartridge installation easier
• prevents the development of bacterial flora
• reduces the risk of pathogenic microorganism growth
• made of the highest quality materials in the European Union
• compatible with most BIG BLUE cartridges available on the market
• ensures proper cartridge positioning when tightening the components
• reduces the likelihood of cartridge damage during installation
• BACinix™ technology based on nanosilver provides antimicrobial protection

Pressure gauges and system operation monitoring

The set includes 2 pressure gauges that make it easier to monitor pressure values in the system. This is an important functional element, as it allows pressure drops related to filter cartridge use to be detected more quickly.

As a result, daily system operation is simpler, and cartridge replacement can be carried out at the right time before excessive fouling begins to reduce the comfort of using the installation.

Applications and benefits in everyday use

HHBB20A performs well wherever effective protection of the installation against mechanical sediment and problems resulting from the presence of iron in water is needed. This solution is particularly useful in single-family homes and utility water intake points, where both the protection of pipes and fittings and the improvement of water usability matter.

Unlike solutions such as reverse osmosis or a reverse osmosis filter, which usually operate at a single point for drinking water, this system serves as a central preliminary stage of water treatment in the installation. It can therefore be a practical complement to a more advanced filtration setup.

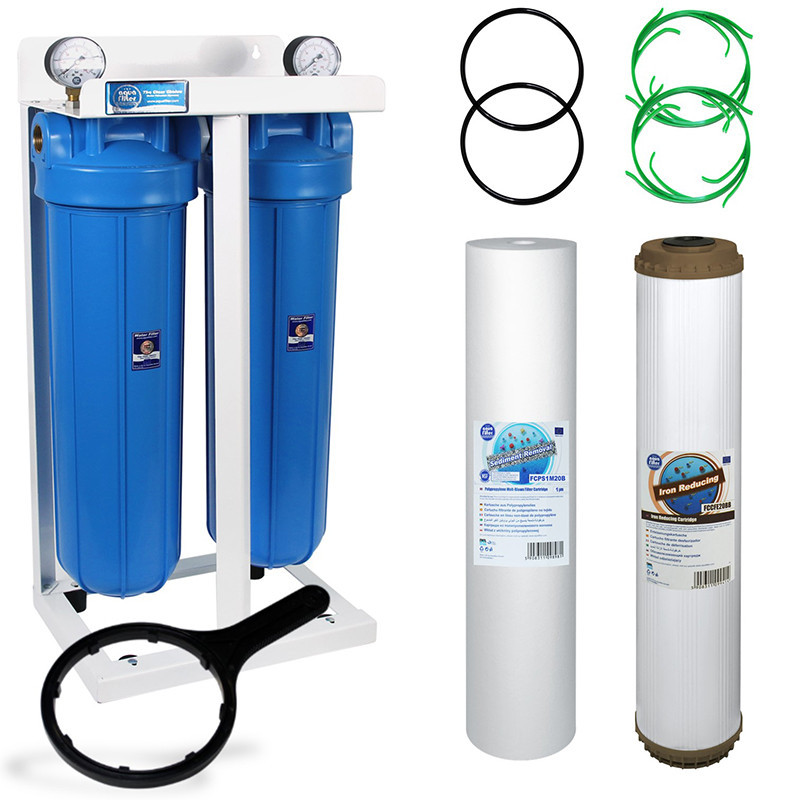

Set contents

• 2 Big Blue 20-inch inline housings
• metal structural frame
• 2 pressure gauges
• wrench for opening the housings
• 2 antibacterial spacer rings
• FCPS20M20B mechanical cartridge
• FCCFE20BB de-ironing cartridge
