Big Blue 20-inch cartridges

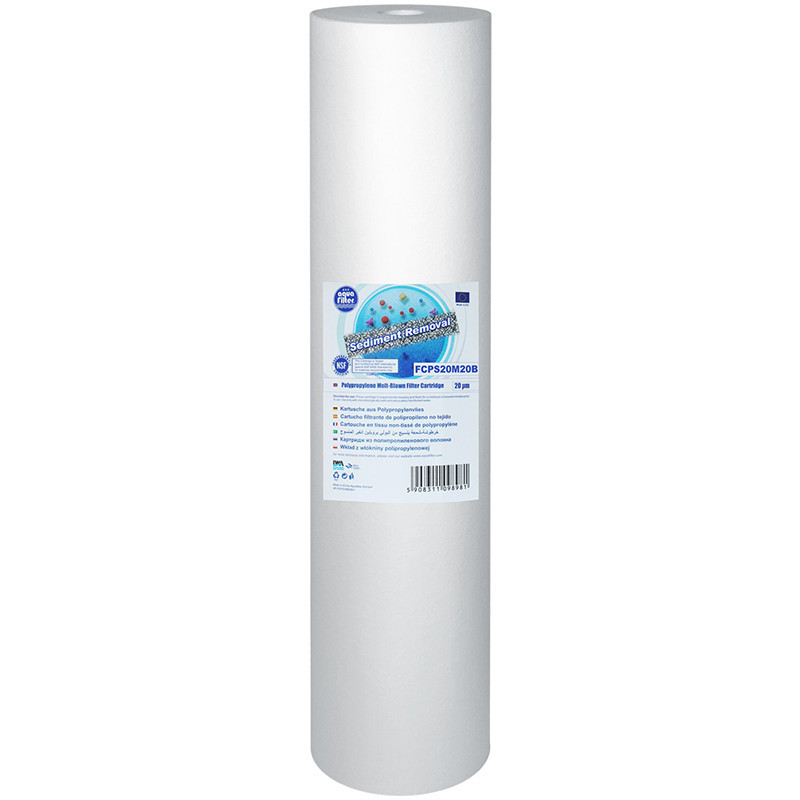

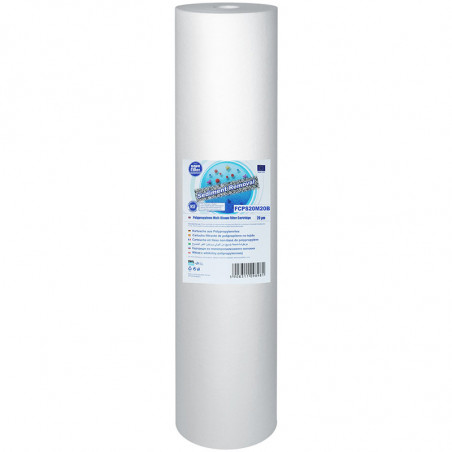

FCPS20M20B Aquafilter 20 micron BIG BLUE 20" cartridge
Rating
Aquafilter FCPS20M20B is a sediment filter made of foam polypropylene fiber for Big Blue 20" housings. It filters water through the ent Read moreShow less
Aquafilter FCPS20M20B is a sediment filter made of foam polypropylene fiber for Big Blue 20" housings. It filters water through the entire structure of the cartridge, trapping fine solid impurities such as sand, silt, sludge, rust, and suspensions. Designed for cold water filtration. It has NSF certification and a PZH approval.
Benefits
- Captures sand, sediment and rust particles
- Protects subsequent filtration stages
Specifications
FCPS20M20B
- Temperatura pracy
- 2°C - 45°C
- Żywotność
- do 6 miesięcy*
- Wydajność
- do 60 l/min
- Spadek ciśnienia
- 0,3 - 0,5 bar
- Cartridge diameter
- 4,5″
- Cartridge length
- 20″
View full specifications
- Cartridge type
- Foam sediment, Sediment
- Compatibility
- Big Blue 20"
- Filtration rating
- 20 µm
- Housing standard
- Big Blue 20″
- Material
- Polypropylene
- Filter media
- Polypropylene
- Model
- FCPS20M20B
- Product type
- Filter cartridge
- Reusable
- No
Description
Aquafilter FCPS20M20B is a 20 µm sediment filter cartridge designed for Big Blue 20" housings, used as an effective water filter in domestic and utility installations. Made of polypropylene nonwoven fabric, it captures mechanical impurities such as sand, silt, sludge, rust, and suspended solids, and thanks to filtration throughout the entire cartridge structure, it supports efficient water treatment with low pressure drop. It is a practical component of a cold water filtration system, and it also works well as preliminary protection for more advanced solutions such as a reverse osmosis filter, osmotic filter, or reverse osmosis system.
Big Blue 20" sediment cartridge for effective mechanical filtration
The FCPS20M20B model has been designed to remove fine fractions of solid contaminants from water. It is a foam sediment cartridge made of polypropylene nonwoven fabric, intended for use in Big Blue 20" type housings.
Its task is to retain mechanical particles present in the water before it reaches further elements of the installation, fittings, household appliances, or subsequent filtration stages. As a result, the cartridge helps maintain better utility water quality and reduces the passage of sediment into the system.
How does the polypropylene nonwoven fabric in this cartridge work?
The way the polypropylene nonwoven fabric is formed means that water is filtered through the entire structure of the cartridge, not just on its surface. This is an important feature in everyday use because it allows mechanical impurities to be effectively captured while maintaining very good flow performance.
This solution supports efficient filtration and at the same time helps maintain a low pressure drop in the installation. In practice, this means a combination of effective purification and convenient system use.
What contaminants does the Aquafilter FCPS20M20B remove?
The cartridge is intended for removing fine solid impurities present in cold water. It effectively retains primarily:
- sand,
- sludge,
- silt,
- rust,
- suspended solids.
As a result, it can serve as an important protective stage wherever preliminary mechanical water filtration is needed.
Key advantages of the cartridge
- removes mechanical impurities (rust, sand, silt, suspended solids),
- provides excellent filtration with low pressure drop,
- has PZH approval,
- manufactured in the EU.
Application
The Aquafilter FCPS20M20B cartridge is designed for use with 20" Big Blue type housings. It is used wherever effective mechanical filtration of cold water is needed — both in domestic installations and in extensive water treatment systems.
It can be used as a standalone protective element or as a preliminary stage preceding further filtration processes. This is a good solution when the water filtration system is intended to protect subsequent components against sediment and solid particles.
The cartridge is intended for cold water filtration. Cartridge service life depends on water quality and the amount of retained contaminants, so the replacement frequency should be adjusted to the actual operating conditions of the installation.
Quality and user safety
The FCPS20M20B model has NSF certification and PZH approval. This is important confirmation of the quality of the materials and the product's suitability for water filtration applications. An additional advantage is manufacturing within the EU.
Technical specification
| Model | FCPS20M20B |
|---|---|
| Brand | Aquafilter |
| Product type | Sediment cartridge (foam) |
| Material | Polypropylene nonwoven fabric |
| Filtration rating | 20 µm |
| Compatible housings | Big Blue 20" type housings |
| Intended use | Mechanical filtration of cold water |
| Removed contaminants | Sand, sludge, silt, rust, suspended solids |
| Filtration method | Filtration through the entire cartridge structure |
| Certificates and approvals | NSF, PZH |
| Place of manufacture | EU |
Questions
Which housings is the FCPS20M20B cartridge compatible with?
The cartridge is designed for use with 20" Big Blue type housings.
What contaminants does this cartridge remove?
The cartridge retains mechanical impurities such as rust, sand, silt, sludge, and suspended solids present in water.
Is this cartridge suitable for hot water?
No, the FCPS20M20B model is intended for cold water filtration.
What does the 20 µm filtration rating mean?
It means that the cartridge has been designed to capture fine mechanical particles corresponding to a 20 micron filtration level, which works well as preliminary filtration and installation protection.
How does filtration through the entire cartridge structure work?
Water flows through the entire volume of the polypropylene nonwoven fabric, so contaminants are retained within the material structure rather than exclusively on the cartridge surface.
Can the cartridge work as a preliminary stage before other filters?
Yes, this is a very good solution as mechanical filtration preceding further water treatment stages, including more precise filtration systems.
What does cartridge service life depend on?
Cartridge service life depends on water quality and the amount of mechanical impurities it must retain during operation.
Does the product have confirmed quality and safety credentials?
Yes, the cartridge has NSF certification and PZH approval. Additionally, it was manufactured in the EU.
