HHBB20A Aquafilter mechanical softening cartridge

Home water treatment station in the BIG BLUE 20 standard

HHBB20A Aquafilter is a water treatment station built into a solid steel frame. It provides a basic foundation for building a home water treatment system and works well wherever ease of use, a stable structure, and the ability to effectively prepare water for further use in a domestic installation are important.

The professional design is based on housings in the BIG BLUE 20 standard. This type of solution ensures great flexibility in selecting filtration and treatment components, while also providing convenient operating conditions. The frame allows the unit to be freely placed on the floor, without the need to mount it to a wall or other vertical surface.

The set includes two pressure gauges for convenient ongoing pressure readings. This practical solution helps assess pressure drop in the system and makes it easier to determine when the filter cartridges should be replaced. The housing features a 1-inch thread.

How does the HHBB20A Aquafilter set work?

The set combines two complementary stages of improving the quality of domestic and cold drinking water:

• mechanical filtration responsible for capturing solid contaminants,
• water softening through ion exchange, limiting limescale buildup.

This configuration works well as part of a home water filtration system. It can serve as an effective preliminary treatment section before further devices and installations, and in more advanced solutions it can complement systems such as an osmotic filter, reverse osmosis filter, reverse osmosis, or a reverse osmosis system.

Filter cartridges included in the set

The комплект includes 2 filter cartridges that perform two key tasks: removing mechanical contaminants and reducing water hardness.

FCPS20M20B – 20-micron mechanical cartridge

The FCPS20M20B cartridge is a filter cartridge designed for 20-inch BIG BLUE housings. It is characterized by very good contaminant absorption capacity. Its structure resembles the consistency of foam, with a large number of open-cell microbubbles on the surface. As a result, the cartridge effectively captures contaminants present in tap water.

In practice, it removes sand, silt, rust, and other mechanical impurities. It therefore helps protect household water installations and appliances from premature wear and the buildup of unwanted deposits. The polypropylene nonwoven material used is resistant to chemicals and to the growth of microorganisms.

The cartridge is intended for the treatment of cold drinking water or general utility water.

• made in the EU
• removes mechanical contaminants (rust, sand, silt, suspended solids)
• provides excellent filtration with low pressure drop
• chemical-resistant
• resistant to microorganism growth

FCCST20BB – softening cartridge with ion exchange media

The FCCST20BB cartridge is filled with fine-grained ion exchange media. The filtration process is based on exchanging magnesium and calcium ions present in the water for sodium ions as the water flows through the media. As a result, the water is softened, which helps limit limescale formation.

Softened water prevents unattractive sediment from forming in coffee and tea, and also helps protect household appliances from limescale buildup. This is an important benefit wherever hard water affects ease of use and equipment durability.

The cartridge is intended for the treatment of cold drinking water or general utility water.

• eliminates limescale buildup
• has PZH hygienic approvals
• made of materials approved by NSF and FDA
• has a final filter that prevents granulate particles from escaping beyond the filter

Antibacterial BACinix™ centering discs

The set includes 2 antibacterial centering discs. These components are made using BACInix™ antibacterial technology, which uses nanosilver with bacteriostatic properties. This solution helps prevent the growth of microorganisms inside the filtration system, supporting safe operation and potentially extending system service life.

The centering disc performs an important installation and operating function. It helps position the cartridge correctly in the housing, stabilizes its position while the components are being tightened, and reduces the risk of cartridge damage during installation.

• facilitates correct cartridge installation
• prevents the growth of bacterial flora
• reduces the risk of pathogenic microorganism growth
• made of the highest-quality materials in the European Union
• compatible with most BIG BLUE cartridges available on the market
• ensures proper cartridge positioning while tightening components
• reduces the likelihood of cartridge damage during installation
• BACinix™ technology based on nanosilver provides antimicrobial protection

Pressure monitoring and convenient operation

The two pressure gauges included in the set increase the convenience of everyday system performance monitoring. Pressure readings before and after selected system components make it possible to notice flow reduction more quickly, making it easier to decide when cartridge replacement is necessary.

This solution is especially useful in household installations where the water filter operates continuously and is intended to protect fittings, the installation, and water-using devices.

Applications and key benefits

• helps protect the water installation from mechanical contaminants,
• supports protection of household appliances against deposits and limescale,
• reduces sediment buildup in beverages such as coffee and tea,
• allows convenient floor placement of the unit,
• facilitates system monitoring thanks to 2 pressure gauges,
• is based on the popular BIG BLUE 20 standard,
• works well as a foundation for building a home water treatment system.

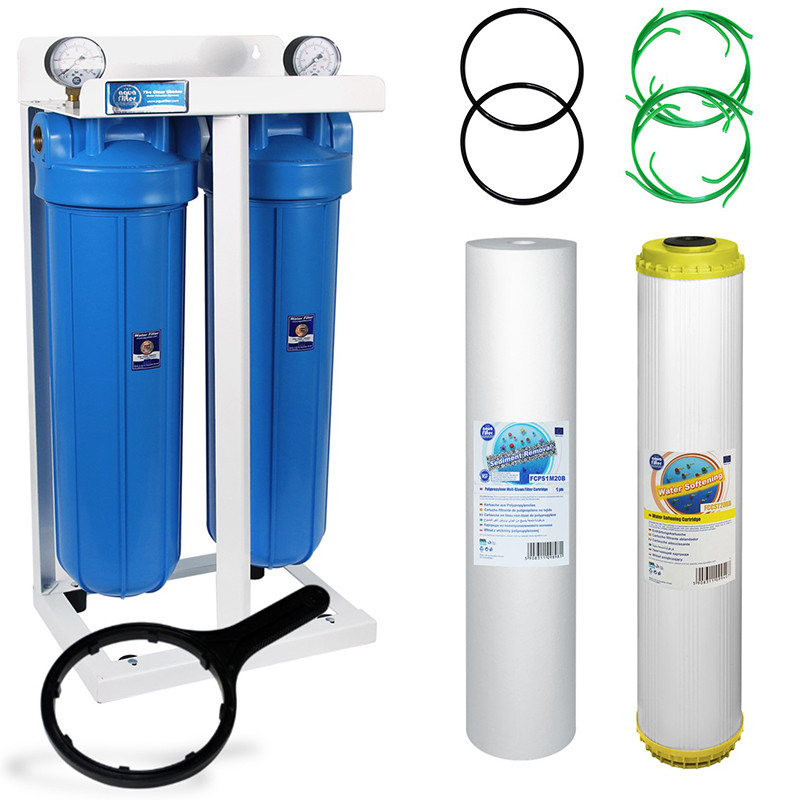

Set contents

• 2 Big Blue 20-inch inline housings
• metal structural frame
• 2 pressure gauges
• housing wrench
• 2 antibacterial spacer rings
• FCPS20M20B mechanical cartridge
• FCCST20BB softening cartridge
