HHBB20A Aquafilter carbon mechanical cartridge

Stable base for a domestic water treatment system

The HHBB20A Aquafilter model is a water treatment station built into a steel frame. This design creates a basic yet professional foundation for building a household filtration setup in the BIG BLUE 20 standard.

The set is based on Big Blue 20 housings, which allows suitable filtration and treatment cartridges to be selected according to water parameters and the installation to be gradually expanded in line with household needs.

The frame allows the unit to be freely placed on the floor, without the need to mount it to a wall or other vertical surface. This is a convenient solution for installation in a boiler room, utility room, garage, or at the main water connection.

Operation monitoring thanks to pressure gauges

The set includes two pressure gauges that allow pressure values to be read. This is a very practical feature because it helps monitor pressure drop in the system and makes it easier to determine when the cartridges should be replaced.

The housing has a 1-inch thread, allowing the set to operate in installations requiring adequate flow capacity and a solid connection.

Two filter cartridges included

The set includes 2 filter cartridges responsible for preliminary mechanical protection and improving the organoleptic quality of water.

FCPS20M20B – 20-micron mechanical cartridge

FCPS20M20B is a 20-micron mechanical cartridge designed for 20'' BIG BLUE housings. It is characterized by very good contaminant absorption capacity. Its structure resembles foam, with a very large number of open-cell microbubbles on the surface.

The cartridge effectively removes sand, silt, rust, and other mechanical impurities from tap water. As a result, it helps protect household water installations and home appliances against deposits and premature wear.

The polypropylene nonwoven fabric used in this cartridge is resistant to chemicals and also to the growth of microorganisms. The cartridge is intended for the treatment of cold drinking water or general utility water. It should not be used for microbiologically contaminated water or water of unknown origin.

Advantages of the FCPS20M20B cartridge:

• manufactured in the EU
• removes mechanical impurities (rust, sand, silt, suspended solids)
• provides excellent filtration at low pressure drop
• chemical resistant
• resistant to microorganism growth

FCCBL20BB-S – carbon block cartridge made of coconut shell carbon

FCCBL20BB-S is a professional carbon cartridge made of specially sintered high-density activated carbon from coconut shells. This design ensures a high adsorption capacity for chlorine and other organic contaminants present in water.

Activated carbon effectively eliminates organic water contaminants. In installations supplied with tap water, it radically reduces chlorine levels. In applications related to well water treatment, it improves oxidizability and clarifies the water, while also clearly reducing organic contamination.

The sintered carbon block form is less prone to dusting than granular carbon, which is why this solution performs well in main water installations. Carbon from coconut shells stands out for its very large active surface area and high effectiveness in reducing chlorine, organic contaminants, and improving the utility parameters of water.

Advantages of the FCCBL20BB-S cartridge:

• removes up to 99% of free chlorine from water and chlorine derivatives
• removes organic contaminants
• removes phenol and benzene from water
• contains carbon from coconut shells
• removes heavy metals (Pb, Cu, Hg, Sr, Cs)
• softens water
• supports limescale reduction
• provides excellent filtration also under pressure drop conditions
• removes up to 85% of chlorine-derived pesticides
• removes mechanical impurities
• improves water taste and odor
• the longest service life of any carbon cartridge available on the market

BACinix™ antibacterial centering discs

The set includes 2 antibacterial centering discs. These elements were made using BACinix™ antibacterial technology based on nanosilver. This is a bacteriostatic agent that prevents the growth of microorganisms inside the filtration system, which helps extend operating time and protects the system against microbiological contamination.

Functions and advantages of the centering disc:

• facilitates correct cartridge installation
• prevents the growth of bacterial flora
• reduces the risk of pathogenic microorganism growth
• made of the highest quality materials in the European Union
• compatible with most BIG BLUE cartridges available on the market
• ensures proper cartridge positioning when tightening components
• reduces the likelihood of cartridge damage during installation
• BACinix™ technology based on nanosilver provides antimicrobial protection

Convenient operation and practical use

HHBB20A Aquafilter works well as a central water filtration system for a home, a starting point for further installation expansion, or an effective water preparation stage before additional treatment solutions. Thanks to the combination of mechanical and carbon filtration, the set helps reduce solid contaminants, chlorine, and undesirable compounds affecting water taste and odor.

This solution is particularly useful wherever protection of fittings, installations, and home appliances matters, as well as improving the comfort of everyday water use throughout the building.

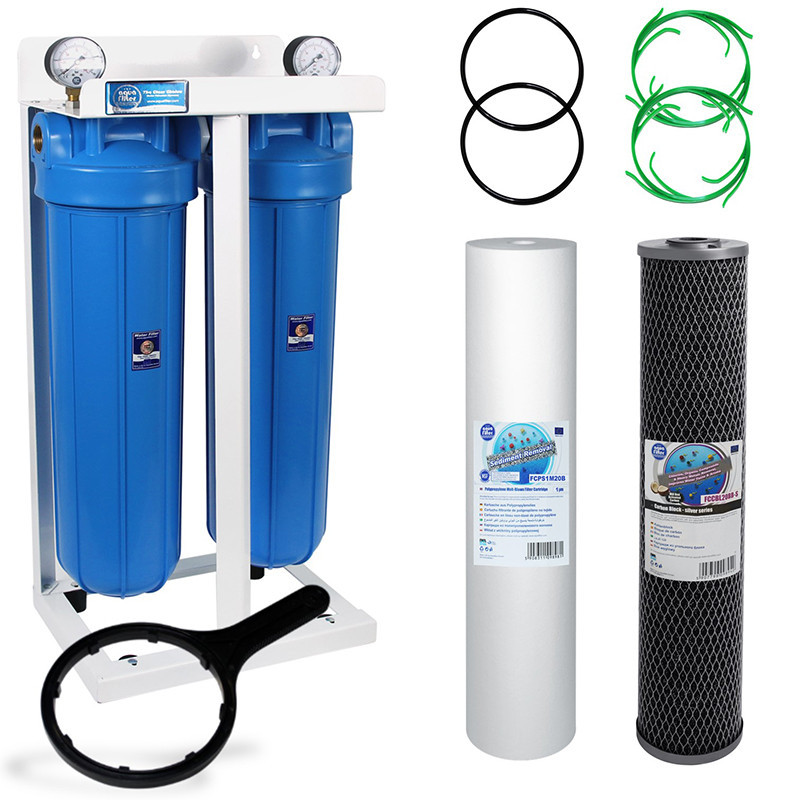

Set contents

• 2 Big Blue 20-inch inline housings
• metal structural frame
• 2 pressure gauges
• wrench for unscrewing the housings
• 2 antibacterial spacer rings
• FCPS20M20B mechanical cartridge
• FCCBL20BB-S carbon cartridge
