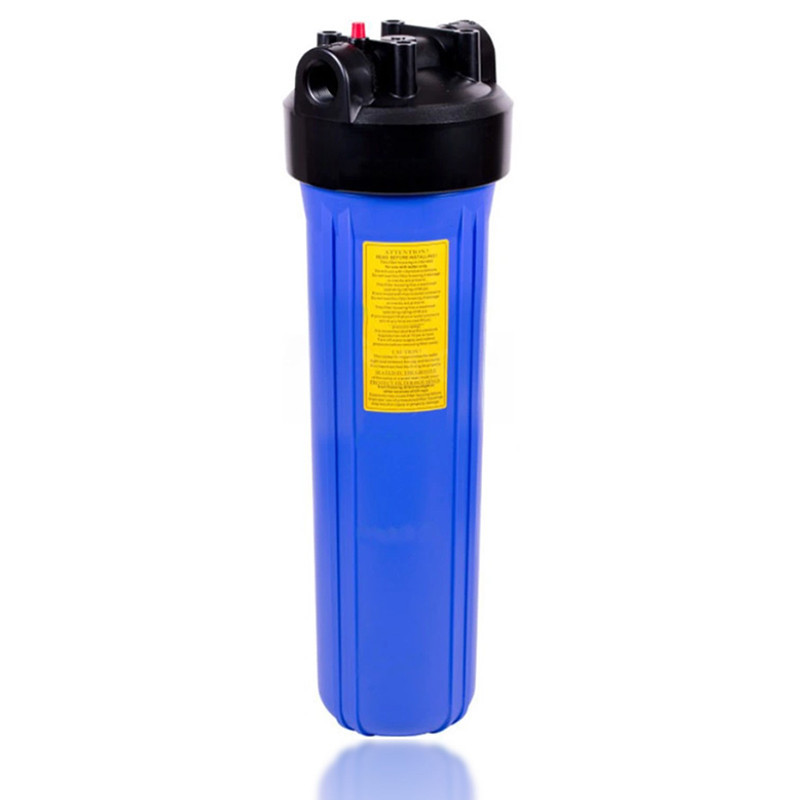

Big Blue® type housing for any water treatment cartridges with a height of 20" and a diameter of 4.5". Made from high-quality reinforced materials, it guarantees effective and long-lasting filter operation. The housing features a double o-ring seal.
- Consists of two parts: a blue cover and a head with a 1” thread. The blue cover protects the cartridge from the photosynthesis process (in case the filter is installed in a sunny location).
- Equipped with a vent valve that allows for the release of air trapped in the filter after cartridge replacement.
- The housing can be mounted individually or connected in series.
- The filter is installed on the pipe supplying cold water to the house or apartment.
- Due to its high efficiency, it is also used in industry.
- The housing installed before devices (such as softeners, iron removers, pressure tanks, or boilers) will effectively protect them from the accumulation of various types of contaminants*, while also increasing their lifespan.
- The housing is compatible with a wide range of 20” Big Blue® type mechanical, specialized, and carbon cartridges available on the market.
* depending on the type of cartridge used.
Technical parameters:
- Housing type: Two-part
- Thread diameter (inch): 1
- Operating temperature (°C): 2 - 45
- Max. operating pressure (bar): 6
- Color housing material: PP (polypropylene)
- Head material: PP (polypropylene)
- O-ring material (seal): NBR
- Number of o-rings under the head: 2
- Cartridge dimensions: 20 x 4 1/2 (52 cm x 11.5 cm)
- Air vent: Yes
