HHBB20A Aquafilter double big blue 20" water filter

Water treatment station built in a steel frame. The basic base for building a home water treatment system.

Professional construction from an excellent European water filter manufacturer, Aquafilter Europe LTD. The three-stage filter built in the frame, based on BIG BLUE 20 standard columns, allows for selecting the appropriate filter and treatment cartridge sets for specific water parameters.

The frame in which the housing set is built allows for the device to be freely placed on the floor without the need for mounting to a wall or other flat, vertical surface.

The system consists of 2 BIG BLUE 20" filter columns. It allows for selecting any cartridges matched to the contaminants present in the water, e.g.

Hard water, sedimentary scale:

• FCPS20M20B (mechanical - white)
• FCCST20BB (softening - yellow)

Excess iron in the water:

• FCPS20M20B (mechanical - white)
• FCCFE20BB (de-ironing - brown)

Excess chlorine in the water:

• FCPS20M20B (mechanical - white)
• FCCBL20BB-S (carbon - black)

Moreover, all these sets ensure:

• excellent purification of water from contaminants such as: sand, silt, rust
• improvement of taste and smell of water
• purification of water from organic contaminants
• removal of harmful substances from water such as heavy metals, phenol, benzene, pesticides.
• filter cartridges and sets of cartridges are available in our offer.

Included are 2 pressure gauges:

The manometers (pressure gauges) included in the set allow for reading the pressure values (a useful feature that facilitates determining when it is necessary to replace the cartridges). The body has a 1-inch thread.

2 antibacterial centering disks:

The disk is made using BACInix™ antibacterial technology utilizing nanosilver, which is a bacteriostatic agent preventing the growth of microorganisms inside the filtration system, allowing for extended operational time and protecting against microbiological contamination.

Centering disk:

• facilitates correct installation of the cartridge
• prevents the development of bacterial flora
• reduces the risk of pathogenic microorganisms development
• made from the highest quality materials in the European Union
• compatible with most BIG BLUE cartridges available on the market
• ensures proper positioning of the cartridge during component tightening
• reduces the likelihood of cartridge damage during installation
• BACinix technology based on nanosilver provides antimicrobial protection

Filter dimensions:

• width 560 mm
• depth 220 mm
• height 730 and 790 (with manometers)

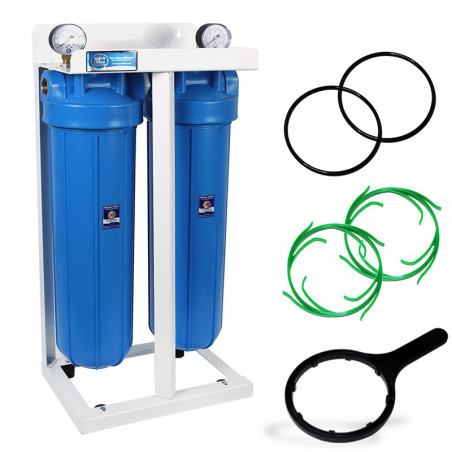

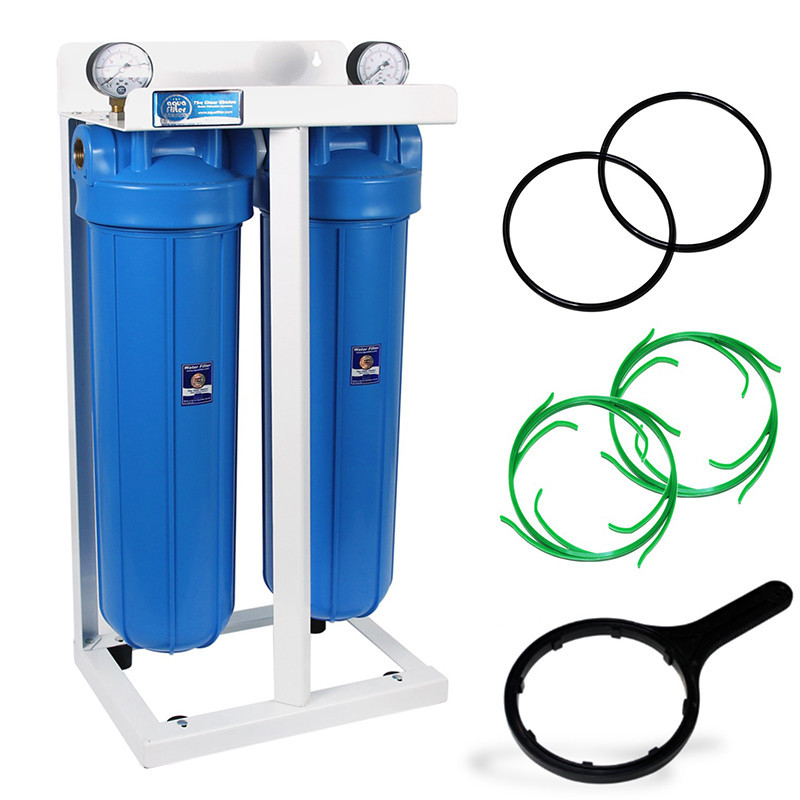

The set includes:

• 2 Big Blue 20-inch filter housings
• metal construction frame
• 2 manometers (pressure gauges)
• wrench for unscrewing housings
• 2 antibacterial spacer rings.
