FH20B1-B-WB Aquafilter big blue 20" filter housing

BIG BLUE 20" housing for cold water – a durable base for an efficient filtration system

The FH20B1-B-WB BIG BLUE inline housing consists of two main parts: a sump and a head fitted with a 1" brass thread. This design has been prepared for operation in cold water installations where high efficiency, convenient handling, and the possibility of expanding the filtration system are required.

This model can operate as a single filter housing or as part of a larger set connected in series. This makes it easy to adapt for both simple residential installations and more advanced water treatment systems.

Pressure gauge and air vent – more convenient operation monitoring

The housing is equipped with an air release valve that allows air trapped inside the filter to be released after replacing the filter cartridge. This is an important part of routine operation that helps ensure proper system start-up after service.

It also includes a pressure gauge for monitoring the contamination level of the cartridges. Pressure readings help determine when the filter cartridge needs replacement, making it easier to maintain the proper performance of the entire water filtration system.

Thanks to the use of the same slot for the air vent and the pressure gauge, the housing can be expanded with a second pressure gauge. This allows pressure measurement both at the water inlet and outlet of the housing. The second pressure gauge is not included and must be purchased separately.

An additional advantage is the brass insert mounted in the slot. It enables easy screwing in and unscrewing of the air vent and pressure gauge without the risk of damaging the slot thread, improving durability during repeated servicing.

Use in homes, apartments and industry

The housing is installed on the pipe supplying cold water to a house or apartment. Thanks to its high capacity, it is also used in industry, wherever effective pre-filtration or staged filtration is required.

FH20B1-B-WB installed upstream of devices such as:

• water softener,
• iron removal unit,
• boiler,

effectively protects them against the buildup of various types of contaminants. In practice, this translates into better installation protection and extended service life of the devices operating downstream of the filter.

This solution can also be part of larger water preparation systems that use multiple stages of filtration. In such a system, the BIG BLUE housing often serves as a mechanical or specialist stage before subsequent devices, and depending on the configuration, it can also work with installations in which the next stage is a reverse osmosis filter, RO filter, or reverse osmosis system.

Compatibility with 20" BIG BLUE cartridges

The FH20B1-B-WB housing is compatible with a wide range of 20" BIG BLUE cartridges available on the market. This provides great flexibility in selecting the filtration method for a specific application.

Supported cartridges:

• mechanical,
• specialist,
• carbon.

Thanks to this, the housing can be used as a universal base for various filtration and water treatment tasks – from protecting installations against mechanical contaminants to preparing water for further treatment stages.

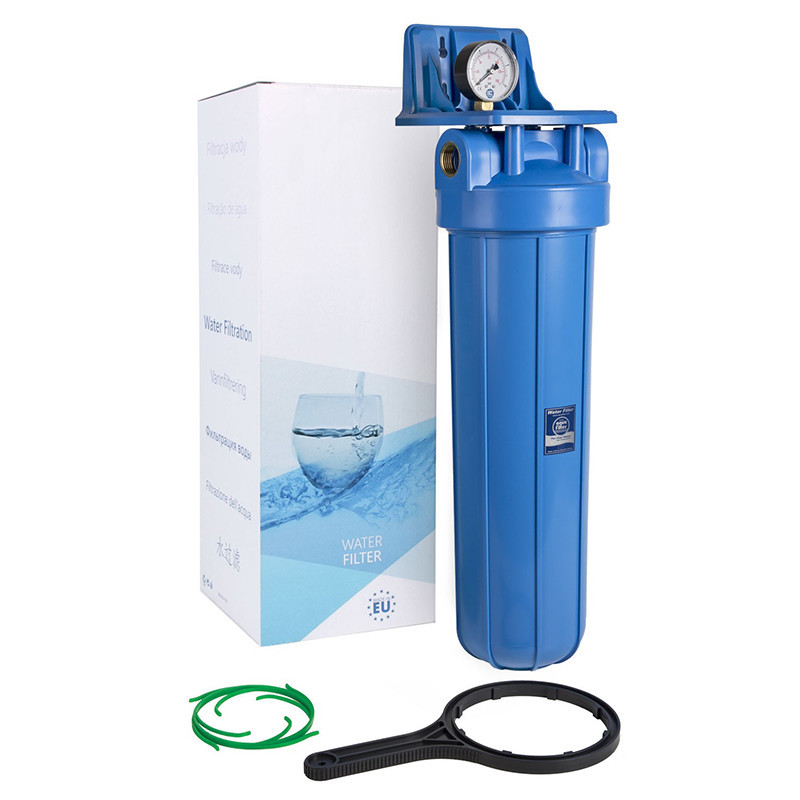

Set contents

The FH20B1-B-WB housing is available as a set including a complete range of basic accessories needed for installation and operation.

• mounting plate,
• reducer,
• screws,
• wrench,
• pressure gauge.

Installation and use

The housing can be installed individually or connected in series with other filter housings. This solution makes it easier to build an installation tailored to the required flow rate and the type of cartridges used.

Key benefits

• BIG BLUE 20" housing for cold water filtration,
• head with durable 1" brass thread,
• built-in air release valve for easier start-up after cartridge replacement,
• pressure gauge for monitoring cartridge contamination level,
• option to expand with a second pressure gauge,
• brass insert in the slot reducing the risk of thread damage,
• single or series installation possible,
• suitable for homes, apartments and industry,
• protection for devices such as a water softener, iron removal unit and boiler,
• broad compatibility with 20" BIG BLUE mechanical, specialist and carbon cartridges.

Technical specifications
