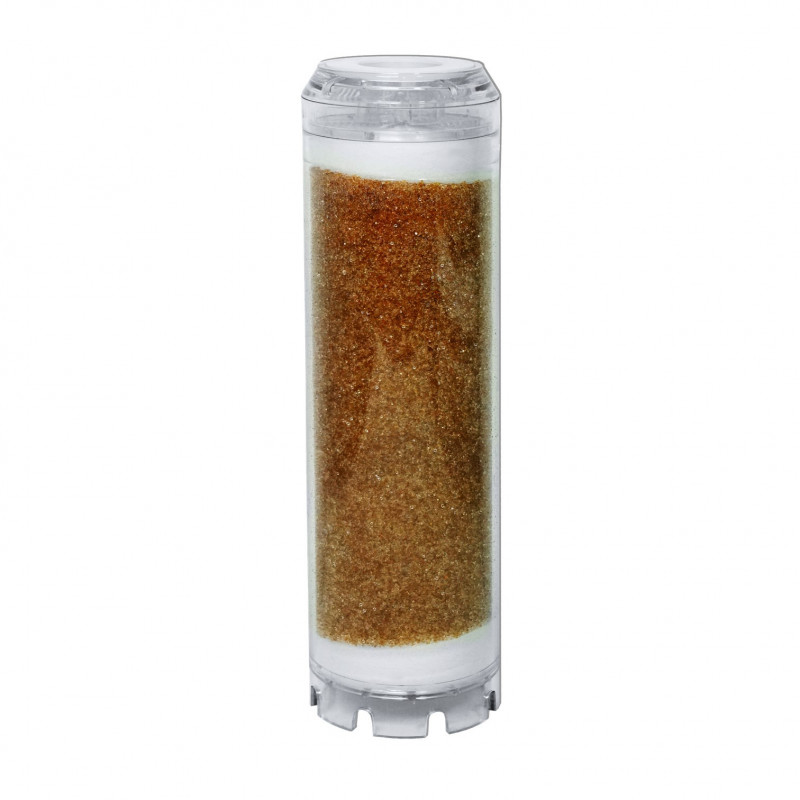

AV20 Aqua Vita demineralizer cartridge

10-inch demineralizing cartridge for precise final water polishing

The AV20 Aqua Vita model was designed as a 10-inch standard cartridge with water-demineralizing resin. Its purpose is to remove ions from water, making it possible to obtain water with zero or near-zero conductivity in applications where extremely high final purity matters.

This solution works particularly well where the primary water filtration system is already equipped with an osmotic membrane and an additional final polishing stage is still needed. In practice, the cartridge serves as an effective complement to a reverse osmosis installation.

Disassemblable reusable housing

A major advantage of this model is its disassemblable design. After removing the cartridge from the filter housing, the spent resin can be removed and replaced with new resin without the need to replace the entire cartridge body.

The housing is openable and intended for repeated use, which increases convenience during operation and helps better control usage costs. The standard 10" x 2 1/2" format makes it easy to fit the cartridge into compatible filter housings.

DEMI MB20 resin and effective ion removal

Inside the cartridge, DEMI MB20 resin is used, designed to remove all ions from water. It is this resin that is responsible for the demineralization effect and for reducing conductivity to a very low level.

The cartridge housing allows any filter media to be placed inside, while in this configuration DEMI MB20 resin is used for applications requiring high-quality water after final treatment.

Where AV20 Aqua Vita performs well

Final water polishing after reverse osmosis

A typical application for the cartridge is final water polishing after the membrane in reverse osmosis systems. This setup makes it possible to obtain water with zero or near-zero conductivity, which is important wherever standard post-membrane filtration is not enough.

The cartridge can be used as the final element of an installation in which a water filter based on a reverse osmosis system operates.

Preparing water for laboratory testing

The broad operating range of the demineralizing resin means the cartridge is used for preparing water for laboratory testing, where water with a very high degree of ionic purity is required.

Professional aquaristics, mainly marine

The cartridge is also used in professional aquaristics, especially marine aquaristics. The very low conductivity level and effective ion removal help prepare water suitable for demanding aquarium applications.

Key advantages

• standard 10-inch format, i.e. 10" x 2 1/2"
• DEMI MB20 resin for removing all ions from water
• ability to achieve zero or near-zero conductivity
• disassemblable, openable, reusable housing
• easy replacement of spent resin with new resin
• can be used in systems after an osmotic membrane
• suitable for laboratories and marine aquaristics

Set contents

The set includes:

• AV20 Aqua Vita demineralizing cartridge in the 10-inch standard
• protective sponges securing the cartridge inlet and outlet against resin escaping
