3/4" Aquafilter tubular body antibacterial cartridges

Three-piece tubular housing for system protection and convenient filtration

The Aquafilter 3/4" model was designed for quick installation and effective protection of domestic water systems. It is a solution that helps limit the passage of mechanical impurities to further parts of the installation, fittings, and selected appliances.

The transparent sump allows visual assessment of the contamination level of the cartridge placed inside the housing. This makes it easier to monitor the right time for cartridge replacement without having to disassemble the entire set.

The 3-piece housing ensures high sealing performance while also making servicing and cartridge replacement easier. The head is equipped with a brass thread, which increases connection durability and supports safe operation in typical water installations.

Main advantages of the Aquafilter 3/4" housing

• three-piece housing for quick installation and convenient use,
• transparent sump for visual inspection of cartridge contamination level,
• head with brass thread,
• pressure relief valve for easier start-up after cartridge replacement,
• durable construction made of high-quality plastic,
• suitable for use with mains water and private well water,
• compatible with a wide range of 10" cartridges,
• can be installed as a single unit or in series.

Housing construction

The three-piece housing consists of:

• a head with brass thread,
• a ring,
• a transparent sump.

This design combines ease of use with good sealing performance and simple access to the inside of the housing during cartridge replacement.

Application

The tubular housing is one of the components needed to independently create a functional system for proper water filtration. It can operate as a standalone pre-filtration element or as part of a more advanced treatment system.

The product is suitable for use with both mains water and water from a private intake. The housing is installed on the cold water supply pipe to the home, especially where water demand is moderate.

It can also be installed before expensive household appliances such as a washing machine and dishwasher, where it helps protect them against the buildup of various types of contaminants.

Thanks to the 10" standard, the housing works with a wide range of mechanical, specialist, and carbon cartridges, including softening, iron removal, and antibacterial cartridges. This makes it a flexible part of an installation and also a useful addition to a home reverse osmosis system or another water filtration system.

FCPS20-AB Aquafilter antibacterial cartridges included

The set includes 5x FCPS20-AB Aquafilter antibacterial cartridges. This is a 10-inch polypropylene foam cartridge made using Melt-blown technology, designed to retain mechanical impurities such as sand, rust, and silt, with a filtration accuracy of 20 microns.

The cartridge uses BACinix™ nanosilver technology. The nanosilver particles used in the cartridge structure create an environment that limits the growth of microorganisms by acting bacteriostatically. This solution supports cartridge hygiene and helps extend its service life.

Properties of the FCPS20-AB cartridge

• used for cold and hot domestic water,
• the cartridge has PZH approval and NSF certification,
• high rigidity and durability of the cartridges,
• the cartridges retain all kinds of mechanical impurities: sand, rust, silt,
• made of 100% pure polypropylene without any additives.

Installation and operation

For proper installation, the housing should be suspended on a mounting plate. This solution improves the stability of the entire system and facilitates later servicing.

The housing can be installed individually or connected in series with other housings, allowing a more advanced water filtration system to be built to match water quality and the expected treatment effect.

The pressure relief valve allows the air collected in the filter to be released after cartridge replacement. It is a practical feature that makes restarting the installation easier and improves everyday user comfort.

The product is made of high-quality materials. The housing is characterized by good durability and resistance to the harmful effects of liquids. The entire unit was manufactured and assembled in the European Union.

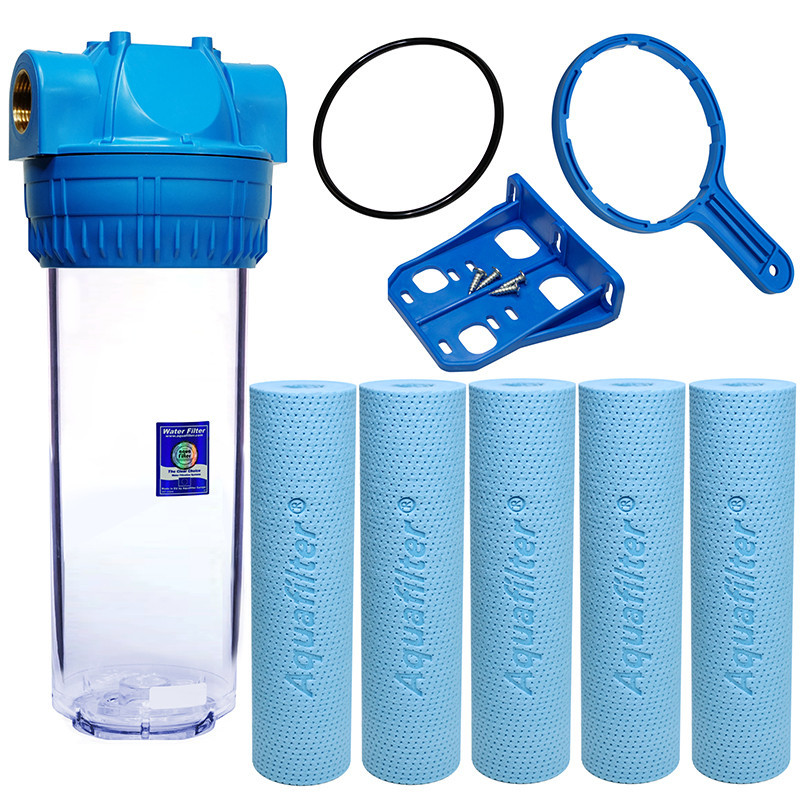

Set contents

• 3-piece Aquafilter housing,
• mounting plate + screws,
• wrench,
• O-ring,
• 5x FCPS20-AB Aquafilter antibacterial foam cartridge.

Additional important information

• number of O-rings under the head: 1
