Set of inserts FCPS20M10B FCCST10BB FCCBL10BB-S is a ready-made set for 10-inch Big Blue housing filters, designed for effective water filtration and treatment in domestic installations. The set combines three stages of operation: mechanical filtration, softening, and carbon filtration, which helps protect the installation, improves the taste and smell of water, and reduces scale buildup. It is a practical water filter and part of a larger water filtration system that works well with both tap water and selected general-purpose applications.
Set of 3 Aquafilter inserts for 10” Big Blue housings
The set includes three complementary Aquafilter® filter inserts: FCPS20M10B, FCCST10BB, and FCCBL10BB-S. Each filter insert is responsible for a different stage of water treatment, so the set can be used as an expanded pre-filtration kit and for improving the quality of utility water.
The inserts are dedicated to 10” Big Blue® housing filters. This solution works well where higher capacity, effective installation protection, and better preparation of water for everyday use at home are important. The set can also support installations where an additional water filter, an osmosis filter, a reverse osmosis system, or reverse osmosis is used as a further treatment stage.

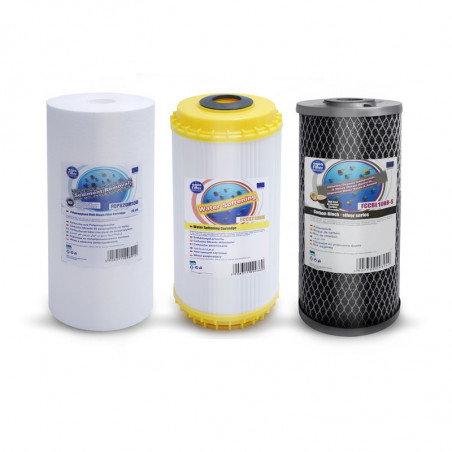

What is included in the set
- FCPS20M10B – 20 micron mechanical insert
- FCCST10BB – softening insert
- FCCBL10BB-S – carbon insert in the form of a carbon block
How this filtration set works
The set works in multiple stages. First, water passes through the mechanical insert, which traps solid particles and protects the downstream components of the installation. Next, the softening insert reduces water hardness through an ion-exchange process. The final stage is the carbon block, which improves the organoleptic properties of the water and reduces selected chemical and organic contaminants.
This setup helps protect household water installations, appliances, and fittings at the same time, while also improving the comfort of everyday water use.
FCPS20M10B mechanical insert
Pre-filtration and installation protection
FCPS20M10B is a 20-micron mechanical insert designed for Big Blue type housings. It stands out for its very good contaminant retention. Its structure resembles foam, with a large number of open-cell microbubbles on the surface.
The insert effectively removes sand, silt, rust, and other mechanical impurities from tap water. As a result, it helps protect household water installations and appliances from the buildup of solid particles and excessive wear of working components.
The insert is made of polypropylene nonwoven fabric resistant to chemicals and the growth of microorganisms. It is intended for treating cold drinking water or utility water.
The FCPS20M10B insert should not be used for microbiologically contaminated water or water of unknown origin.
Advantages of the FCPS20M10B insert
- made in the EU
- removes mechanical contaminants (rust, sand, silt, suspended matter)
- ensures excellent filtration with low pressure drop
- resistant to chemicals
- resistant to the growth of microorganisms
FCCST10BB softening insert
Reduction of water hardness
FCCST10BB is a water-softening insert filled with a fine-grained ion-exchange bed. The filtration process involves exchanging magnesium and calcium ions present in the water for sodium ions as water flows through the bed.
The result is water that is less prone to forming deposits. Softened water helps reduce unsightly residue in coffee and tea, and also protects household appliances against limescale buildup.
The insert is intended for treating cold drinking water or utility water.
The FCCST10BB insert should not be used for microbiologically contaminated water or water of unknown origin.
Advantages of the FCCST10BB insert
- prevents limescale buildup
- has PZH hygienic approvals
- made from materials certified by NSF and FDA
- has a final filter that prevents granular particles from escaping beyond the filter
FCCBL10BB-S carbon insert
Carbon block made from coconut shells
FCCBL10BB-S is a professional carbon insert made of special sintered activated carbon from coconut shells with high density. This solution provides high adsorption capacity for chlorine and other organic contaminants present in the water.
Activated carbon effectively eliminates organic contaminants. When used in tap water installations, it drastically reduces chlorine levels. In treatment of water from a private well, it improves oxidizability and clarifies the water. In practice, this means better taste and smell as well as clearly improved usability.
The insert in the form of a sintered carbon block is less prone to dusting than classic carbon granules, which is why the insert is also recommended for main water installations. Coconut shell carbon is distinguished by a very large active surface area, which translates into high effectiveness in reducing chlorine and organic contaminants and improving the water's oxidizability.
Advantages of the FCCBL10BB-S insert
- removes up to 99% of free chlorine from water and chlorine-derived substances
- removes organic contaminants
- removes phenol and benzene from water
- contains carbon from coconut shells
- removes heavy metals (Pb, Cu, Hg, Sr, Cs)
- softens water
- helps reduce boiler scale
- ensures excellent filtration also under pressure drop
- removes up to 85% of chlorine-derived pesticides
- removes mechanical contaminants
- improves the taste and smell of water
- the longest service life of a carbon insert among all those available on the market
Application of the set of inserts
The set has been designed for filtering cold drinking water and utility water in 10” Big Blue housings. It can be used as a standalone water quality improvement system or as an important part of a larger setup whose task is comprehensive water treatment at home.
- protection of the water installation against sand, rust, silt, and suspended matter
- reduction of limescale buildup in household appliances
- reduction of chlorine and improvement of water taste and smell
- support for systems preparing water for further purification
- use in domestic and utility installations with 10” Big Blue housings
Operation and important notes
To maintain high filtration efficiency, the inserts should be used according to their intended purpose, i.e. in cold drinking water or utility water installations. Regular replacement of worn inserts helps maintain stable operation of the filtration system and installation protection.
The set is not intended for treating microbiologically contaminated water or water of unknown origin. The inserts are dedicated to 10-inch Big Blue® housing filters.
Technical specifications
| Parameter | Value |
|---|
| Set name | Set of inserts FCPS20M10B FCCST10BB FCCBL10BB-S |
|---|
| Brand | Aquafilter® |
|---|
| Purpose | Filtration and treatment of cold drinking water or utility water |
|---|
| Compatibility | 10” Big Blue® housing filters |
|---|
| Element 1 | FCPS20M10B – mechanical insert |
|---|
| Mechanical insert filtration precision | 20 microns |
|---|
| Mechanical insert material | Polypropylene nonwoven fabric |
|---|
| Element 2 | FCCST10BB – softening insert |
|---|
| Softening insert bed | Fine-grained ion-exchange bed |
|---|
| Element 3 | FCCBL10BB-S – carbon insert |
|---|
| Type of carbon insert | Sintered activated carbon block |
|---|
| Raw material of the carbon insert | Activated carbon from coconut shells |
|---|
| Application | Domestic and utility installations |
|---|
