The FCPS20M10B FCCBKDF210BB FCCST10BB set of inserts is a practical set for 10-inch Big Blue® filter housings, designed for effective filtration and treatment of cold drinking water or utility water. The set includes three complementary inserts: a mechanical insert, a 3-in-1 carbon-softening insert with KDF media, and a softening insert. This water filtration system helps reduce solid contaminants, improve the taste and odor of water, and reduce the problem of hard water, protecting the plumbing system and household appliances. It is a good choice wherever an efficient water filter and a well-matched filter cartridge for Big Blue® housings are important.
Complete set of inserts for 10” Big Blue® housings
The Aquafilter® set includes three inserts with different functions, which together support everyday water treatment in domestic installations. The combination of mechanical filtration, reduction of selected chemical contaminants, and softening makes the set well suited as part of an advanced water filtration system.

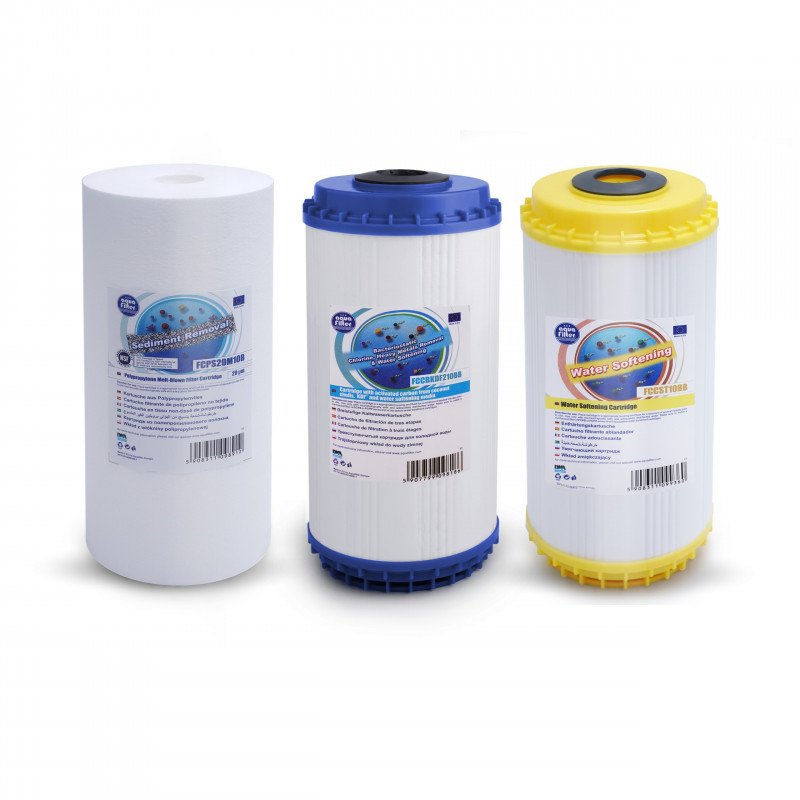

The set includes:
- FCPS20M10B – 20-micron mechanical insert,
- FCCBKDF210BB – 3-in-1 carbon-softening insert with KDF® media,
- FCCST10BB – softening insert.
The inserts are intended for 10-inch Big Blue® filter housings.
What does this set of inserts offer?
The set has been composed to address several of the most common problems related to the quality of utility and drinking water. The individual inserts work in different areas, so the set supports system protection, improves water use comfort, and helps reduce scale buildup.
- removes mechanical contaminants such as rust, sand, silt, and suspended solids,
- helps improve the taste and odor of water,
- supports the reduction of selected chemical and organic substances,
- reduces water hardness by exchanging calcium and magnesium ions for sodium ions,
- protects the household water system and home appliances from deposits and contaminants.
FCPS20M10B insert – 20-micron mechanical filtration
FCPS20M10B is a 20-micron mechanical insert designed for Big Blue® housings. It stands out for very good contaminant absorption. Its structure resembles foam, and the surface contains a large number of open-cell microbubbles, which promotes effective retention of solid particles.
The insert effectively removes sand, silt, rust, and other mechanical contaminants from tap water. As a result, it helps protect household water systems and home appliances from the negative effects of deposits.
The insert is made of polypropylene nonwoven fabric resistant to chemicals and the growth of microorganisms. It is intended for treating cold drinking water or utility water.
Advantages of the FCPS20M10B insert
- made in the EU,
- removes mechanical contaminants (rust, sand, silt, suspended solids),
- provides excellent filtration with low pressure drop,
- chemical resistant,
- resistant to microorganism growth.
FCCST10BB insert – effective water softening
FCCST10BB is a water softening insert filled with a fine-grain ion-exchange medium. It works by exchanging magnesium and calcium ions as water flows through the medium for sodium ions.
The result is softened water, which helps reduce unsightly residue in coffee and tea and supports the protection of household appliances against scale buildup.
The insert is intended for treating cold drinking water or utility water.
Advantages of the FCCST10BB insert
- prevents scale buildup,
- has PZH hygienic approvals,
- made from materials certified by NSF and FDA,
- has a final filter that prevents granulate particles from escaping beyond the filter.
FCCBKDF210BB insert – three-stage 3-in-1 action
FCCBKDF210BB is a three-stage specialty insert by Aquafilter®, designed for 10-inch Big Blue® filter housings. The insert design is based on three filtration layers, each responsible for a different stage of water treatment.
Structure and operation of the three layers
- First layer – KDF® media: removes hydrogen sulfide, pesticides, heavy metals (lead, arsenic, mercury, cadmium) from the water and reduces the concentration of iron ions. The media also has bacteriostatic properties that prevent bacteria from developing on the filter bed.
- Second layer – water softening media: converts calcium and magnesium ions, the so-called hardness minerals, into sodium ions.
- Third layer – coconut shell carbon: removes chlorine, chlorinated solvents, aromatic hydrocarbons from the water, improves the taste and odor of water, and also reduces polyaromatic compounds, phenol, benzene, and organic substances.
The set is intended for treating cold drinking water or utility water. The inserts should not be used for microbiologically contaminated water or water of unknown origin.
Use in a home water filtration system
The set of inserts can be an effective addition to an installation based on Big Blue® housings wherever mechanical filtration, improvement of organoleptic parameters, and reduction of water hardness are needed. Such solutions are often used as part of preliminary water treatment in the home, and in more advanced installations they can also work with devices such as a reverse osmosis filter, osmosis filter, or reverse osmosis system, supporting the protection of subsequent filtration stages.
Set contents
- 1 x FCPS20M10B mechanical insert,
- 1 x FCCBKDF210BB 3-in-1 insert,
- 1 x FCCST10BB softening insert.
Technical specification
| Product type | Set of water filter inserts |
|---|
| Brand | Aquafilter® |
|---|
| Insert models in the set | FCPS20M10B, FCCBKDF210BB, FCCST10BB |
|---|
| Compatibility | 10” Big Blue® filter housings |
|---|
| Insert type 1 | Mechanical |
|---|
| Mechanical filter precision | 20 microns |
|---|
| Insert type 2 | Three-stage 3-in-1 carbon-softening insert with KDF® media |
|---|
| Insert type 3 | Softening |
|---|
| Water intended for | Cold drinking water or utility water |
|---|
| Mechanical insert material | Polypropylene nonwoven fabric |
|---|
| Mechanical insert features | Resistance to chemicals and microorganism growth |
|---|
| Media in the softening insert | Fine-grain ion-exchange media |
|---|
| Additional feature of the softening insert | Final filter preventing granulate particles from escaping beyond the filter |
|---|
| Origin of the mechanical insert | Made in the EU |
|---|
