Aquafilter® cartridge set designed for water filtration. FCPS2010B, FCCBHD10BB, FCCBKKDF10BB (mechanical cartridge, carbon cartridge, carbon cartridge with KDF) Cartridges dedicated to 10” Big Blue® type filter housings.
Antibacterial action, Chlorine, taste and odor reduction, Iron removal, Sediment removal
View full specifications
Filtration rating
20 µm
Housing standard
Big Blue 10″
Filter media
Activated carbon, KDF, Polypropylene
Product type
Cartridge set
Number of items / cartridges
3 szt.
Description
Set of inserts FCPS20M10B FCCBHD10BB FCCBKDF10BB is a 3-stage Aquafilter set for 10-inch Big Blue® housing filters, designed for effective filtration and treatment of cold water. The set includes: a mechanical cartridge, a carbon cartridge, and a carbon cartridge with KDF®, so it supports installation protection, improves water taste and odor, and reduces selected mechanical and chemical contaminants. This is a practical water filtration system for domestic and utility applications, suitable as a water filter in advanced pre-filtration setups, also before more advanced solutions such as a reverse osmosis filter or reverse osmosis system.

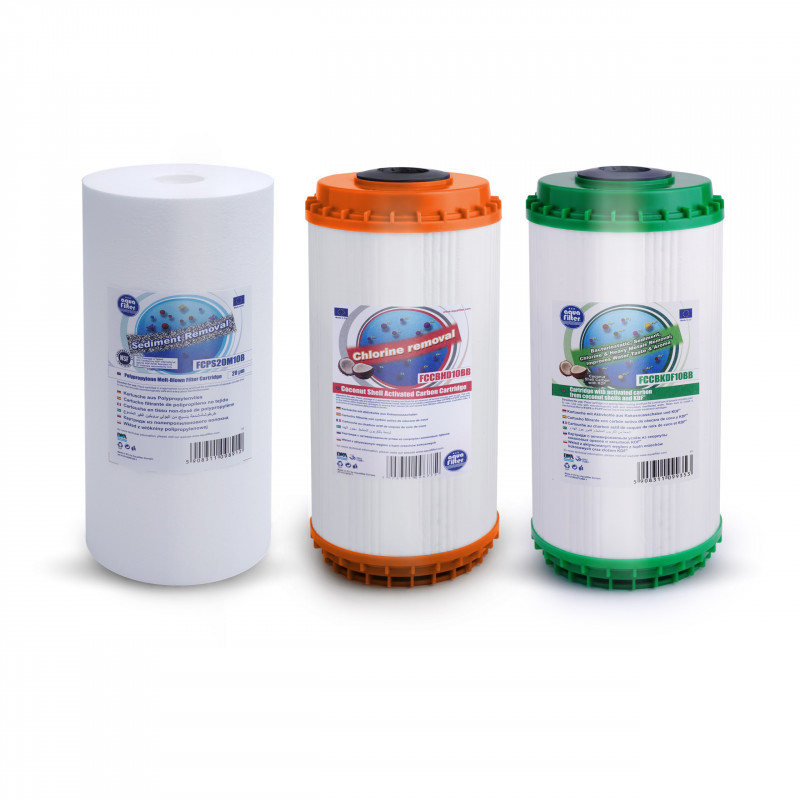

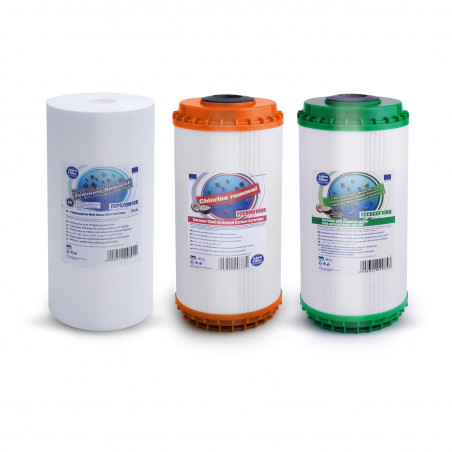

3-stage set of cartridges for 10” Big Blue® housings
The set includes three complementary filter cartridges for 10” Big Blue® housings: FCPS20M10B, FCCBHD10BB, and FCCBKDF10BB. Each filter cartridge is responsible for a different stage of water purification, so the set helps protect the water installation, reduce the presence of chlorine and organic compounds, and improve the utility parameters of the water at the same time.
This solution is intended for treating cold drinking water or utility water in installations using 10” Big Blue® housing filters.
What is included in the set
FCPS20M10B – 20-micron mechanical cartridge for Big Blue® housings
FCCBHD10BB – 10" Big Blue® carbon cartridge filled with high-quality coconut shell carbon
FCCBKDF10BB – 10" Big Blue® cartridge with activated carbon and KDF® media
How this filtration set works
1. FCPS20M10B – 20-micron mechanical filtration
The FCPS20M10B mechanical cartridge is designed for Big Blue® housings and stands out for its very good contaminant absorption. Its structure resembles foam, and its surface contains a large number of open-cell microbubbles, which promotes effective retention of solid impurities.
The cartridge effectively removes sand, silt, rust, and other mechanical contaminants from tap water. As a result, it helps protect domestic water installations and household appliances from deposits and premature wear. The polypropylene nonwoven fabric used in this model is resistant to chemicals and to the growth of microorganisms.
provides excellent filtration with low pressure drop
resistant to chemicals
resistant to microorganism growth
2. FCCBHD10BB – carbon cartridge with coconut shell carbon
FCCBHD10BB is a 10-inch cartridge for Big Blue® housings, filled with high-quality coconut shell carbon. The cartridge is designed for treating cold drinking water or utility water and is equipped with a final filter that prevents media particles from escaping outside the cartridge.
This model removes up to 99% of free chlorine, chlorinated solvents, and aromatic hydrocarbons from the water, resulting in improved taste and odor. It also reduces chlorinated pesticides by up to 85%, as well as polyaromatic compounds, phenol, benzene, and organic substances.
Advantages of the FCCBHD10BB cartridge:
contains a high-quality media bed (coconut shell carbon)
removes up to 99% of free chlorine from water
removes organic contaminants
removes phenol and benzene from water
removes certain pesticides
improves taste and odor of water
3. FCCBKDF10BB – carbon cartridge with KDF®
FCCBKDF10BB is a 10-inch Aquafilter® cartridge for Big Blue® housings, combining the action of activated carbon and KDF® media. This combination broadens the filtration range to selected chemical contaminants and supports maintaining high media performance.
The cartridge removes heavy metals from water, such as arsenic, cadmium, lead, and mercury, as well as iron compounds, hydrogen sulfide, and pesticides. The activated carbon used in it reduces chlorine, chlorinated solvents, and aromatic hydrocarbons, improving the taste and odor of the water. It also limits the presence of polyaromatic compounds, phenol, benzene, and organic substances.
The KDF® media has bacteriostatic properties, which prevents the growth of bacterial flora on the filter media. The cartridge is intended for treating cold drinking water or utility water and has a final filter that prevents media particles from escaping outside the cartridge.
Advantages of the FCCBKDF10BB cartridge:
contains activated carbon and KDF® media
removes heavy metals (arsenic, cadmium, lead, mercury)
removes iron compounds and hydrogen sulfide
removes pesticides
removes up to 99% of free chlorine from water
removes organic substances
removes phenol and benzene from water
improves taste and odor of water
Key benefits of using the set
3-stage water filtration in one set
protection of the water installation and household appliances against mechanical contaminants
chlorine reduction and improved water taste and odor
reduction of selected organic compounds, pesticides, and chemical substances
can be used as an effective pre-filtration stage before more precise water purification systems
compatibility with popular 10” Big Blue® housing filters
Important operating information: the cartridges are intended for treating cold drinking water or utility water. The FCPS20M10B cartridge should not be used for microbiologically contaminated water or water of unknown origin. The cartridges should be installed in compatible 10” Big Blue® housings and replaced according to the level of wear and the quality of the feed water.
Technical specifications
Type of product
Set of 3 water filter cartridges
Brand
Aquafilter®
Models in the set
FCPS20M10B, FCCBHD10BB, FCCBKDF10BB
Intended use
Filtration and treatment of cold drinking water or utility water
Compatibility
10” Big Blue® housing filters
Mechanical cartridge
FCPS20M10B, 20 microns
Mechanical cartridge material
Polypropylene nonwoven fabric
Removed mechanical contaminants
Rust, sand, silt, suspended solids, and other mechanical contaminants
Bacteriostatic, prevents the growth of bacterial flora on the filter media
Final filter in carbon cartridges
Yes, prevents media particles from escaping outside the cartridge
Application area
Domestic and utility installations
Indicated origin for the mechanical cartridge
Manufactured in the EU
FAQ
Which housings does this set of cartridges fit?
The set is designed for 10-inch Big Blue® housing filters.
What is included in the set?
The set includes three cartridges: FCPS20M10B (20-micron mechanical), FCCBHD10BB (carbon cartridge), and FCCBKDF10BB (carbon cartridge with KDF®).
What contaminants does the FCPS20M10B mechanical cartridge remove?
The cartridge primarily retains mechanical contaminants such as rust, sand, silt, suspended solids, and other solid particles present in tap water.
Does this set improve the taste and odor of water?
Yes. The carbon cartridges are responsible for improving taste and odor by reducing chlorine, chlorinated solvents, and selected aromatic hydrocarbons.
Does the FCCBHD10BB cartridge remove chlorine?
Yes, the FCCBHD10BB cartridge removes up to 99% of free chlorine from water. It also reduces selected organic contaminants, phenol, benzene, and some pesticides.
How does the FCCBKDF10BB cartridge with KDF® work?
The FCCBKDF10BB model combines the action of activated carbon and KDF® media. This helps reduce chlorine, organic substances, phenol, benzene, pesticides, as well as heavy metals such as arsenic, cadmium, lead, and mercury. The KDF® media also has bacteriostatic properties.
Is the set suitable for cold water?
Yes, the cartridges are intended for treating cold drinking water or utility water.
Can this set work as pre-filtration before reverse osmosis?
Yes, this set can serve as effective pre-filtration before systems such as a reverse osmosis filter or reverse osmosis system, helping reduce mechanical contaminants and some compounds affecting water quality.
Can the FCPS20M10B cartridge be used for water of unknown origin?
No. The FCPS20M10B cartridge should not be used for microbiologically contaminated water or water of unknown origin.
