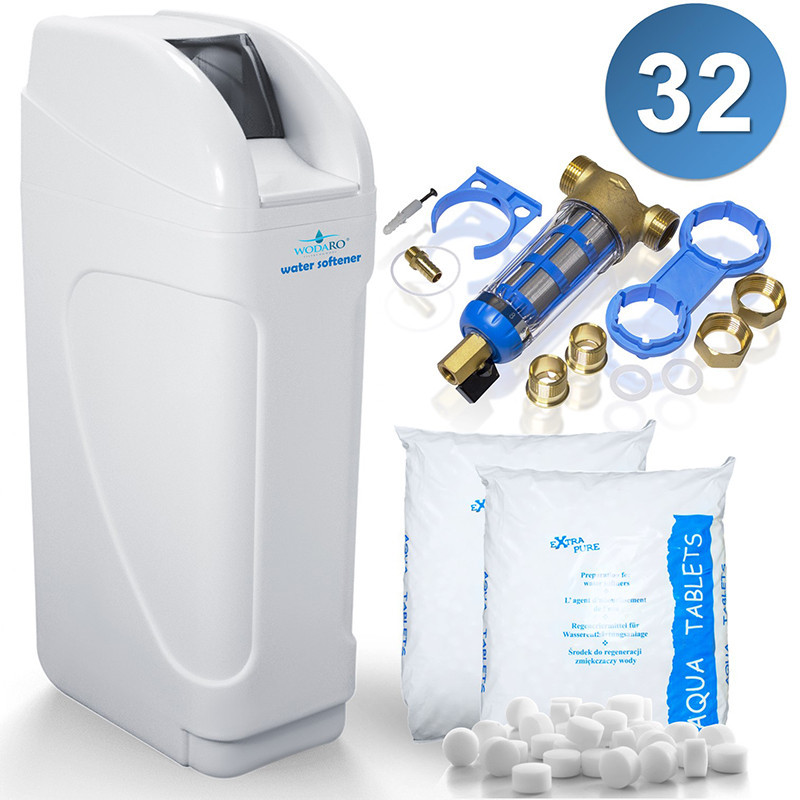

WodaRO MONO 32 monospheric water softener

Soft water where it matters most

The WodaRO MONO 32 softener has been designed to remove water hardness in single-family homes, restaurants, car washes, boiler rooms, and other facilities where utility water should be better prepared for everyday use.

High water hardness, associated with the presence of calcium and magnesium compounds, is a common problem. It is responsible for limescale buildup, increased consumption of laundry and cleaning agents, heat energy losses, and faster wear of heating equipment and household appliances.

Using a softener for utility water also brings measurable economic benefits. In household or hotel conditions, soft water can reduce the consumption of laundry detergents and cleaning products by up to 50%. Additionally, it is more comfortable in daily contact with skin and hair: it does not dry out the skin and helps reduce dandruff and allergy problems.

How does the WodaRO MONO 32 softener work?

The softening process involves removing from water the components responsible for its hardness. In practice, this means exchanging calcium and magnesium ions for sodium ions as water flows through the ion exchange resin.

When the ion exchange capacity of the media becomes exhausted, the unit performs regeneration using a brine solution. This restores the media’s ability to continue working, allowing the softener to maintain consistent effectiveness in everyday operation.

Key features and benefits

• includes a by-pass
• includes outlet water hardness adjustment
• corrosion-resistant fiberglass-reinforced tank with increased durability
• does not shut off water during regeneration
• LEWATITT S1567 monospheric resin
• programmer in Polish and backlit display

The compact housing makes installation in utility rooms easier, and the clear controls support convenient operation. Outlet water hardness adjustment allows the unit’s operation to be better matched to installation requirements and user preferences.

LEWATITT S1567 monospheric resin

The unit uses LEWATITT S1567 monospheric resin. This is a key component responsible for the effectiveness of the ion exchange process and the stable operation of the softener.

Benefits of using monospheric resin

• high flow rates during media exhaustion and regeneration
• optimal use of total exchange capacity
• low water consumption for media rinsing
• uniform flow of water or regenerant solutions through the media, resulting in a uniform operating zone (exchange zone)

Thanks to this, the WodaRO MONO 32 works well as an effective part of an installation responsible for utility water preparation and protection of the entire system. In practice, it can be an important complement to solutions such as a reverse osmosis system or reverse osmosis filter, because reducing water hardness helps better protect downstream installation components.

Operation and everyday use

The softener operates automatically and uses volumetric-time regeneration control. This means its operation is adjusted to water consumption and operating settings, supporting efficient and predictable functioning of the entire system.

For proper operation, salt must be replenished in the brine tank. Regeneration takes place using brine, and the average salt consumption per cycle is 3.5 kg. Thanks to the 70-liter salt tank capacity, the unit is prepared for regular operation without requiring very frequent servicing.

Applications

The WodaRO MONO 32 model is intended for use in places where hard water causes scale buildup and increases the operating costs of installations and equipment.

• single-family homes
• restaurants
• car washes
• boiler rooms
• hotels and other facilities using utility water

Additional important information

• Height: 114 cm
• Width: 33 cm
• Depth: 54 cm

Technical specification
