WodaRO ECO DUO 32 water softener 2in1 carbon

Why choose WodaRO ECO DUO 32?

WodaRO ECO DUO 32 was designed as a compact 2-in-1 water softener for homes where both effective performance and convenience of everyday use matter. It combines a high-quality compact housing, aesthetic design, and carefully selected components, making it suitable for installations that require reliable and automatic operation.

Inside the device there is a total of 32 liters of media: 25 liters of high-quality PUROLITE C100-E ion exchange resin and 7 liters of carbon media made from coconut shells. This configuration makes it possible to obtain water better prepared for everyday use throughout the home.

Main advantages of the device

• High-quality compact housing.
• Aesthetic design.
• High quality of the components used.
• The set includes a BY-PASS valve and a MIXING valve for setting the final water hardness.
• Automatic and maintenance-free operation.
• High-quality ion exchange resin.
• Coconut shell carbon media that reduces chlorine and organic substances, improving the taste and smell of water.
• One of the best and most reliable BNT7650 controller models available on the market.
• Brine float valve providing overflow protection.
• Excellent access to the salt filling opening.
• Detailed installation manual in Polish.
• Effective protection of heating boilers and central heating systems against limescale buildup.
• Extended service life of household appliances such as washing machines and dishwashers, as well as lower energy consumption.
• Increased detergent efficiency by up to 40%.
• Energy savings of up to 30%.
• Soft, clean, and safe water throughout the home.
• More durable fabrics that are soft to the touch and retain intense colors.
• Healthy, smooth skin, shiny hair, and no toxic chlorine fumes during bathing.

How does the 2-in-1 softener with coconut carbon work?

1. BNT7650 control valve

The softener is equipped with a BNT7650 series controller with a menu in Polish, making system configuration and operation easy and intuitive. The valve is also equipped with a residual hardness mixing valve, which allows precise setting of the outlet water hardness.

2. Coconut shell carbon media

At the beginning of the filtration process, water is directed to the carbon media. At this stage, chlorine and organic substances are reduced. The activated carbon made from coconut shells improves the taste and smell characteristics of water, and its high adsorption capacity helps reduce organic contaminants to trace amounts.

3. PUROLITE C100-E ion exchange resin

After flowing through the carbon media, the water passes to the softening media. At this stage, calcium and magnesium ions are exchanged for sodium ions. Water prepared in this way is dechlorinated, safe, and soft, and is then discharged into the water installation. The ions responsible for water hardness, namely calcium and magnesium, are removed to the drain during the device regeneration process.

This solution fits well into a modern approach to domestic water treatment. If a reverse osmosis filter, RO filter, or another reverse osmosis system for drinking water is already operating in the kitchen area, WodaRO ECO DUO 32 can be responsible for protecting the entire installation and ensuring the comfort of soft water use in the bathroom, laundry room, and heating system.

Ease of use and real benefits at home

Softened and pre-cleaned water helps reduce limescale buildup in pipes, fittings, heating boilers, and central heating system components. This translates into more stable device operation, easier cleaning, and a lower risk of premature equipment wear.

In practice, this also means better operating conditions for the washing machine and dishwasher, lower energy consumption, and more effective action of laundry and cleaning agents. Soft water also has a positive effect on bathing comfort, the condition of skin and hair, and the appearance of fabrics.

Free in the set: 2-stage pre-filter

The set includes a 2-stage pre-filter with a reusable mesh cartridge and an antibacterial cartridge. The set is installed before the softener to improve the quality of the incoming water and at the same time better protect the media inside the device.

3-piece housing

The housing has a 3-piece construction. This practical solution makes cartridge replacement easier, because to unscrew the housing it is enough to unscrew only the ring. There is no need to rotate the entire sump, as is the case with 2-piece versions.

Stage I filtration: Aquafilter FCPNN50M

The reusable mesh cartridge is used to remove mechanical impurities such as sand, rust, and suspended solids. Its advantage over many other solutions is the possibility of cleaning it and reusing it for water filtration.

Stage II filtration: Aquafilter FCPS20-AB

This is a 10-inch cartridge made of polypropylene foam by AQUAFILTER, manufactured using Melt-blown technology. It retains mechanical impurities such as sand, rust, and silt with an accuracy of 20 microns. The BACinix™ nanosilver technology used consists in incorporating nanosilver particles into the cartridge structure, creating an environment that destroys microorganisms and prevents their growth in a bacteriostatic way, which additionally extends cartridge life.

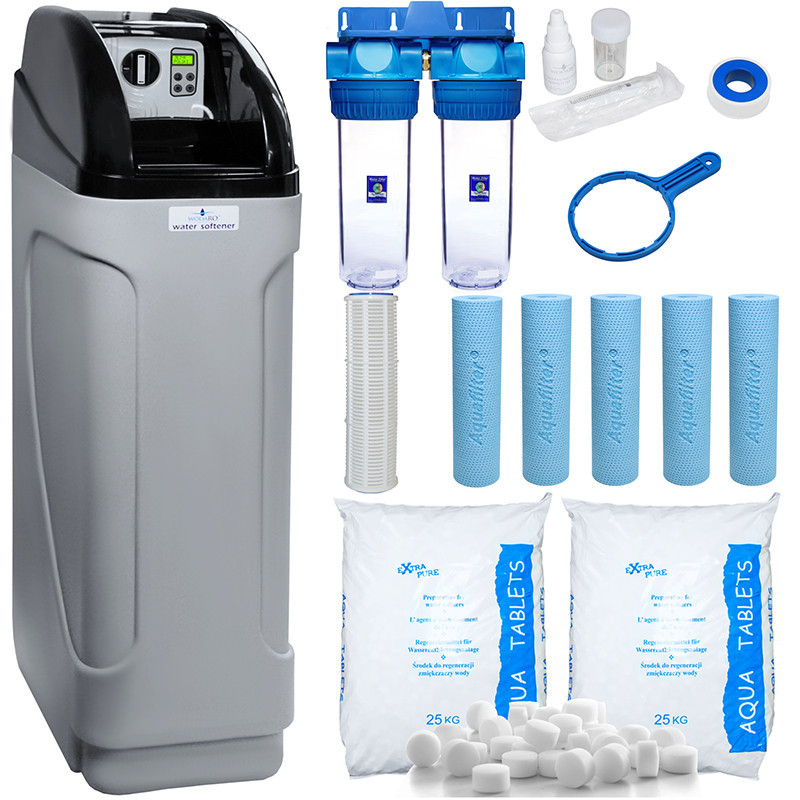

Set contents

• WodaRO ECO DUO 32 water softener.
• BNT7650 control valve with Polish menu.
• PUROLITE C100-E softening media – 25 liters.
• Coconut shell carbon media – 7 liters.
• BY-PASS valve.
• MIXING valve for setting the final water hardness.
• 2-stage pre-filter free of charge.
• Aquafilter FCPNN50M reusable mesh cartridge.
• Aquafilter FCPS20-AB antibacterial cartridge.
• Installation manual in Polish.
