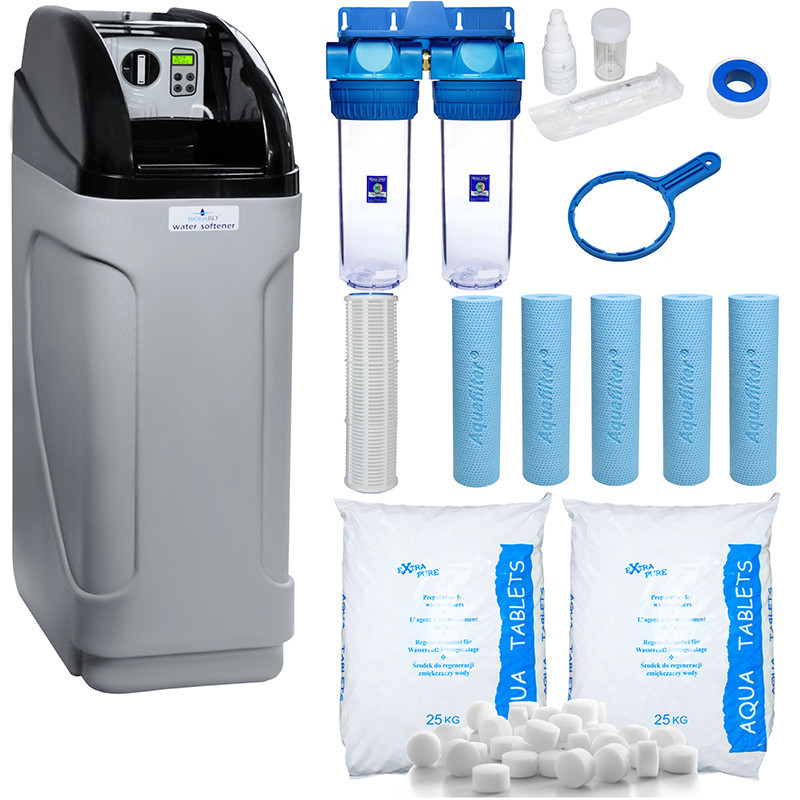

WodaRO ECO 25 BNT MIDI water softener

Compact softener for effective home protection against hard water

WodaRO ECO 25 BNT MIDI is distinguished by very good build quality and reliable operation. Inside the compact MIDI-type cabinet, 25 liters of high-quality softening media have been installed, allowing the unit to combine performance with a convenient installation format. The height of 101 cm makes it easier to fit the softener into many boiler rooms, utility rooms, and installation areas.

This model is designed for everyday, automatic, and maintenance-free operation. Thanks to the MIXING valve, the final water hardness can be set according to installation requirements and user preferences, while the BY-PASS valve makes servicing and operation easier.

Key advantages of the device

• High-quality compact cabinet.
• Attractive design.
• High quality of the components used.
• The set includes a BY-PASS valve and a MIXING valve for setting the final water hardness.
• Automatic and maintenance-free operation.
• High-quality ion exchange resin.
• One of the best and most reliable BNT7650 controller models available on the market.
• Brine float valve providing overflow protection.
• Excellent access to the salt filling opening.
• Detailed installation instructions in English.
• Effective protection of heating boilers and central heating systems against limescale buildup.
• Extended service life of household appliances such as washing machines and dishwashers, and lower energy consumption.
• Increased detergent efficiency by up to 40%.
• Energy savings of up to 30%.
• Soft, clean, and safe water throughout the home.
• More durable, soft-to-the-touch fabrics with vivid colors.
• Healthy, smooth skin, shiny hair, and no toxic chlorine fumes during bathing.

Soft water means more than just less scale on fittings and heating equipment. It also means greater comfort in everyday activities, easier cleaning of the bathroom and kitchen, and more effective performance of detergents and cleaning agents.

Design and components of the device

1. BNT 7650 control head with an English menu and a residual hardness valve (mixing).
2. Unique by-pass valve, mounted at the rear of the device.
3. High-quality, durable compact softener cabinet.
4. Multi-layer, fiberglass-reinforced resin tank, corrosion-resistant.
5. Ion exchange media providing ideal water softening.
6. Tablet salt.
7. Self-cleaning distributor baskets, lower and upper.
8. Brine valve controlling water flow to and from the brine tank, equipped with overflow protection.
9. Brine tank made of high-density polyethylene, impact-resistant and deformation-resistant.

This configuration has been designed for many years of operation in a domestic installation. The compact form makes installation easier, while properly selected components support stable and predictable operation.

Free gift: 2-stage pre-filter for resin bed protection

The set includes a 2-stage pre-filter with a reusable mesh cartridge and an antibacterial cartridge. The set is installed before the softener to improve water quality and protect the resin bed inside the unit. It is a practical addition to the installation that helps limit the inflow of mechanical impurities into the treatment system.

Filter housing design

The housing has a 3-piece design. This solution makes cartridge replacement easier, because to unscrew the housing it is enough to loosen only the ring. There is no need to rotate the entire sump, as in 2-piece versions.

Complete filtration stages included in the pre-filter set

• Stage I filtration: Aquafilter FCPNN50M – a reusable mesh cartridge designed to remove mechanical impurities such as sand, rust, and suspended solids. Its advantage over many other solutions is the possibility of cleaning and reusing it for water filtration.
• Stage II filtration: Aquafilter FCPS20-AB – a 10-inch cartridge made of AQUAFILTER polypropylene foam using Melt-blown technology, retaining mechanical impurities such as sand, rust, and silt with 20-micron precision. BACinix™ nanosilver technology involves the use of nanosilver particles in the cartridge structure, creating an environment that destroys microorganisms and prevents their growth, providing a bacteriostatic effect and extending cartridge life.

The pre-filter plays an important role in the entire water preparation system. It can work with other installation solutions, such as an additional filter cartridge in a point-of-use installation, reverse osmosis, or a reverse osmosis system used to obtain drinking water in the kitchen.

Additional important information

• Height: 101 cm
• Width: 32 cm
• Depth: 53 cm

Technical specifications
