3-STAGE UNDER-SINK WATER FILTER IRON REMOVER FCCFE 1/2"

3-STAGE PRE-FILTER UNDER SINK WITH CONNECTION KIT AND STARTER CARTRIDGE SET

CONNECTION: 1/2"

IN THE SET

• 3 ANTI-BACTERIAL CENTERING DISCS

• Key for unscrewing housings

• Teflon tape

• SPARE CARTRIDGE FCPS20 made of polypropylene nonwoven fabric with a precision of 20 microns.

THREE-STAGE PRE-FILTER UNDER SINK

Complete 3-stage pre-filter for installation under the sink

Excellent set guaranteeing:

• Filtration

• Iron removal from water

• Chlorine reduction

The 3-stage filtration is ensured by specialized cartridges from the renowned brand AQUAFILTER

First Stage - FCPS20 cartridge made of polypropylene nonwoven fabric with a precision of 20 microns.

Excellent cartridge for filtering water from mechanical (sedimentary) impurities.

Very high filtration accuracy indicates typical applications for this product - removing small fractions of solid impurities (silt, sludge, etc.) larger than 20 microns, which are present in water from private wells and in tap water, where they often enter during transmission.

Original Aquafilter product, typically used among others in under-sink and inline filters, typically serves as protection for expensive carbon, softening, iron removal cartridges, as well as the water installation and expensive fittings, etc.

The cartridge is made of high-quality polypropylene foam (nonwoven fabric), shaped to ensure filtration through the entire structure of the cartridge.

Cartridge lifespan: 3-6 months depending on water quality.

Second Stage - FCCFE cartridge with active media for iron removal from water. Effectively captures dissolved iron compounds in water. Used to protect household appliances (washing machines, dishwashers) and heating devices.

The iron removal cartridge contains a special fine-grained granulate with a high capacity for capturing iron ions. The cartridge is designed to effectively improve the taste and smell of water by removing its specific metallic aftertaste. The cartridge has its own end filter, preventing granulate particles from escaping outside the filter.

The composition of the media inside the cartridge housing adjusts the water pH to enhance the iron removal process.

The cartridge fits standard 10-inch housings and can be used in inline, under-sink, and standing filters. The water flow is suitable for a single point of extraction (e.g., before the kitchen faucet).

Advantages of the cartridge:

• characterized by exceptional ability to capture iron ions

• contains technologically treated ion-exchange granulate with grain sizes from 0.2 to 0.7 mm used for cold and hot domestic water

• prevents yellow stains on clothing and brown, rusty streaks on sink and bathtub walls

• the cartridge has PZH hygiene approvals

• made from materials certified by NSF and FDA

• water flowing through the cartridge penetrates the entire ion-exchange granulate ensuring its maximum effectiveness

• the cartridge excellently eliminates metallic taste and smell from water

• also has a polypropylene filter insert with a filtration accuracy of 10 microns additionally protecting the cartridge

Cartridge lifespan: 1-3 months depending on water quality.

Third Stage - FCCBL-S granulated carbon cartridge with coconut shell carbon.

Granulated carbon cartridges remove chlorine and its derivatives from water, additionally improving its taste and smell.

Granulated cartridges do not cause pressure drops in the system, making them ideal for installation at the water entry point to the house.

Advantages of the cartridge:

• Remove up to 99% of free chlorine from water and chlorinated substances

• Remove organic impurities

• Remove phenol and benzene from water

• Contain carbon from coconut shells

• Remove heavy metals (Pb, Cu, Hg, Sr, Cs)

• Soften water

• Help reduce scale formation

• Ensure excellent filtration even with pressure drops

• Remove up to 85% of chlorinated pesticides

• Remove mechanical impurities down to 5 microns

• Improve the taste and smell of water

• Longest lifespan of carbon cartridges available on the market.

Cartridge lifespan: 3-6 months depending on water quality.

3-PIECE HOUSING

Aquafilter brand inline housing for quick installation and protection of the water system.

Innovative 3-piece housing design facilitates cartridge replacement as it only requires unscrewing the ring to remove the housing. There is no need to turn the entire cover, as is the case with the 2-piece version.

The housing features a transparent 10" cover allowing for optical assessment of the contamination level of the cartridge inside. The 3-piece housing ensures maximum tightness of the housing and guarantees ease of cartridge replacement. The head has a brass thread.

Product made from the highest quality materials, produced and assembled in the European Union.

THE 3-PIECE AQUAFILTER HOUSING CONSISTS OF:

- head with brass thread (1)

- ring (2)

- transparent cover (3)

2 PRESSURE GAUGES INCLUDED

The manometers (pressure gauges) included in the set allow for reading pressure values (a useful feature that facilitates determining the moment when it is necessary to replace the cartridges).

3 ANTIBACTERIAL CENTERING DISCS

The disc is made using BACInix™ antibacterial technology that utilizes nanosilver, which is a bacteriostatic agent preventing the growth of microorganisms inside the filtration system, allowing for extended storage time and protecting against further microbiological contamination.

Centering disc:

• facilitates the correct installation of the cartridge

• prevents the development of bacterial flora

• reduces the risk of pathogenic microorganisms development

• made from the highest quality materials in the European Union

• compatible with most cartridges available on the market

• ensures proper positioning of the cartridge during the assembly of components

• reduces the likelihood of damaging the cartridge during installation

• BACinix technology based on nanosilver provides antimicrobial protection

FILTER DIMENSIONS:

• 1. Depth: 16.50 cm

• 2. Width: 43.50 cm

• 3. Height: 39.00 cm

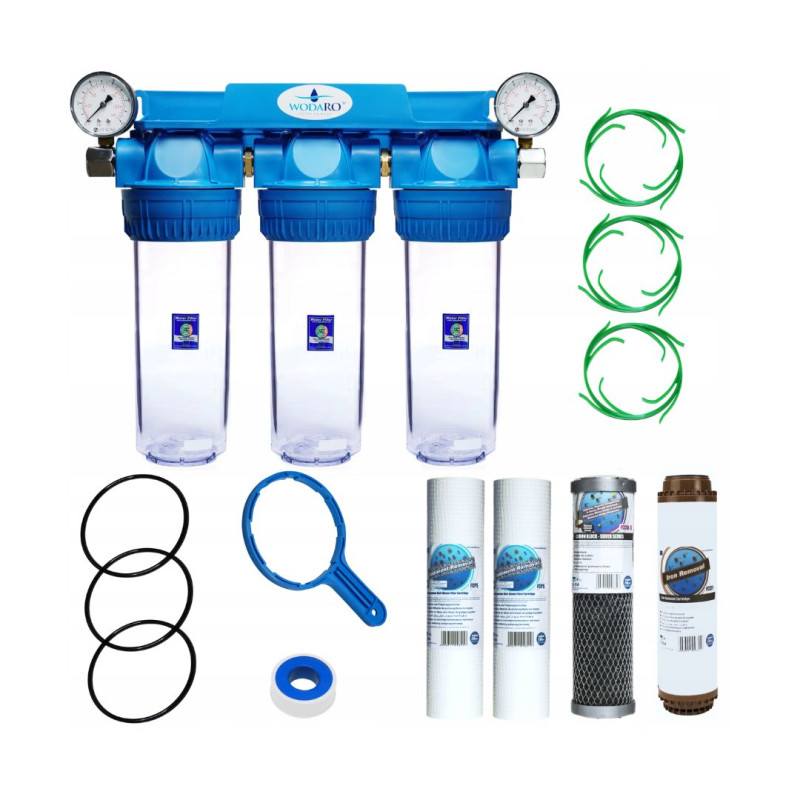

The set includes:

• 3 three-part housings on a plate (frame) (easy to disassemble, resistant to pressure spikes)

• 2 1/2 connections for connecting the installation

• 3 o-rings located inside the head.

• 3 centering discs

• 2 pressure gauges

• 2 x FCPS20 cartridge

• FCCFE cartridge

• FCCBL-S cartridge

• Key for unscrewing the housings

• Teflon tape
