3/4" Aquafilter tubular body string cartridges

Three-piece housing for effective water system protection

The Aquafilter 10" model with a 3/4" connection was designed for quick installation and convenient use. It is a solution that helps reduce the passage of mechanical contaminants into the household plumbing system and protects sensitive fittings and equipment components.

The transparent sump allows visual assessment of the cartridge contamination level without the need to disassemble the housing. This makes it easier to plan replacement and maintain high filtration efficiency.

Key advantages of the Aquafilter 3/4" housing

• three-piece design ensuring high tightness and easy cartridge replacement,
• transparent sump for quick cartridge condition inspection,
• head with brass thread for increased connection durability,
• pressure relief valve making it easier to start the filter after cartridge replacement,
• made of high-quality plastic resistant to liquids,
• possibility to build a single filtration setup or connect housings in series,
• compatible with a wide range of 10" cartridges.

Housing design

The three-piece housing consists of:

• a head with brass thread,
• a ring,
• a transparent sump.

This design combines everyday convenience with simple servicing. Cartridge removal and replacement are easier, while the tight construction supports the safe operation of the entire system.

Use at home and for appliance protection

The inline housing is one of the basic components needed to independently create a functional filtration system. It can operate with both municipal water and water from a private intake.

It is most often installed on the pipe supplying cold water to the home, especially where there is moderate water demand. The housing can also be mounted before household appliances such as a washing machine or dishwasher, helping protect them from the buildup of mechanical contaminants.

This solution also complements a larger water filtration system, and in more advanced installations it can work with additional purification stages such as a carbon filter, specialist media, and even a reverse osmosis filter, osmosis filter, or a home reverse osmosis system as a further stage of water treatment for selected points of use.

Compatibility with 10" cartridges

The housing works with a wide range of 10" cartridges available on the market. It can be used with:

• mechanical cartridges,
• specialist cartridges,
• carbon cartridges,
• softening cartridges,
• iron removal cartridges,
• antibacterial cartridges.

Thanks to this, the housing can serve as a universal base for expanding an installation tailored to water quality and user needs.

5 PP 20-micron string cartridges included

The set includes 5x wodaRO PP20 string cartridge. These are universal sediment cartridges made of polypropylene string, designed to remove mechanical contaminants from water.

The cartridges trap all kinds of mechanical contaminants, such as:

• sand,
• silt,
• rust.

PP20 polypropylene string cartridges are made of pure polypropylene fiber wound around a filter core. This design increases the filter density toward its core, improving filtration efficiency and supporting longer cartridge life.

The cartridges are intended for pre-filtration of suspended solids and mechanical sediments that may cause damage to heating devices and household appliances.

Properties of string cartridges

• used for cold and hot utility water,
• the cartridges are made of braided polypropylene string,
• the density gradient of the cartridge allows larger contaminant particles to be retained in the outer filter layer and smaller ones inside, which extends cartridge life,
• minimal pressure drop at high flow rates,
• the cartridge has PZH hygienic approvals,
• made of materials certified by NSF and FDA,
• operating temperature from 1°C to 52°C,
• high rigidity and durability of the cartridges,
• service life up to 6 months,
• the cartridges retain all kinds of mechanical contaminants: sand, rust, silt,
• the cartridge core is made of high-quality polypropylene.

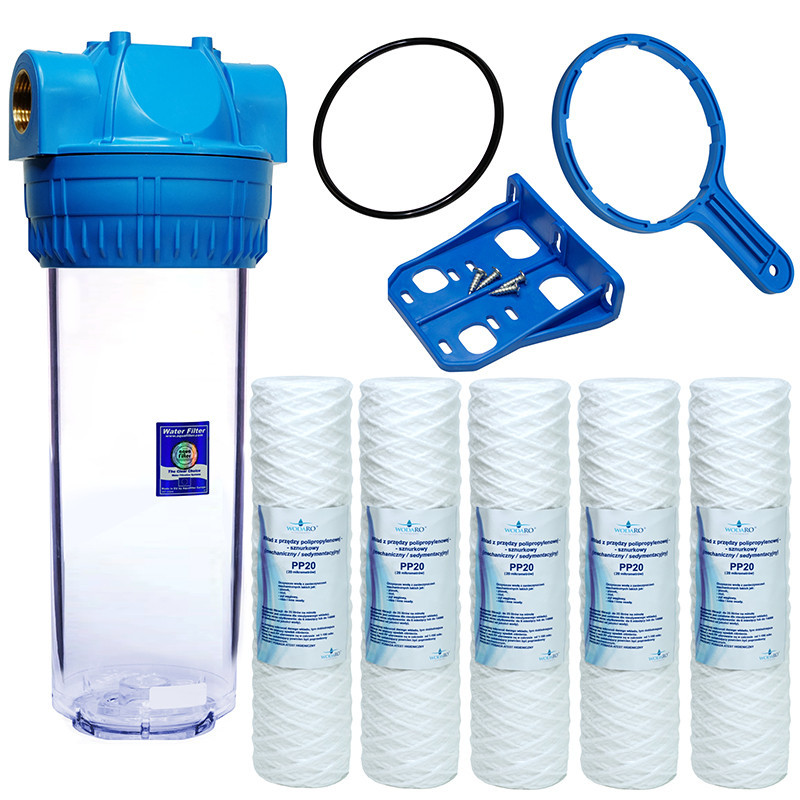

Set contents

• 3-piece Aquafilter housing,
• plate + screws,
• wrench,
• o-ring,
• 5x 20-micron string cartridge.

Additional important information

• number of O-rings under the head: 1
