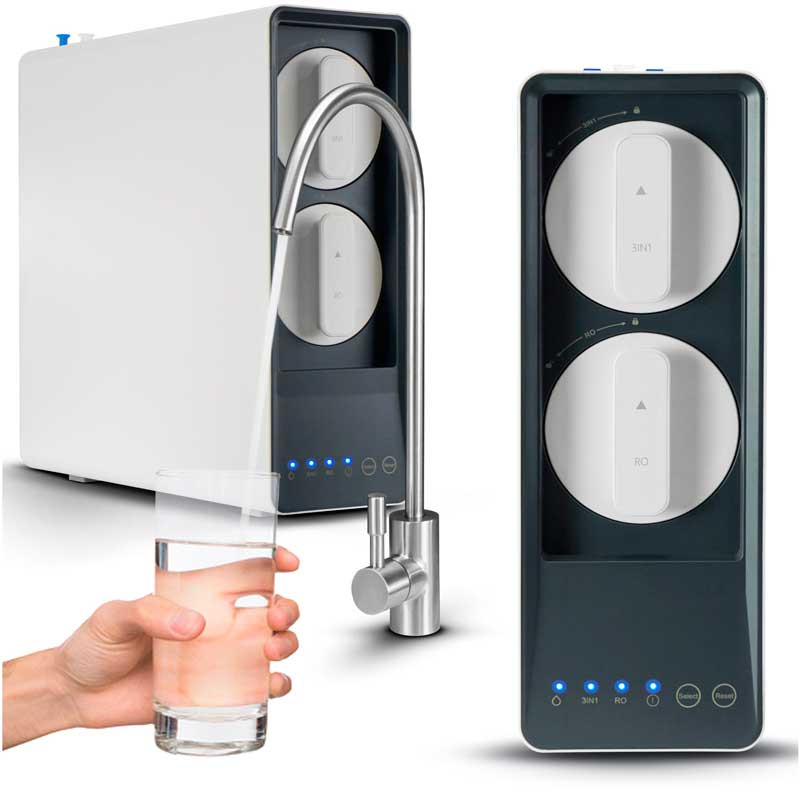

WodaRO RO800 MINI is a modern, compact water filtration system that provides crystal clear water without the need to store it in a tank.
RO800 Modern Reverse Osmosis Drinking Water Filter is a compact reverse osmosis system for the kitchen that provides clean water without a tank, without waiting, and without complicated operation. This modern water filter and osmosis filter works in flow-through mode, uses an 800 GPD membrane, and effectively removes 99.99% of contaminants. It is a practical solution for people who value convenience, space-saving design, and effective water treatment for drinking and cooking.

WodaRO RO800 MINI was designed as a modern, compact water filtration system for the home. The device delivers crystal-clear water without the need to store it in a tank, making it ideal wherever convenience, hygiene, and space-saving under-sink installation matter.
Thanks to advanced reverse osmosis technology and an 800 GPD membrane, the system effectively removes 99.99% of contaminants, ensuring safe and healthy water whenever you need it.
The RO800 MINI system was created with space-saving in mind. Its small housing means the unit fits well even in smaller kitchen cabinets and does not take up valuable countertop space. It is an excellent choice for modern kitchens where functionality and order matter.
The device uses an 800 GPD osmosis membrane and filters water continuously. This design eliminates the need for a separate tank, and clean water is available instantly at any time. For the user, this means greater convenience, faster access to water, and a modern way the entire water filtration system operates.
RO800 MINI was designed so that everyday use is simple even for people who have not used similar devices before. Replacing the filter cartridges takes about a minute and does not require tools. Installation and basic servicing can be done independently, without complicated steps.
The system operates within a specified water pressure and temperature range. For proper and stable operation, the device should be used in accordance with the technical parameters and the intended purpose of the set.

The 3-in-1 filter cartridge integrates three filtration stages, making the entire pre-filtration process organized and convenient to use. The applied stages include:
This design ensures comprehensive water purification before the further filtration process. An additional dust cover protects the cartridge from external contaminants, supporting the cleanliness and safety of the entire device.
The system is equipped with intelligent software that optimizes water consumption. In addition, an automatic solenoid valve and an electric booster pump increase the membrane's performance, helping maintain stable and efficient device operation in everyday use.

WodaRO RO800 MINI is a solution for people who expect high water quality, modern design, and convenient operation. The system combines effective filtration with a compact structure, making it a practical part of a modern kitchen.
The lack of a tank, immediate water availability, an efficient membrane, and straightforward operation make this reverse osmosis filter well suited to everyday home use.

| Dimensions (W x D x H) | 130 mm x 397 mm x 376 mm |
|---|---|
| Package dimensions | 358 mm x 476 mm x 440 mm |
| Permissible pressure | 1 - 4 Bar |
| Temperature range | 1 - 30°C |
| Capacity | up to 120 l/h |
| Membrane | 800 GPD |
| Quick connector diameter | inlet 3/8” / outlet ¼” / drain ¼” |
| Power supply | 230V AC 50 Hz / DC 24V 4A |
| Noise level | ≤ 55 dB |
| Filter cartridge | 3-in-1: polypropylene, carbon, and final carbon; with dust cover |
| 3-in-1 | polypropylene, carbon, and final carbon; with dust cover |
For the 1/4″ purified-water line. The device inlet uses 3/8″ tubing.
For the 1/4″ purified-water line. The device inlet uses 3/8″ tubing.
For the 1/4″ purified-water line. The device inlet uses 3/8″ tubing.
For the 1/4″ purified-water line. The device inlet uses 3/8″ tubing.
For the 1/4″ purified-water line. The device inlet uses 3/8″ tubing.
For the 1/4″ purified-water line. The device inlet uses 3/8″ tubing.
For the 1/4″ purified-water line. The device inlet uses 3/8″ tubing.
For the 1/4″ purified-water line. The device inlet uses 3/8″ tubing.
For the 1/4″ purified-water line. The device inlet uses 3/8″ tubing.
For the 1/4″ purified-water line. The device inlet uses 3/8″ tubing.
For the 3/8″ inlet line.
For the 3/8″ inlet line.
No. The system works without the need to store water in a separate tank, and filtered water is available continuously.
RO800 MINI uses advanced reverse osmosis technology and removes 99.99% of contaminants, providing water suitable for drinking and cooking.
The device is equipped with an 800 GPD membrane, and the total system capacity is up to 120 l/h.
The device dimensions are 130 mm x 397 mm x 376 mm (W x D x H), so the system also works well in smaller kitchen cabinets.
No. Replacing the filter cartridges takes only about a minute and does not require tools, which greatly simplifies operation.
The 3-in-1 cartridge combines three filtration stages: polypropylene, carbon, and final carbon. It also has a dust cover that protects the cartridge from external contaminants.
The system noise level is ≤ 55 dB, which helps maintain comfortable everyday use in the kitchen.
The permissible operating pressure is 1 - 4 Bar, and the temperature range is 1 - 30°C. Observing these parameters helps maintain proper system operation.
The set includes the RO800 MINI filter with installed cartridges, a faucet for dispensing clean water, a three-way valve (1/2"), a QC connector for the faucet (1/4"), a drain clamp, a drain connector (1/4"), an instruction manual in Polish, and a warranty card.
WodaRO RO800 MINI is a modern, compact water filtration system that provides crystal clear water without the need to store it in a tank.
