FP3-K1 AQUAFILTER WATER FILTER UNDER SINK KDF

FP3-K1N

3-stage under-sink filtration system

The system includes the cartridge FCPS5, which removes mechanical impurities from water such as: sand, silt, suspended solids, no smaller than 5 µm, FCCST2 which reduces iron concentration and hardness of water, and the carbon cartridge FCCBKDF, which removes chlorine, pesticides, organic substances, reduces heavy metal concentration, improves taste and odor of water, and also exhibits bacteriostatic properties.

Water passing through this system undergoes 3 stages of filtration:

1. FCPS5

• Aquafilter FCPS5 is a sediment (mechanical) cartridge made of polypropylene non-woven fabric, shaped to ensure an increase in filter density towards the core.

• It retains all kinds of mechanical impurities such as sand, silt, rust, etc., with grain sizes up to 5 microns.

• Filtration with an accuracy of 5 microns is used in under-sink water filters.

• Polypropylene foam cartridges belong to the latest generation of filtration cartridges.

• The FCPS series cartridges effectively remove sand, silt, rust, and other sediments found in tap water. They can effectively protect home heating systems and household appliances.

• They feature a huge absorption capacity for impurities, as the non-woven fabric has a foam-like consistency containing open-cell micropockets, causing the contact surface of water with the filtering mass to be the size of a football field (for standard 10-inch cartridges).

2. FCCST2

• Specialized water treatment cartridge - softening and de-ironing.

• It is filled with a special fine-grained medium that can be used for treating drinking and utility water.

• As water flows through the active medium, there is a reduction in total hardness, iron, and hydrogen sulfide.

• Used for treating drinking water (product with PZH certification).

• Water softening with a cartridge containing ion-exchange granules is the cheapest and simplest solution to protect kettles, coffee machines, etc., from the buildup of white deposits.

3. FCCBKDF

• Carbon cartridge, filled with activated carbon from coconut shells and KDF medium.

• Activated carbon from coconut shells removes chlorine, chlorinated solvents from water.

• Removes organic impurities and some pesticides.

• Removes aromatic hydrocarbons and polycyclic aromatic compounds, thus improving the taste and odor of water.

• Removes phenol and benzene.

• Removes iron compounds and hydrogen sulfide.

• Removes heavy metals (arsenic, cadmium, lead, mercury).

• KDF medium prevents the growth of bacterial flora on the filtering medium, reduces the concentration of heavy metals contained in water (arsenic, cadmium, lead, mercury) and iron, removes hydrogen sulfide and pesticides.

• It has a final filter that prevents the medium from escaping outside the cartridge.

FAUCET WITH CERAMIC HEAD

• Brass faucet, spout, chrome-plated with a ceramic valve. A solid faucet for water filters, offered with elements allowing it to be connected to a countertop or flat surface of the sink.

FP3-K1N is a high-quality device that has been legally tested, verified, and certified by the appropriate authorities and organizations to issue the relevant certifications.

Water Regulations Advisory Scheme (WRAS)

It is a compliance mark that proves that a given product meets the high standards set out in the Water Supply (Water Fittings) Regulations in England and Wales and equivalent water regulations in Scotland and Northern Ireland, which were enacted in 1999. These regulations specify the legal requirements for the design, installation, operation, and maintenance of water supply systems, water fittings, and water-using devices, thus playing a significant role in protecting public health, securing water supplies, and promoting efficient water use in consumer facilities throughout the UK.

NSF

NSF International is an American organization operating since 1944. It is an independent, non-profit testing and certification agency that sets standards for a wide range of household and industrial products, guaranteeing their highest quality. Products marked with the NSF mark undergo a very rigorous control procedure, which is additionally periodically repeated and confirmed.

Device manufactured in the European Union

Device dimensions:

1) 40 cm

2) 35 cm

3) 14 cm

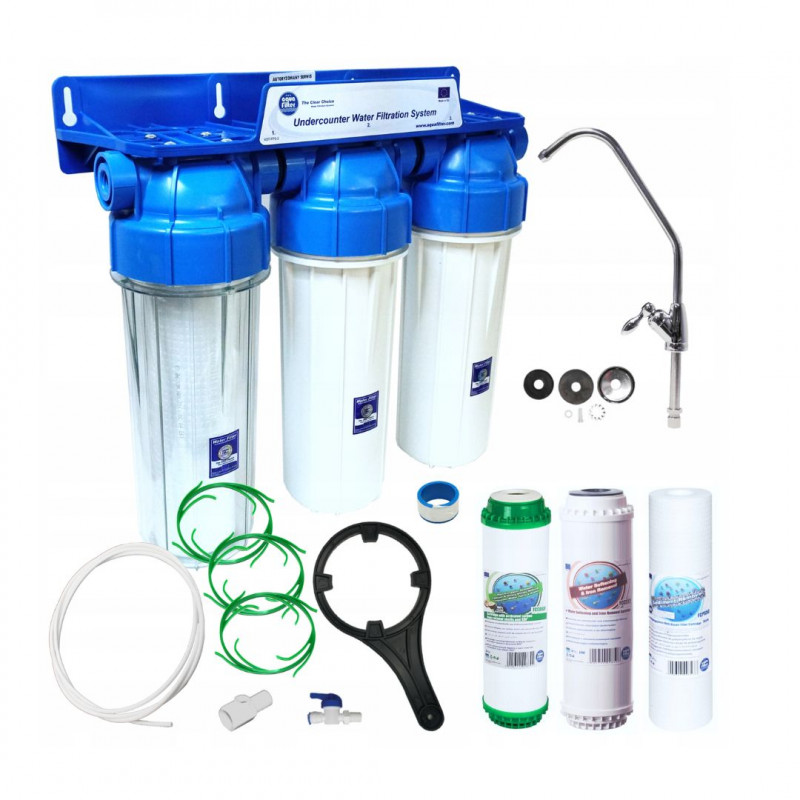

COMPONENTS OF THE SYSTEM:

• FP3-K1N filter set

• Set of cartridges (FCPS5, FCCST2, FCCBKDF)

• Single faucet

• Wrench for the covers

• Complete connection kit for connecting the filter

• 3 x centering disc

• Hose

• Teflon tape

• User manual
