FHPRCL34-B-TWIN Aquafilter double water filter 3/4"
4 people bought this
Aquafilter two-stage inline filter with two transparent 10" housings connected in series. The heads with a brass 3/4" thread and double Read moreShow less
Aquafilter two-stage inline filter with two transparent 10" housings connected in series. The heads with a brass 3/4" thread and double sealing on two O-rings ensure high tightness. The housings facilitate the monitoring of cartridge contamination, and the air vent valve helps after their replacement. For installation on the cold water supply and as protection for household appliances.
Benefits
- View the cartridge through the clear bowl
Specifications
- Temperatura pracy
- 2°C - 42°C
- Cartridge length
- 10″
- Connection size
- 3/4″
- Housing standard
- Slim 10″
- Maximum working pressure
- 6 bar
- Product type
- Pre-filtration system
View full specifications
- Technology
- Mechanical filtration
Description
FHPRCL34-B-TWIN Aquafilter is a 3/4" two-stage water filter designed for installation on the cold water supply line and for protecting household appliances. This practical water filtration system uses two transparent 10" housings connected in series, making it easy to monitor cartridge contamination and allowing flexible selection of the right filter cartridge for the installation's needs. It is an effective solution for preliminary water treatment at home, as well as a component for preparing water before more advanced systems such as a reverse osmosis filter, osmotic filter, or reverse osmosis system.
Two-stage inline filter for protecting installations and appliances
The Aquafilter FHPRCL34-B-TWIN model is built from two transparent 10" inline housings connected in series. This design makes it possible to create a two-stage filtration system that can operate as effective protection for a domestic water installation, fittings, and appliances connected to cold water.
The filter is especially suitable wherever it is important to limit contaminants from reaching further parts of the installation. It can be installed on the cold water supply pipe to an apartment with moderate water demand, as well as before household appliances such as a washing machine or dishwasher.
Design created for tight sealing and convenient operation
Each housing consists of two parts: a transparent sump and a head with a 3/4" brass thread. This design combines connection durability with ease of use and broad compatibility with domestic installations.
A major advantage of this solution is the double sealing. The housings are equipped with two sealing O-rings: a face seal and one under the head. This design helps ensure maximum product tightness during everyday operation.
The transparent sumps allow quick assessment of cartridge contamination without the need to dismantle the entire system. This is a practical convenience during operational inspections and when planning filter cartridge replacement.
Additionally, the housings are equipped with an air release valve, which allows air accumulated in the filter to be released after cartridge replacement. This makes it easier to restart the system after servicing and supports proper system operation.
Application and compatibility with 10" cartridges
FHPRCL34-B-TWIN works with a wide range of 10" cartridges available on the market. This makes it possible to tailor the filtration configuration to the type of water and the expected performance result.
The filter is compatible with:
- mechanical cartridges,
- specialist cartridges,
- carbon cartridges,
- softening cartridges,
- iron removal cartridges,
- antibacterial cartridges.
This versatility means the system can serve as a standalone solution for preliminary water treatment or act as a protective stage for more advanced installations, including sets such as reverse osmosis or a reverse osmosis system, where pre-filtration helps protect the downstream components of the system.
Installation and operation
The filter is intended for installation on the cold water supply line. In domestic conditions, it can operate as a central point of preliminary filtration for an apartment with moderate water demand or as protection for a specific appliance.
For proper installation, the filter should be suspended on a mounting plate. After replacing the cartridges, it is advisable to use the air release valve to remove air accumulated inside the housings.
The transparent sumps make it easier to continuously monitor cartridge condition, which improves operation and allows you to notice more quickly when a filter cartridge needs replacement.

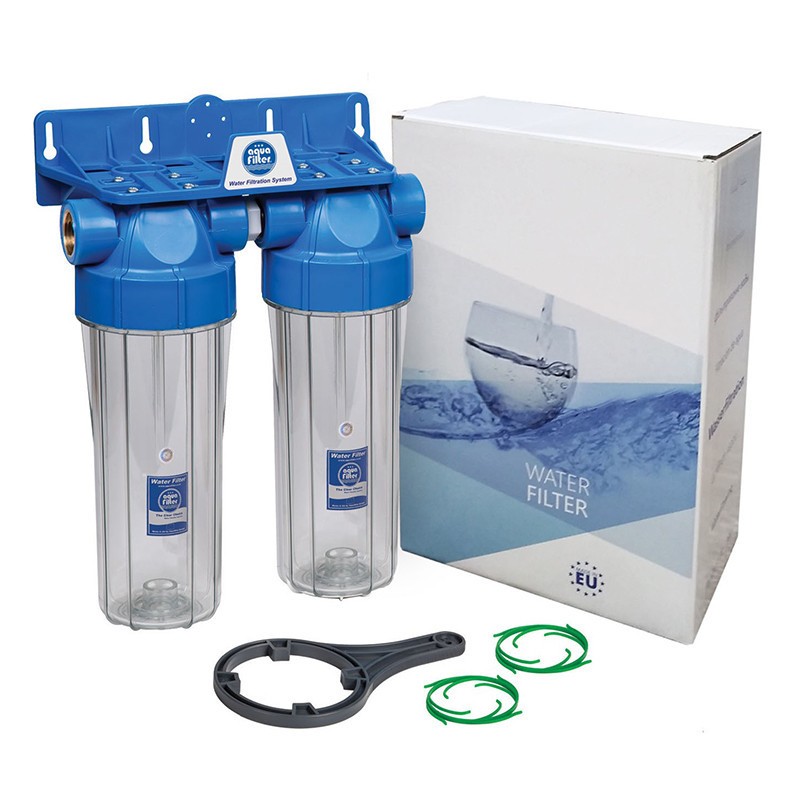

Package contents
The set includes all the basic components needed for installation and operation:
- a two-stage filter consisting of two transparent 10-inch inline housings arranged in series,
- a double mounting plate used to fasten the system to a vertical surface, e.g. a wall,
- a wrench for unscrewing the housings,
- two bacteriostatic centering discs.
Why choose this model
- two-stage filtration in a compact form,
- transparent sumps for quick monitoring of cartridge contamination,
- 3/4" brass connection for increased connection durability,
- double sealing for improved system tightness,
- air release valve for easier handling after cartridge replacement,
- broad compatibility with popular 10" cartridges,
- possibility of protecting a washing machine, dishwasher, and domestic water installation.
Additional important information
- 360mm x 140mm x 250mm
Technical specifications
| Product type | two-stage inline filter |
|---|---|
| Housing type | transparent 10" housings connected in series |
| Housing design | transparent sump and head |
| Thread | 3/4" brass |
| Sealing | two sealing O-rings: face seal and under the head |
| Maximum operating pressure | 6 bar |
| Air release valve | yes |
| Cartridge compatibility | 10" cartridges: mechanical, specialist, carbon, softening, iron removal, antibacterial |
| Application | installation on the cold water supply line, protection of installations and household appliances |
| Dimensions | 360 mm x 140 mm x 250 mm |
| two sealing O-rings | face seal and under the head |
| 10" cartridges | mechanical, specialist, carbon, softening, iron removal, antibacterial |
Choose a set or individual cartridges. Replacement intervals depend on the cartridge and operating conditions.
Individual cartridges 17
More products (11)
Questions
What is the FHPRCL34-B-TWIN filter used for?
It is a two-stage inline filter for installation on cold water. It is used for preliminary water filtration, protection of the domestic installation, and protection of household appliances such as a washing machine and dishwasher against contaminants present in the water.
Can the FHPRCL34-B-TWIN Aquafilter double water filter 3/4" be installed on the cold water inlet to an apartment?
Yes, this model is designed for installation on the cold water supply pipe to an apartment, especially where water demand is moderate.
Which cartridges fit this filter?
The unit works with 10" cartridges available on the market, including mechanical, specialist, and carbon cartridges, as well as softening, iron removal, and antibacterial versions.
Why are transparent housings practical?
The transparent sumps allow you to assess the degree of cartridge contamination without taking the system apart. This makes it easier to plan replacement and monitor filter operation.
What is the air release valve used for?
The air release valve allows the removal of air accumulated inside the filter after cartridge replacement. This makes it easier to start the system after servicing and improves ease of use.
Does the filter require installation on a mounting plate?
Yes, for proper installation the filter should be suspended on a mounting plate. The set includes a double mounting plate for fastening the system to a vertical surface, e.g. a wall.
What is the maximum operating pressure of the FHPRCL34-B-TWIN Aquafilter double water filter 3/4"?
The maximum operating pressure is 6 bar.
Is this filter suitable as a pre-stage for a reverse osmosis system?
Yes, it can work as a preliminary water treatment and installation protection component before more advanced solutions such as a reverse osmosis filter, osmotic filter, or reverse osmosis system, if the configuration of the entire setup requires it.
What is included in the set?
The set includes two transparent 10" housings connected in series, a double mounting plate, a wrench for unscrewing the housings, and two bacteriostatic centering discs.
What are the dimensions of the filter?
The set dimensions are 360 mm x 140 mm x 250 mm.
