FHPRCL12-B-TWIN Aquafilter double water filter 1/2"

Two-stage inline filter for protecting installations and appliances

Aquafilter FHPRCL12-B-TWIN is built from two transparent 10" inline housings arranged in series. This design makes it possible to create an effective, flexible filtration setup that can be matched to the type of contaminants present in the water and the requirements of the home installation.

The filter works well on the cold water supply pipe to an apartment, especially where water demand is moderate. It can also be installed before household appliances such as a washing machine or dishwasher, where it helps limit the buildup of various contaminants and supports the protection of components that come into contact with water.

Design that makes everyday use easier

Each housing consists of two parts: a transparent sump and a head with a 1/2" brass thread. This solution combines the convenience of visual inspection with durable connections in the installation.

The transparent sumps allow for a quick assessment of the cartridge contamination level, without guessing when replacement time is approaching. This is important both in everyday use and when planning maintenance for the entire system.

The housings are also equipped with an air release valve, which allows the air collected in the filter to be released after cartridge replacement. This makes it easier to restart the system after maintenance work.

Tightness and solid construction

The filter uses two sealing O-rings in each housing: a face seal and one under the head. The double sealing helps maintain high product tightness during operation.

The heads with a 1/2" brass thread increase connection durability and allow installation in typical domestic systems. The maximum operating pressure is 6 bar.

Wide compatibility with 10" cartridges

The FHPRCL12-B-TWIN model is compatible with a wide range of 10" cartridges available on the market. This allows the set to be configured for the user's specific needs and water type.

• sediment cartridges,
• specialist cartridges,
• carbon cartridges,
• softening cartridges,
• iron removal cartridges,
• antibacterial cartridges.

This solution can serve as a standalone stage for installation protection or as part of a larger treatment system. In practice, such a filter is also used as a pre-filtration stage before more advanced systems, such as a reverse osmosis filter, osmotic filter, or reverse osmosis system, where a properly selected filter cartridge helps protect subsequent installation components.

Installation and operation

For proper installation, the filter should be suspended on a mounting plate. This type of fastening helps stabilize the entire setup and facilitates later maintenance service.

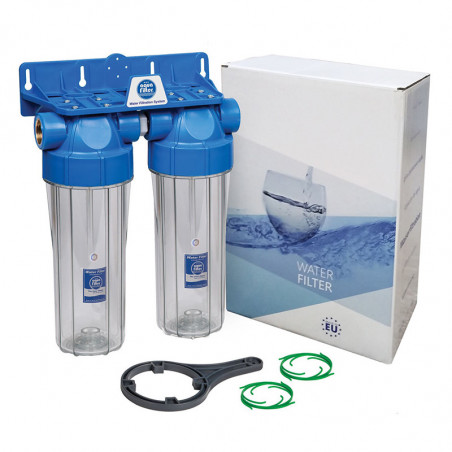

Set contents

• two-stage filter consisting of two transparent 10-inch inline housings arranged in series,
• double mounting plate used to screw the system to a vertical surface, e.g. a wall,
• wrench for unscrewing the housings,
• two bacteriostatic centering discs.

Why choose this model

• two filtration stages based on 10" housings connected in series,
• easy monitoring of cartridge dirt level thanks to the transparent sumps,
• solid heads with a 1/2" brass thread,
• double sealing for improved tightness,
• air release valve for easier startup after cartridge replacement,
• wide compatibility with popular 10" filter cartridges,
• can be used to protect domestic installations and household appliances.

Additional important information

• 360mm x 140mm x 250mm
