FHPRCL12-B-TRIPLE Aquafilter triple filter 1/2"
7 people bought this

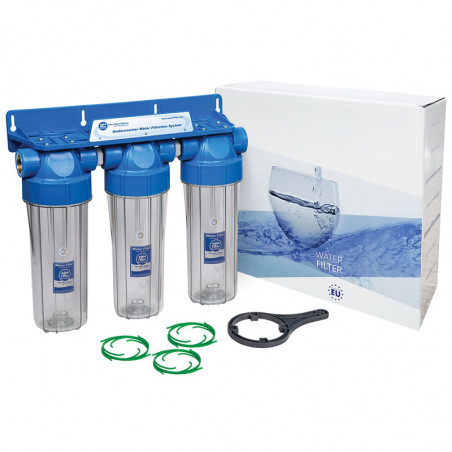

FHPRCL12-B-TRIPLE Aquafilter is a three-stage inline filter with three transparent 10" housings connected in series. The heads with 1/2 Read moreShow less
FHPRCL12-B-TRIPLE Aquafilter is a three-stage inline filter with three transparent 10" housings connected in series. The heads with 1/2" brass threads and double sealing (face o-ring and under the head) help maintain high tightness. The transparent housings facilitate cartridge inspection, and the air vent valve streamlines startup after replacement. Max. operating pressure: 6 bar.
Benefits
- View the cartridge through the clear bowl
Specifications
- Temperatura pracy
- 2°C - 42°C
- Cartridge length
- 10″
- Connection size
- 1/2″
- Housing standard
- Slim 10″
- Maximum working pressure
- 6 bar
- Model
- FHPRCL12-B-TRIPLE Aquafilter
View full specifications
- Product type
- Pre-filtration system
- Technology
- Mechanical filtration
Description
FHPRCL12-B-TRIPLE Aquafilter is a three-stage water filter in an inline housing system, designed for effective installation protection and flexible expansion of a domestic water filtration system. The set is based on three transparent 10" housings connected in series, allowing different types of cartridges to be combined and water treatment to be tailored to specific needs. This is a practical solution both as a standalone pre-filter and as part of an installation working with systems such as a reverse osmosis filter or reverse osmosis.

Three-stage filtration in a durable inline housing system
The FHPRCL12-B-TRIPLE Aquafilter model consists of three transparent 10-inch inline filter housings arranged in series. This design makes it possible to create a multi-stage filtration system that can be configured using various 10" cartridges available on the market.
Each housing is made of two parts: a transparent sump and a head with a 1/2" brass thread. This solution combines ease of use with connection durability and makes integration with the cold water supply installation easier.
Why are transparent housings so practical?
The transparent sumps allow quick inspection of the contamination level of the cartridges without the need to disassemble the entire set. This is an important advantage in everyday use, because the condition of the filter cartridge can be assessed visually and its replacement can be planned more easily.
The housings are also equipped with an air release valve, which allows the air accumulated inside the filter to be released after cartridge replacement. This makes restarting the system after service easier and increases operating convenience.
Tightness and safe system operation
Each housing has two sealing O-rings: a face O-ring and an O-ring under the head. The double sealing helps maintain high system tightness and supports stable operation of the entire set.
The maximum operating pressure is 6 bar, allowing the filter to operate in typical domestic applications related to preparing cold water for further use or as a pre-filtration stage for more advanced filtration systems.
Applications and configuration options
The filter is installed on the pipe supplying cold water to the apartment, especially where there is moderate water demand. Three filtration stages provide great freedom in selecting filter media and make it possible to build a system tailored to water quality and the expected result.
The model is compatible with a wide range of 10" cartridges, including:
- sediment cartridges,
- specialist cartridges,
- carbon cartridges,
- softening cartridges,
- iron removal cartridges,
- antibacterial cartridges.
Thanks to this, the set can serve as a universal filtration module in domestic installations and can also work with additional solutions such as a reverse osmosis system or an osmosis filter requiring effective pre-filtration.
For proper installation, the filter should be suspended on a mounting plate. The device is intended for installation on a cold water system.
Package contents
The set includes all the basic elements needed for installation and operation:
- a three-stage filter consisting of three transparent 10-inch inline filter housings arranged in series,
- a triple mounting plate for screwing the system to a vertical surface, e.g. a wall,
- a wrench for unscrewing the housings,
- three bacteriostatic centering discs.
Additional important information
- 360mm x 140mm x 385mm
Technical specifications
| Model | FHPRCL12-B-TRIPLE Aquafilter |
|---|---|
| Product type | Three-stage inline filter |
| Housing arrangement | Connected in series |
| Housing size | 10" |
| Lower part material | Transparent sump |
| Head | With 1/2" brass thread |
| Sealing | Two O-rings: face and under the head |
| Air release valve | Yes |
| Maximum operating pressure | 6 bar |
| Installation purpose | Pipe supplying cold water to the apartment |
| Cartridge compatibility | 10" cartridges: sediment, specialist, carbon, softening, iron removal, antibacterial |
| Dimensions | 360 mm x 140 mm x 385 mm |
| Two O-rings | face and under the head |
| 10" cartridges | sediment, specialist, carbon, softening, iron removal, antibacterial |
Choose a set or individual cartridges. Replacement intervals depend on the cartridge and operating conditions.
Individual cartridges 17
More products (11)
Questions
What is the FHPRCL12-B-TRIPLE Aquafilter used for?
It is a three-stage inline filter designed for filtering cold water supplied to the apartment. It can protect the installation, improve the operating conditions of devices, and serve as an advanced pre-treatment water system.
Which cartridges fit the FHPRCL12-B-TRIPLE Aquafilter triple filter 1/2"?
The filter is compatible with 10" cartridges available on the market. Sediment, specialist, carbon, as well as softening, iron removal, and antibacterial cartridges can be used.
Why are the housings transparent?
The transparent sumps make it possible to assess the contamination level of the filter cartridge without unscrewing the housings. This makes operation monitoring and cartridge replacement planning easier.
What is the maximum operating pressure of the filter?
The maximum operating pressure is 6 bar.
Where should the FHPRCL12-B-TRIPLE Aquafilter triple filter 1/2" be installed?
The filter is installed on the pipe supplying cold water to the apartment, especially where there is moderate water demand. For proper installation, it should be suspended on a mounting plate.
What are the benefits of double housing sealing?
Two sealing O-rings — a face O-ring and one under the head — help maintain high tightness of the entire set and support safe operation of the filtration system.
What is the air release valve for?
The air release valve allows the air accumulated in the filter to be removed after cartridge replacement. This makes restarting the system after service simpler and more convenient.
What is included in the set?
The set includes: a three-stage filter with three transparent 10" housings, a triple mounting plate for fixing to a vertical surface, a wrench for unscrewing the housings, and three bacteriostatic centering discs.
What are the dimensions of the set?
The filter dimensions are 360 mm x 140 mm x 385 mm.
