Big Blue 20-inch cartridges

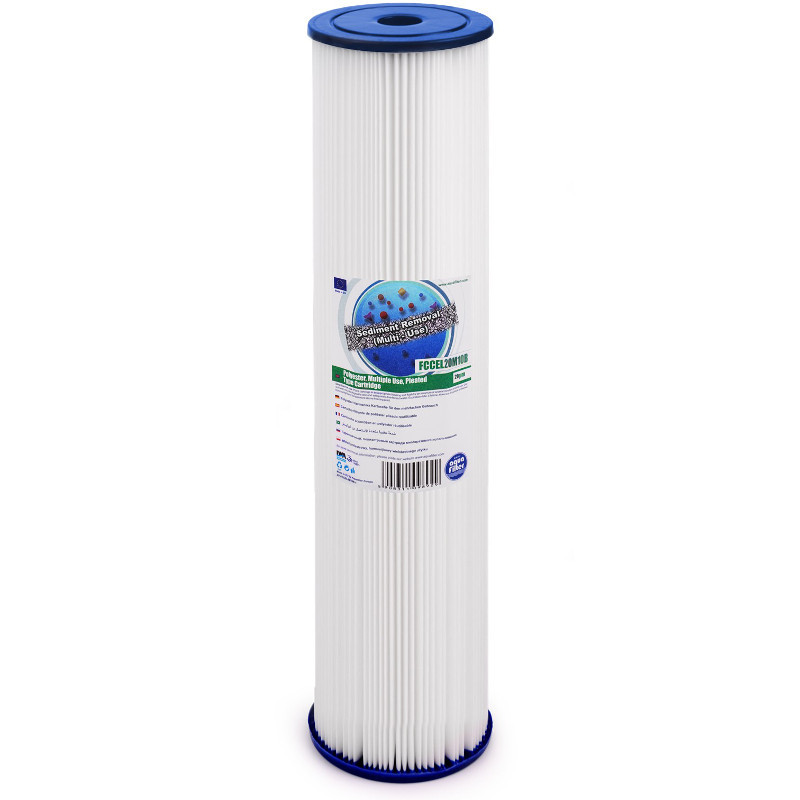

FCCEL20M20B Aquafilter BIG BLUE 20" pleated filter
Rating
Aquafilter FCCEL20M20B is a reusable 20" accordion filter cartridge for BIG BLUE 20" housings. It is used for cold water filtration and Read moreShow less
Aquafilter FCCEL20M20B is a reusable 20" accordion filter cartridge for BIG BLUE 20" housings. It is used for cold water filtration and captures mechanical impurities such as sand, rust, silt, and suspended solids. The accordion design increases the filtration surface area, ensuring good efficiency with low pressure drop. The cartridge can be used up to 3 times after rinsing with running water.
Specifications
FCCEL20M20B
- Cartridge diameter
- 4,5″
- Cartridge length
- 20″
- Cartridge type
- Reusable / pleated
- Compatibility
- Big Blue 20"
- Filtration rating
- 20 µm
- Housing standard
- Big Blue 20″
View full specifications
- Service life
- 6 months
- Maximum working temperature
- 45 °C
- Minimum working temperature
- 2 °C
- Product type
- Filter cartridge
- Reusable
- Yes
Description
FCCEL20M20B Aquafilter is a pleated BIG BLUE 20" filter cartridge designed for cold water filtration. It works well as a mechanical water filter in residential and commercial water filtration systems, where effective retention of sand, rust, silt, and other suspended solids is important while maintaining a low pressure drop. Thanks to its increased filtration surface area, the cartridge is well suited as the first stage of water treatment, including before more advanced solutions such as a reverse osmosis filter or a reverse osmosis system.
This model is reusable, intended for 20" BIG BLUE housings, and can be used up to 3 times after rinsing under running water.
BIG BLUE 20" pleated cartridge for effective mechanical filtration
Aquafilter FCCEL20M20B is a reusable 20" cartridge designed for water filtration in BIG BLUE type housings. Its purpose is to remove mechanical impurities that can reduce water quality, lower the comfort of using fixtures, and accelerate wear of subsequent installation components.
The pleated design increases the filtration surface area, which translates into higher operating efficiency and very good performance with low pressure drop. It is a practical solution wherever stable cold water filtration and easy operation are needed.
What contaminants does the Aquafilter FCCEL20M20B cartridge remove?
The mechanical pleated cartridge has been designed to retain typical solid contaminants present in cold water. It effectively captures:
- rust,
- sand,
- silt,
- suspended solids.
Thanks to its 20-micron filtration rating, the cartridge plays an important protective role in the installation, limiting the passage of larger particles to further stages of water treatment. For this reason, it is mainly used as the first stage of drinking water and general-purpose water filtration.
Key advantages
- Removes mechanical impurities: rust, sand, silt, and suspended solids.
- Mainly used as the first stage of drinking water and general-purpose water filtration.
- Reusable cartridge.
- The pleated design ensures higher filtration efficiency.
- Provides excellent filtration with low pressure drop.
- Fits 20'' BIG BLUE housings.
Operation and reuse
The cartridge belongs to the FCCEL series designed for cold water filtration. It can be used up to 3 times, provided it is first cleaned by rinsing under running water. This solution helps reduce replacement frequency and makes everyday use of the filtration system easier.
Important: the cartridge lifespan is 3-6 months until the first rinsing and depends on the quality of the incoming water. The greater the load of mechanical impurities, the shorter the actual operating time of the cartridge may be.
Application
The FCCEL20M20B model is used wherever preliminary mechanical filtration of cold water is needed. It can operate as a protective element for residential and commercial installations, as well as a stage preceding further filtration solutions, including more precise water treatment systems.
In practice, this means better protection for fixtures, filter housings, and further system components that are sensitive to mechanical deposits. This type of filter cartridge is particularly useful when the water contains visible suspended matter or when fine particles of sand and rust appear periodically.
Compatibility
The cartridge fits housings in the 20" BIG BLUE standard. Before purchase, it is worth making sure that the filter housing is compatible with this size, as proper fit has a direct impact on tightness and filtration effectiveness.
Technical specifications
| Parameter | Value |
|---|---|
| Catalog number | FCCEL20M20B |
| Cartridge size | 20"BB |
| Dimensions | 20 x 4 1/2 inches; 50.8 x 11.5 cm |
| Filtration rating | 20 microns |
| Operating temperature | 2-45 °C |
| Lifespan | 3-6 months (until first rinsing) |
| Filtration type | Mechanical filtration |
| Application range | Cold water |
| Reusability | Up to 3 times after rinsing under running water |
| Compatibility | BIG BLUE 20" housings |
| Removed contaminants | Sand, rust, silt, suspended solids |
Questions
What is the Aquafilter FCCEL20M20B cartridge used for?
It is a mechanical pleated cartridge for cold water filtration, designed to remove contaminants such as sand, rust, silt, and suspended solids. It most often works as the first stage of drinking water and general-purpose water filtration.
Which housings does this cartridge fit?
The FCCEL20M20B model fits BIG BLUE type housings in the 20" size.
What is the filtration rating of this cartridge?
The cartridge offers a filtration rating of 20 microns, allowing it to effectively retain typical mechanical contaminants present in water.
Can the cartridge be used more than once?
Yes. It is a reusable cartridge and can be used up to 3 times, as long as it is first cleaned by rinsing under running water.
How often should the cartridge be replaced or rinsed?
The cartridge lifespan is 3-6 months until the first rinsing. The actual service life depends on the quality of the incoming water and the amount of retained contaminants.
Is this cartridge suitable for hot water?
No. The FCCEL series is designed for cold water filtration. The operating temperature range is from 2 to 45 °C.
What are the benefits of the pleated cartridge design?
The pleated structure increases the filtration surface area, which improves the cartridge's operating efficiency and makes it possible to achieve good filtration with low pressure drop.
Will this cartridge work before a reverse osmosis system?
Yes, as a mechanical stage it can be used before more precise filtration solutions. It helps reduce the amount of solid contaminants reaching further system components, such as an osmotic filter or a reverse osmosis filter, provided they are compatible with the given installation.
Compatible with 5
Compatible devices and housings.
- Big Blue 20" Double O-ring Filter Housing
- FH20B1-B-WB Aquafilter big blue 20" filter housing Reference: FH20B1-B-WB
- HHBB20A Aquafilter double big blue 20" water filter Reference: HHBB20A
- HHBB20B Aquafilter triple big blue water filter 20" Reference: HHBB20B
- WODARO HBB20 BIG BLUE Water Filter Treatment Station Reference: HBB20
