F76S-11/2AA Honeywell filter with backwashing

Mechanical water filter with continuous filtration during cleaning

The Honeywell F76S-11/2AA model was designed as a fine mesh filter with a backwash function. Its key advantage is the ability to maintain a continuous flow of filtered water even during cleaning of the filter mesh. This solution is especially valued in installations where stable operation, effective protection of fittings, and convenient maintenance are essential.

The filter effectively retains foreign bodies present in water, such as rust particles, hemp fibers, or grains of sand. As a result, it helps reduce the risk of damage to end devices, fittings, valves, and other installation components. All device components meet the requirements of current DIN/DVGW standards, and the design complies with KTW recommendations for drinking water.

The connection diameter is 11/2", which makes this filter suitable wherever high performance and reliable operation are required in larger water installations.

Key features and benefits

• Filtered water is supplied even during backwashing.
• The patented backwash system is fast and allows the filter to be cleaned using a small amount of water.
• A special setting ring indicates when the next backwash should be carried out.
• The filter can work with an automatic backwash unit.
• A large filtration surface supports high operating efficiency.
• The transparent filter housing made of impact-resistant synthetic material makes it easy to monitor the contamination level of the cartridge.
• The replaceable filter insert and housing facilitate operation and servicing.
• Very simple operation supports convenient everyday use.
• Design compliant with KTW recommendations for drinking water.

Application

Honeywell F76S-11/2AA is used in both domestic and industrial installations. As a pre-filter, it helps protect the installation against mechanical impurities and is an important component of a water treatment system. It can operate as an independent water filter or as part of a larger water filtration system working together with additional treatment technologies.

In practice, such a mechanical filter is often installed before more advanced solutions, such as an osmotic filter, reverse osmosis filter, reverse osmosis system, or reverse osmosis unit, in order to limit the flow of solid particles to subsequent filtration stages and protect a more precise filter cartridge.

Operating principle

The filter operating design was developed to combine effective filtration with quick and efficient cleaning of the cartridge without the need to interrupt the supply of filtered water.

• The filter insert consists of an upper and lower section.
• In the “filtration” knob position, the upper filter insert is closed so that water passes only through the lower, main insert from the outside to the inside.
• After opening the ball valve to perform backwashing, the main filter insert is moved downward until the inflow of water from the outer side is stopped. At the same time, the water flow to the upper part of the filter is opened.
• The water used for cleaning passes through the screen, rotor, and main filter insert from the inside to the outside. This means that the insert is thoroughly cleaned over its entire surface at full inlet pressure.
• The filter automatically returns to the operating position after the ball valve is closed.
• The internal rotor flushes impurities adhering to the mesh through discharge openings.

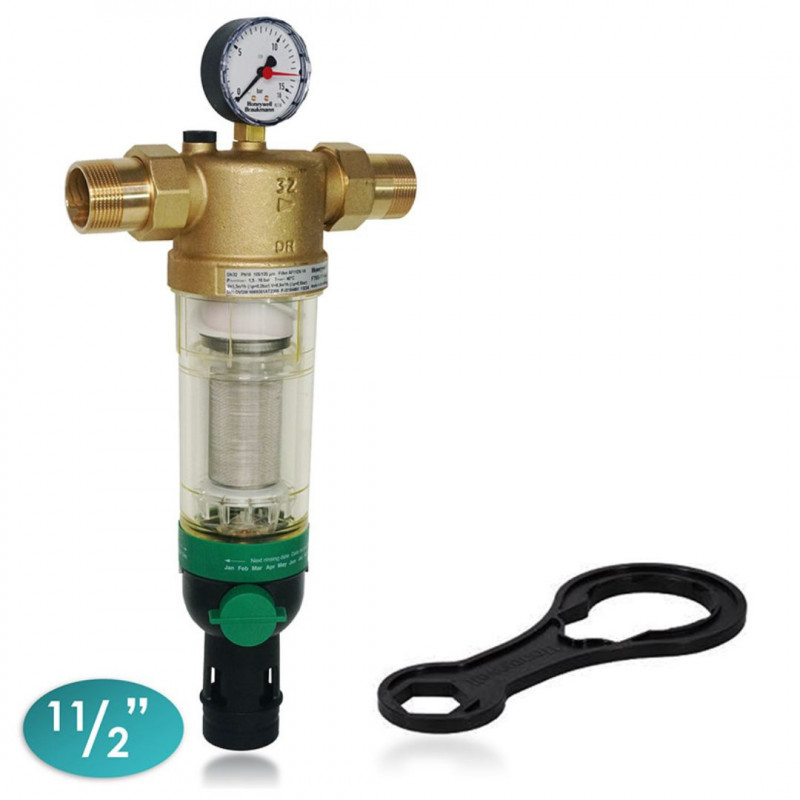

Device design

The filter consists of precisely selected components responsible for effective filtration, operating parameter control, and convenient servicing.

• Housing with pressure gauge
• Threaded connections
• Fine mesh filter insert
• Transparent filter housing
• Ball valve with drain cover
• Ring spanner for the filter housing

Materials of construction

The materials used were selected for durability, resistance to operating conditions, and safe use in water installations.

• Housing made of dezincification-resistant brass
• Threaded connections made of brass
• Filter insert made of stainless steel
• Filter housing made of red brass or impact-resistant, transparent synthetic material
• Seals made of nitrile rubber (NBR)

Installation rules

Correct installation has a direct impact on filtration effectiveness, ease of contamination monitoring, and convenient subsequent operation.

• Horizontal installation with the filter housing facing downward – this position ensures optimum efficiency.
• Installation of shut-off valves on both sides of the water meter.
• Ensure access to the device so that the pressure gauge is clearly visible – with the transparent filter housing, the contamination level of the filter mesh can be easily determined, which facilitates maintenance and inspection.
• Installation directly after the water meter in accordance with DIN 1988, Part 2.

Operation and maintenance

Operation of the F76S-11/2AA model has been designed to be as simple and fast as possible. The user can monitor the filter's operating condition thanks to the transparent housing and pressure gauge. An additional convenience is a special setting ring reminding the user about the next backwash.

Backwashing allows the cartridge to be cleaned without removing the device from the installation. This solution saves time, reduces service downtime, and decreases the amount of water needed for cleaning. If required, the filter can work with an automatic backwash unit, which further facilitates regular operation.

Additional important information

• Threaded connections
• Fine mesh filter insert
• KVS value: 22
