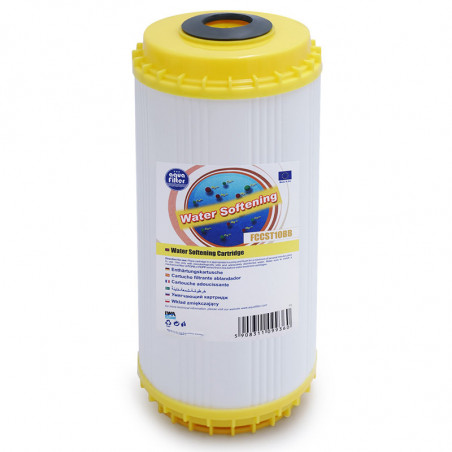

FCCST10BB Aquafilter BIG BLUE 10 softening cartridge

Softening cartridge for Big Blue 10 housings – effective limescale protection

Aquafilter FCCST10BB has been designed for use in 10" Big Blue housings. Its function is to reduce the compounds responsible for water hardness, primarily calcium and magnesium ions. In the ion exchange process, they are replaced with sodium ions, which significantly limits the formation of limescale deposits.

This solution works wherever hard water accelerates the wear of installations and equipment. The cartridge helps protect components that come into contact with water against limescale buildup, which can reduce equipment efficiency and hinder day-to-day operation.

How does the Aquafilter FCCST10BB cartridge work?

The cartridge contains fine-grained ion exchange granulate with a high capacity to exchange calcium and magnesium ions for sodium ions. As a result, water softening is effective and well suited to applications related to protecting installations and equipment operating with utility water.

The cartridge design has been developed so that water enters at one end and exits at the other, passing through the entire ion exchange granulate bed. This flow direction allows the active surface area of the media to be used to the fullest and increases cartridge efficiency.

Additionally, the FCCST10BB model features its own final filter, which prevents granulate particles from escaping beyond the filter. This is an important design element that affects the cleanliness of operation of the entire filtration system.

Key advantages of the cartridge

• the cartridge contains technologically treated ion exchange granulate with a grain size of 0.2 to 0.7 mm,
• it is characterized by an exceptionally effective ability to exchange calcium and magnesium ions for sodium ions, thereby softening the water,
• used for cold and hot utility water,
• prevents limescale buildup in household appliances and industrial machines,
• the cartridge components have been approved by NSF and FDA,
• the cartridge has a PZH hygiene certificate,
• designed so that water flowing through the cartridge penetrates the entire ion exchange granulate bed, ensuring its maximum performance.

Application

The Aquafilter FCCST10BB softening cartridge is recommended for protecting household appliances, heating equipment, and plumbing systems against the accumulation of calcium and magnesium deposits. It can be used as part of a larger water treatment system, including where it is important to reduce the effects of hard water before further filtration stages.

It is a good choice for users who want to improve the operating conditions of a water installation and reduce deposits at water draw-off points and in equipment supplied with utility water.

Compatibility and operation

The FCCST10BB model is intended for 10" Big Blue housings. Before purchase, it is worth making sure that the filter housing complies with this dimensional standard. A properly selected housing ensures appropriate flow and safe cartridge operation.

In everyday use, the durability and effectiveness of the cartridge are mainly influenced by the quality of the feed water. The greater the hardness and the load of mechanical contaminants, the more important properly selected prefiltration becomes. Using a mechanical cartridge before the softening cartridge helps limit contaminant buildup and extends the effective operating life of the media.

The cartridge can operate with both cold and hot utility water, providing broad application possibilities in domestic installations and selected technical systems.

Technical specifications
