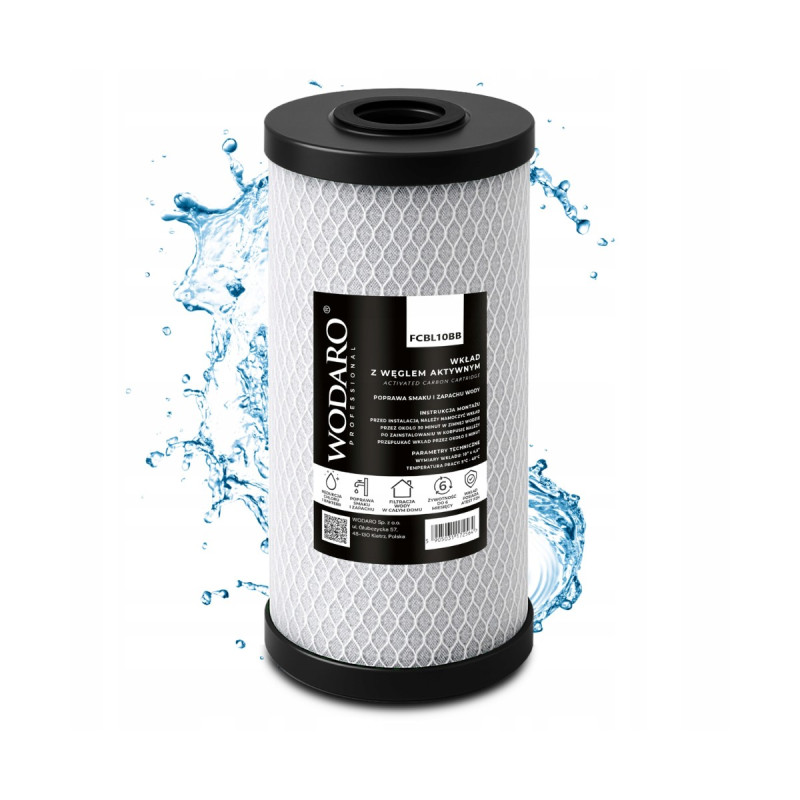

FCBL10BB WODARO carbon filter insert BIG BLUE 10"
FCBL10BB WaterRO is a carbon block filter made of sintered activated carbon for BIG BLUE 10" housings. It effectively reduces free chlo Read moreShow less
FCBL10BB WaterRO is a carbon block filter made of sintered activated carbon for BIG BLUE 10" housings. It effectively reduces free chlorine (98% to 99.99%) and many organic contaminants, improving the taste and odor of water. Designed for treating cold drinking water and general use. It features a membrane that limits carbon dust and provides filtration at a level of 10 microns .
Benefits
Specifications
- Application
- Drinking water
- Cartridge diameter
- 4,5″
- Cartridge length
- 10″
- Cartridge type
- Carbon
- Compatibility
- Big Blue 10"
- Filtration rating
- 10 µm
View full specifications
- Housing standard
- Big Blue 10″
- Maximum flow
- 15 l/min
- Filter media
- Activated carbon
- Model
- FCBL10BB WODARO
- Product type
- Filter cartridge
Description
FCBL10BB WODARO carbon filter insert BIG BLUE 10" is a high-performance water filter made of sintered activated carbon, designed for treating cold drinking water and utility water. It fits Big Blue 10" housings and effectively supports the water filtration system in a house, apartment, or small building. It reduces free chlorine and many organic contaminants, improves the taste and odor of the water, and thanks to 10-micron filtration and a membrane limiting carbon dusting, it also works well as a component of under-sink installations, reverse osmosis systems, and water treatment solutions.

Big Blue 10" carbon filter insert for effective improvement of water quality
The FCBL10BB WODARO model is made of sintered activated carbon from the wodaRO line. This design makes it possible to effectively reduce the presence of free chlorine and many undesirable organic contaminants that affect the taste, smell, and comfort of everyday water use.
The insert removes from water from 98% to 99.99% of free chlorine, as well as chlorinated solvents, aromatic hydrocarbons, and up to 85% of chlorinated pesticides, polycyclic compounds, phenol, benzene, and other organic substances. As a result, the water becomes more pleasant to use both for drinking and for general household purposes.
Why is sintered activated carbon a good choice?
Sintered activated carbon stands out due to its large specific surface area and a high number of active centers. In practice, this means more effective binding of contaminants and better use of the filter media compared with many standard carbon inserts.
In this model, that translates into about 25% higher usable efficiency compared with other carbon inserts. This is an important advantage for users looking for stable filter performance and a real improvement in water quality in everyday use.
Applications of the FCBL10BB WODARO insert
The insert has been designed for BIG BLUE 10" housings. It can operate in installations responsible for treating cold drinking water and utility water.
Thanks to its appropriate performance and design, it is a practical solution in various filtration setups:
- for Big Blue 10" housings,
- for apartments and small buildings as part of whole-house filtration,
- for under-sink systems,
- for reverse osmosis systems, where it can support the filtration system as a pre-filter or supplementary insert.
This is a versatile carbon insert that fits well both in a classic home water filtration system and in more advanced solutions such as a reverse osmosis filter, an osmotic filter, or a complete reverse osmosis system.
Main benefits in everyday use
- It has an additional membrane protecting against carbon dusting.
- Flow rate up to 15 l/minute.
- Allows use in apartments and small buildings for the entire installation.
- High quality makes the insert suitable for osmosis systems and under-sink systems.
- Improves the taste and odor of water, removes chlorine and its derivatives.
- Protects the skin against dryness and irritation.
- Additionally, the pressed structure provides 10-micron filtration.
Ease of use and impact on water quality
Reducing chlorine and organic compounds translates not only into better taste and odor of water, but also into greater comfort during everyday activities. Water after filtration is more pleasant for drinking, preparing beverages and meals, and for household use.
Limiting chlorine may also be important during bathing and washing, as it helps reduce the feeling of dryness and skin discomfort. That is why the insert is also suitable wherever improving the quality of utility water throughout the installation matters.
Important: the insert is intended for treating cold drinking water or utility water. It must not be used for microbiologically contaminated water or water of unknown origin.
Technical specifications
| Model | FCBL10BB WODARO |
|---|---|
| Product type | Sintered activated carbon filter insert |
| Compatibility | BIG BLUE 10" housings |
| Application | Treatment of cold drinking water and utility water |
| Filtration accuracy | 10 microns |
| Maximum flow rate | Up to 15 l/min |
| Free chlorine reduction | From 98% to 99.99% |
| Reduced contaminants | Chlorinated solvents, aromatic hydrocarbons, up to 85% chlorinated pesticides, polycyclic compounds, phenol, benzene, organic substances |
| Additional equipment | Membrane protecting against carbon dusting |
| Design features | Pressed structure, about 25% higher usable efficiency compared with other carbon inserts |
FAQ
Which housings is the FCBL10BB WODARO insert compatible with?
The insert is designed for BIG BLUE 10" housings. It is compatible with these housings and should be used in them.
Which contaminants does this carbon insert reduce?
The FCBL10BB model reduces from 98% to 99.99% of free chlorine, as well as chlorinated solvents, aromatic hydrocarbons, and up to 85% chlorinated pesticides, polycyclic compounds, phenol, benzene, and other organic substances.
Does the insert improve the taste and odor of water?
Yes. One of the main advantages of the insert is improving the taste and odor of water through effective reduction of chlorine and its derivatives, as well as organic contaminants.
What is the filtration accuracy of the FCBL10BB WODARO BIG BLUE 10" carbon filter insert?
The insert provides 10-micron filtration. This is also ensured by its pressed, sintered structure.
What flow rate does the FCBL10BB insert offer?
The maximum flow rate is up to 15 liters per minute, which makes the insert suitable for both domestic applications and small buildings.
Is this insert suitable for osmosis systems and under-sink filters?
Yes. The high build quality allows the insert to be used in osmosis systems and under-sink installations as a component responsible for improving water quality.
Can the insert be used for the whole installation in a house or apartment?
Yes. The insert can be used in apartments and small buildings as part of whole-house filtration, provided it operates in the appropriate BIG BLUE 10" housing and under conditions consistent with its intended use.
What type of water is this insert intended for?
The product is intended for treating cold drinking water and cold utility water. It should not be used for microbiologically contaminated water or water of unknown origin.
Why was a membrane protecting against carbon dusting used?
The additional membrane limits carbon dusting, which improves the comfort of using the insert and helps maintain the high operating quality of the filtration system.
