Membrane housings and RO filter housings

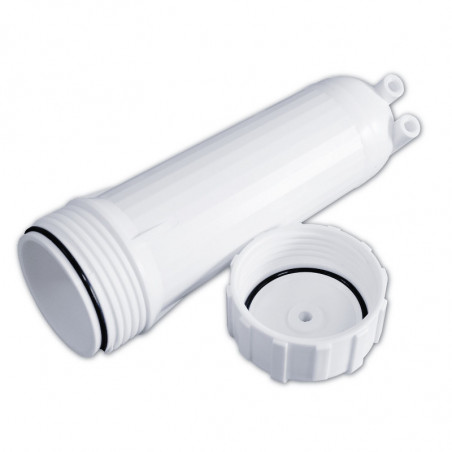

YT-3 membrane housing for reverse osmosis 3" up to 300GPD
Rating
YT-3 is a housing (body) for a 3" osmotic membrane for RO systems , designed for membranes with a capacity of 200-300 GPD. It fits, amo Read moreShow less
YT-3 is a housing (body) for a 3" osmotic membrane for RO systems , designed for membranes with a capacity of 200-300 GPD. It fits, among others, Aquafilter TFC-300 and membranes of 200 and 250 GPD from this manufacturer. It has mounting holes for quick connectors with a 1/8 inch thread and a double sealing O-ring . Due to its size, it is not compatible with standard membranes of 50-125 GPD.
Specifications
OM3
99 Items
- Accessory type
- Membrane housing
- Compatibility
- Universal RO systems
- Connection size
- 1/4″
- Maximum working pressure
- 6 bar
- Maximum working temperature
- 45 °C
- Minimum working temperature
- 2 °C
View full specifications
- Product type
- RO membrane / filter housing
Description
YT-3 is a 3" reverse osmosis membrane housing designed for high-performance RO systems with a capacity of 200-300 GPD. This membrane housing works well in installations where stable operation, leak tightness and compatibility with a larger reverse osmosis membrane matter. It is a practical choice for expanding a reverse osmosis system, an RO filter, and a more efficient water filtration system used, among others, in water treatment for specialized applications.
The YT-3 model fits the Aquafilter TFC-300 membrane and the manufacturer's 200 and 250 GPD membranes, has mounting holes for quick-connect fittings with a 1/8 inch thread, and is equipped with a double sealing O-ring. Due to its larger size, it is not compatible with standard 50-125 GPD membranes.
Obudowa membrany osmotycznej YT-3 3 cali do 300 GPDRO membrane housing for high-performance 200-300 GPD installations
The YT-3 reverse osmosis membrane housing is designed to work with membranes rated from 200 to 300 GPD. This is a solution for users who are building or upgrading a higher-performance reverse osmosis filter and need a housing matched to a larger membrane cartridge.
The housing can be mounted on the bracket of any reverse osmosis system. As a result, it works well both when servicing an existing installation and when building a new reverse osmosis-based system.
Compatibility and application
The YT-3 model is standardly compatible with the Aquafilter TFC-300 membrane and with the manufacturer's 200 and 250 GPD membranes. This is important when selecting parts for an RO system, as the correct housing size is crucial for proper operation of the entire system.
Due to the larger dimensions of the housing, smaller membranes, i.e. standard models in the 50-125 GPD range, cannot be used inside it. If the reverse osmosis system uses a smaller membrane, an appropriate smaller housing must be used.
Based on this housing, high-performance osmosis systems without a pressure tank are also assembled, used mainly for aquarium and laboratory purposes. This shows that the YT-3 is suitable for installations where increased performance and stable water filtration system operation are required.
Key design features
- designed for 200-300 GPD reverse osmosis membranes,
- compatible with the Aquafilter TFC-300 membrane and the manufacturer's 200 and 250 GPD membranes,
- can be mounted on the bracket of any RO system,
- mounting holes for quick-connect fittings with a 1/8 inch thread,
- double sealing O-ring that increases the tightness of the connection,
- design intended for larger membranes, not standard 50-125 GPD models.
Operational note: before purchasing, it is worth checking the size and type of the reverse osmosis membrane in use, as well as the type of fittings in the installation. YT-3 is a housing for larger RO membranes and is not compatible with standard 50-125 GPD membranes.
Why does the right membrane housing matter?
In a reverse osmosis system, the membrane itself is not enough for proper operation. Just as important is a properly matched housing, which is responsible for securely seating the cartridge and safely guiding the water flow. In the YT-3 model, a double sealing O-ring has been used, which supports leak tightness and helps maintain the correct operating conditions of the water filter.
A properly selected housing also makes it easier to integrate with more efficient RO systems. This is particularly important where water treatment is continuous or where higher performance is needed than in typical household installations based on 50-75 GPD membranes.
Technical specification
| Parameter | Value |
|---|---|
| Product type | Reverse osmosis membrane housing / RO membrane housing |
| Intended use | Membranes with a capacity of 200-300 GPD |
| Compatibility | Aquafilter TFC-300 and the manufacturer's 200 and 250 GPD membranes |
| Connection | 1/4" female inlet x 2* 1/8" female outlet NPT |
| Thread of mounting holes for quick-connect fittings | 1/8 inch |
| Sealing | Double sealing O-ring |
| Water temperature | From 2 to 45 °C |
| Dimensions | Length 32 cm, diameter 9 cm |
| Maximum pressure | 6 bar |
| Compatibility with 50-125 GPD membranes | No |
Questions
Which membranes does the YT-3 housing fit?
The YT-3 housing is designed for reverse osmosis membranes with a capacity of 200 to 300 GPD. It is standardly compatible with the Aquafilter TFC-300 membrane and with the manufacturer's 200 and 250 GPD membranes.
Does this housing fit standard 50-125 GPD membranes?
No. Due to the larger dimensions of the housing, the YT-3 model is not suitable for standard smaller membranes, i.e. 50-125 GPD.
What connections does the YT-3 membrane housing have?
The YT-3 model has the following connection: 1/4" female inlet and 2* 1/8" female outlet NPT. The mounting holes for quick-connect fittings have a 1/8 inch thread.
Does the housing have a seal that increases operating tightness?
Yes. The housing is equipped with a double sealing O-ring, which supports a tight seating of the membrane and proper operation of the RO system.
At what water temperature can the housing operate?
The water temperature range is from 2 to 45 °C.
What are the dimensions of the YT-3 housing?
The housing is 32 cm long and 9 cm in diameter.
What maximum operating pressure is specified for this housing?
The maximum pressure is 6 bar.
Can the housing be mounted in any reverse osmosis system?
The housing can be mounted on the bracket of any reverse osmosis system, provided that the entire system is adapted to membranes of the appropriate size and 200-300 GPD capacity.
What applications is the YT-3 housing used for?
The YT-3 model is used in high-performance osmosis systems, including systems without a pressure tank, used mainly for aquarium and laboratory purposes.
