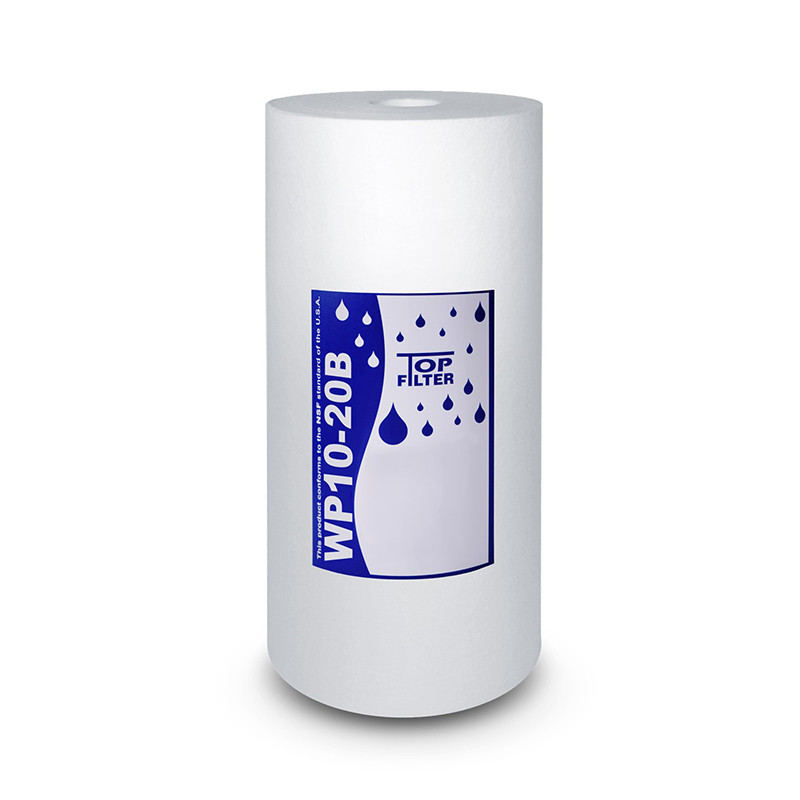

WP10-20B Top Filter cartridge 20 micron BIG BLUE 10"

Mechanical filtration to protect the installation and subsequent treatment stages

Cartridges from the WP series are made of polypropylene non-woven fabric and are used to remove typical mechanical impurities from water. The WP10-20B model has been designed for operation in BIG BLUE 10" inline housings and in the HHBB-10B water treatment station.

Thanks to filtration accuracy below 20 microns, the cartridge effectively retains particles that can reduce water use comfort and accelerate installation wear. This solution is particularly useful wherever you want to protect the entire domestic water installation in a house or apartment.

Key advantages of the WP10-20B cartridge

• Removes mechanical impurities from water.
• Filters with an accuracy of 20 microns, which is sufficient to protect the entire water installation in a house or apartment.
• It is made of foam, i.e. polypropylene non-woven fabric, formed in a way that enables filtration through the entire structure of the cartridge.
• Provides protection for expensive carbon, softening, and iron removal cartridges, as well as the water installation itself and fittings.

What contaminants does this cartridge remove?

The WP10-20B has been designed to reduce solid contaminants present in water. It effectively captures in particular:

• sand,
• silt,
• rust,
• suspended solids.

This pre-filtration stage is very important both in simple domestic installations and in more advanced treatment systems. The cartridge helps reduce the buildup of impurities in fittings, faucets, valves, and water-connected devices.

Design and operating principle

The cartridge is made of polypropylene non-woven fabric formed so that filtration takes place through the entire structure of the material. This design supports effective retention of mechanical impurities and makes the cartridge well suited as the first stage of installation protection.

In practice, this means that the WP10-20B can be used as a pre-treatment element before subsequent specialist cartridges. This is especially important when the filtration system includes media responsible for improving taste, reducing hardness, or removing iron compounds. The mechanical cartridge helps extend their effective operating life and reduce premature wear.

Applications

The WP10-20B model is intended for:

• BIG BLUE 10" inline housings,
• HHBB-10B water treatment stations.

It is a good choice as a pre-filter wherever water contains visible or fine mechanical impurities. It can operate as an independent stage of installation protection or as part of a larger treatment system. In systems such as a reverse osmosis filter, osmotic filter, or reverse osmosis system, mechanical filtration performs an important protective function for subsequent components when used at the appropriate stage of the entire system.

Operation and benefits in everyday use

Using a mechanical cartridge with 20-micron accuracy is a simple way to increase the operational safety of the entire water installation. Protecting pipes, valves, faucets, and household appliances from larger amounts of sediment can result in more stable system operation and a lower risk of rapid wear of components that come into contact with water.

WP10-20B also helps protect more advanced filtration cartridges responsible for the subsequent stages of water quality improvement. As a result, the entire system can operate more predictably, and specialist cartridges are less exposed to the burden of mechanical impurities.

* Service life depends on water contamination.
