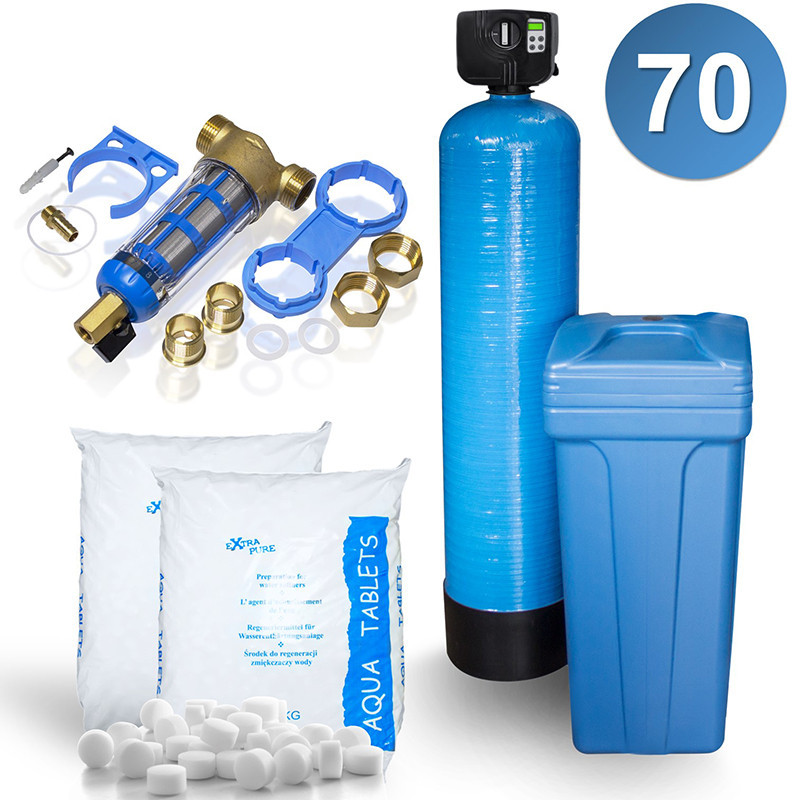

wodaRO ECOMULTI 70 BNT iron remover multi station
SM-ECM-70L-KZ1-2S
Rating
2-element multifunctional station containing 70L of ECOMIX substrate, intended for water treatment from its own source (well).
Description
wodaRO ECOMULTI 70 BNT is a 2-element multifunctional station for water treatment from a private source, especially a well. This efficient water filter combines iron, manganese, ammonia, hardness, and natural organic substances removal in one device, making it a practical water filtration system for a home supplied with well water. The ECOMIX filter media, reliable BNT control valve, and convenient brine regeneration ensure simple operation, user comfort, and high performance.
What is the wodaRO ECOMULTI 70 BNT station used for?
This 2-element multifunctional station is designed for treating water from a private source, primarily from a well. The device has been developed to address several typical water quality issues found in raw water within one system.
The station removes contaminants and issues such as:
- iron,
- manganese,
- ammonia,
- hardness,
- natural organic substances.
The device design includes a tank filled with multifunctional resin and a separate salt tank needed for regeneration. This solution combines high functionality with convenient everyday use.
How does the ECOMIX media work?
The device operates on ECOMIX media, an ion-exchange and adsorption blend of various components. This working material is responsible for the multifunctional operation of the station and enables the simultaneous reduction of several water quality problems in one treatment process.
The media works across a wide pH range, which increases application versatility and makes it easier to select the device for installations supplied with well water.
Main advantages
- cost-effective in operation,
- healthy and environmentally friendly,
- one 2-element device for five water problems,
- easy installation and comfortable operation,
- easy to select,
- reliable BNT control valve,
- clear backlit display with Polish menu.
The station is designed to operate with water from a private source. In practice, it works well as a central element of a home water treatment system where it is necessary to simultaneously reduce several troublesome water parameters. It is not a reverse osmosis system, osmosis filter, reverse osmosis system, or reverse osmosis filter, but a column water treatment station for treating all domestic water in the installation.
User comfort and operation
wodaRO ECOMULTI 70 BNT was designed as a convenient solution for everyday use. The two-element design makes installation organization easier, and salt regeneration helps maintain the working capacity of the media. The clear, backlit display with a Polish menu simplifies operation and monitoring of the device.
Convenient use is also supported by the simple operation of the BNT valve and predictable operating parameters, such as approximate salt and water consumption per regeneration.
Device dimensions
Tank with control valve
- height: approx. 155 cm,
- width: approx. 30 cm,
- depth: approx. 35 cm.
Salt tank
- height: approx. 90 cm,
- width: approx. 40 cm,
- depth: approx. 40 cm.
Free items included
The set includes practical accessories that make it easier to start up and operate the station:
- High-quality self-cleaning brass filter
- 2 bags of salt (2 x 25 kg)
- Drop water hardness tester
Self-cleaning brass filter – application
The filter provides continuous water filtration, trapping contaminants such as rust, sand, hemp fibers, and similar mechanical particles on the filter mesh. After opening the ball valve at the bottom of the housing, the contaminants collected at the bottom are discharged outside the filter.
Due to its small size, the filter can be used where installation space is limited. It can be installed in all types of systems. It works particularly well in domestic installations, helping maintain compliance with applicable standards, as well as in selected industrial applications.
Advantages of the self-cleaning filter
- Easy installation
- Continuous supply of filtered water (also during filter flushing)
- Transparent filter housing made of impact-resistant synthetic material, allowing easy monitoring of the cartridge contamination level
- Easy flushing
- Maintenance and repairs without the need to remove the device from the installation
- Rotating frame for easier cleaning
Additional important information
- Connection diameter: 1"
- Height: approx. 155 cm
- Width: approx. 30 cm
- Depth: approx. 35 cm
- Height; approx. 90 cm
- Width: approx. 40 cm
- Depth: approx. 40 cm
Technical specifications
| Parameter | Value |
|---|---|
| Device model | ECOMULTI 70L BNT |
| Media volume | 70 L |
| Tank (total capacity) | 13x54 |
| Max. flow rate | 3.2 m³/h |
| Max. capacity between regenerations | 6 m³/h |
| Power supply | 220 / 240 / 50-60 Hz |
| Approximate salt consumption per regeneration | 7 kg |
| Approximate water consumption per regeneration | 240 - 290 L |
| Operating temperature range | 4 - 40°C |
| Min./Max. operating pressure | 1.7 / 8 bar |
| Power consumption during operation / regeneration | 3 / 15 W |
| Height of tank with control valve | approx. 155 cm |
| Width of tank with control valve | approx. 30 cm |
| Depth of tank with control valve | approx. 35 cm |
| Height of salt tank | approx. 90 cm |
| Width of salt tank | approx. 40 cm |
| Depth of salt tank | approx. 40 cm |
Product Details
SM-ECM-70L-KZ1-2S
9989 Items
Data sheet
- Maximum flow
- 3.2 m³/h
- Maximum working pressure
- 8 bar
- Media volume
- 70 l
- Ammonium reduction
- Yes
- Hardness reduction
- Yes
- Iron reduction
- Yes
- Manganese reduction
- Yes
- Maximum working temperature
- 40 °C
- Minimum working pressure
- 1.7 bar
- Salt per regeneration
- 7 kg
- Minimum working temperature
- 4 °C
- Connection size
- 1″
- Filter media
- Ecomix
- Product type
- Multifunction water treatment system
- Solution type
- Whole house / POE
- Technology
- Multifunction treatment
Additional accessories 2
Questions
What type of water is the wodaRO ECOMULTI 70 BNT station designed for?
This model is designed for treating water from a private source, primarily from a well. It has been developed to work where water requires the simultaneous reduction of several quality problems.
What contaminants does the wodaRO ECOMULTI 70 BNT iron remover multi station remove?
The station removes iron, manganese, ammonia, hardness, and natural organic substances. That is why it is referred to as a multifunctional station.
What does the basic set of the station include?
The device consists of a tank filled with multifunctional resin and a salt tank for regeneration. It is a 2-element design.
What media does the wodaRO ECOMULTI 70 BNT use?
The station is based on ECOMIX media, an ion-exchange and adsorption blend of various components. The media works across a wide pH range.
What is daily operation of the device like?
Operation is made easier by the reliable BNT control valve and the clear, backlit display with a Polish menu. This solution supports comfortable operation and simple station management.
How much salt and water does the station use during one regeneration?
Approximate salt consumption per regeneration is 7 kg, and approximate water consumption is 240 - 290 liters.
What are the device dimensions?
The tank with control valve is approximately 155 cm high, 30 cm wide, and 35 cm deep. The salt tank is approximately 90 cm high, 40 cm wide, and 40 cm deep.
What is included for free in the set?
The set includes: a high-quality self-cleaning brass filter, 2 bags of salt of 25 kg each, and a drop water hardness tester.
How does the included self-cleaning brass filter work?
The filter traps mechanical contaminants such as rust, sand, and hemp fibers on the filter mesh. After opening the ball valve at the bottom of the housing, the contaminants collected at the bottom are removed from the filter, while the supply of filtered water remains continuous, even during flushing.
