wodaRO ECOMULTI 50 BNT iron remover multi station

What is the wodaRO ECOMULTI 50 BNT station used for?

It is a 2-piece multifunction station designed for treating water from a private water source, primarily from a well. The set consists of a tank filled with multifunction resin and a separate salt tank required for regeneration.

The unit removes problems from water that very often occur in well water:

• iron,
• manganese,
• ammonia,
• hardness,
• natural organic substances.

As a result, one station addresses several of the most common water quality challenges in the home. Unlike solutions such as reverse osmosis, an RO filter, or a reverse osmosis system usually used for drinking water under the sink, here we are talking about central water treatment for the entire installation.

ECOMIX media and operating principle

The station is based on ECOMIX media, an ion-exchange and adsorption mixture of various components. This media design enables multi-directional operation in one unit, without the need to build an extensive system from several separate columns.

The media works across a wide pH range, which increases practicality for use with water from private sources. Regeneration is carried out using salt, which is why the unit is equipped with a dedicated brine tank.

Key advantages of the unit

• economical to operate,
• health- and environmentally friendly,
• one 2-piece device for five water problems,
• simple installation and convenient operation,
• easy to select,
• reliable BNT control valve,
• clear backlit display with a Polish-language menu.

Everyday ease of use

wodaRO ECOMULTI 50 BNT has been designed for convenient operation. The BNT control valve is responsible for controlling the unit's operation, while the backlit display and Polish-language menu make configuration and ongoing supervision of settings easier.

The two-piece design allows the working column and salt tank to be conveniently separated. This solution works well in home utility rooms, boiler rooms, and well water connection points.

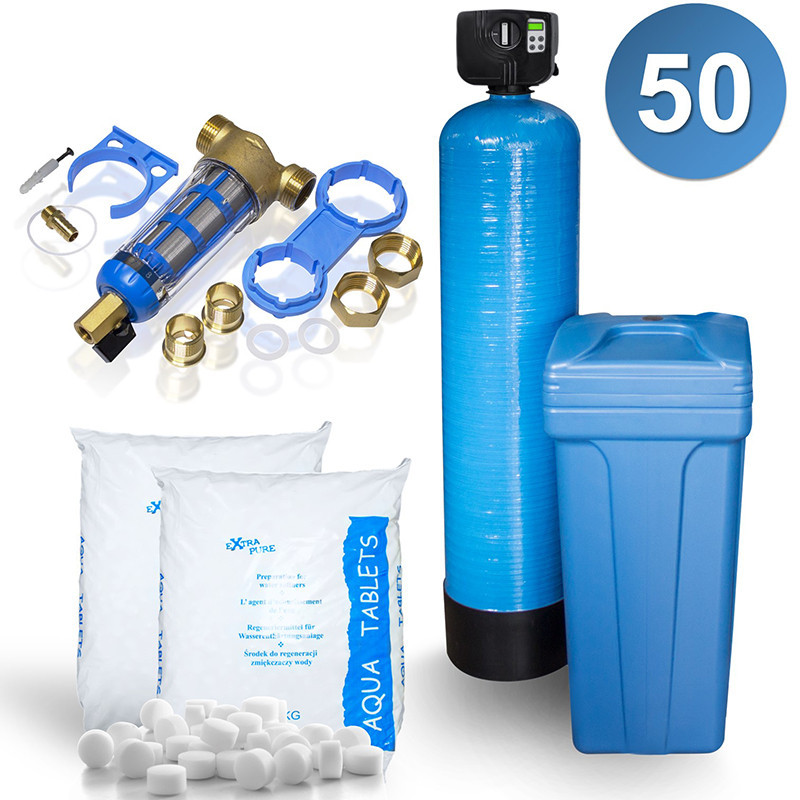

What is included in the set?

In addition to the multifunction station itself, the user also receives practical accessories that facilitate start-up and everyday operation.

• tank with multifunction resin,
• salt tank for regeneration,
• high-quality self-cleaning brass filter,
• 2 bags of salt, total 2 x 25 kg,
• drop water hardness tester.

Free: self-cleaning brass filter

Application: the filter provides continuous water filtration, trapping contaminants such as rust, sand, or hemp fibers on the filter mesh. After opening the ball valve located in the lower part of the housing, the contaminants collected at the bottom are discharged outside the filter.

Due to its compact size, the filter can be used where installation space is limited. It can be installed in all types of systems. It works particularly well in domestic installations, helping maintain compliance with applicable standards, as well as in selected industrial applications.

Advantages of the self-cleaning brass filter

• easy installation,
• continuous supply of filtered water, including during filter rinsing,
• transparent filter housing made of impact-resistant synthetic material, allowing easy control of the contamination level of the element,
• easy rinsing,
• maintenance and repairs without the need to dismantle the unit from the system,
• rotating frame for easier cleaning.

Dimensions and installation space planning

Before installation, it is worth allowing adequate space for both elements of the set.

Tank with control valve

• height: approx. 155 cm,
• width: approx. 30 cm,
• depth: approx. 35 cm.

Salt tank

• height: approx. 90 cm,
• width: approx. 40 cm,
• depth: approx. 40 cm.

Taking these dimensions into account makes it easier to correctly position the unit and ensures easier future service and operational access.

Why is this a practical solution for well water?

When using water from a private source, several problems often occur at the same time. Instead of building a separate system for each of them, wodaRO ECOMULTI 50 BNT combines many functions in one station. This saves space, simplifies operation, and makes use more predictable.

It is a solution for people looking for a central treatment system for the home, rather than a point-of-use device such as a reverse osmosis filter installed under the sink. In practice, the station works throughout the entire installation, improving the parameters of service water supplied to multiple draw-off points.

Additional important information

• Connection diameter: 1"
• Height: approx. 155 cm
• Width: approx. 30 cm
• Depth: approx. 35 cm
• Height: approx. 90 cm
• Width: approx. 40 cm
• Depth: approx. 40 cm

Technical specifications
