WodaRO BAMBO SOFT 25 water softener

Compact water softener for effective installation protection

The WodaRO BAMBO SOFT 25 water softener is made of high-quality, durable materials and equipped with a modern control valve, ensuring effective and economical water treatment. It is a solution designed for reliable operation, convenient handling, and everyday user comfort.

The device stands out for its solid construction, trouble-free operation, and compact form, which makes installation easier wherever every centimeter of space matters. Inside, there are 25 liters of high-quality PUROLITE C100-E softening resin.

How the WodaRO BAMBO SOFT 25 softener works

Water softening consists of removing the components that cause water hardness. This process takes place as water flows through the ion-exchange resin, where the calcium and magnesium ions responsible for hardness are exchanged for sodium ions.

When the ion-exchange capacity of the resin is exhausted, the resin is regenerated using a brine solution. This allows the device to continue working effectively and maintain high softening efficiency.

Main device functions

• Softens water – removes the components that cause hardness.
• Cleans water – from mechanical impurities.
• Saves space – thanks to its compact dimensions.

Benefits of using soft water

Using a water softener translates not only into installation protection, but also into tangible household benefits.

• lower expenses,
• protection of heating appliances and installations against limescale,
• reduced use of cleaning, washing, and laundry products,
• longer service life of household appliances,
• cutlery and dishes are shinier and free from streaks,
• smooth skin without irritation,
• pleasant-to-the-touch hair,
• preservation of fabric softness and vivid colors.

Features and equipment

• has a by-pass,
• has output water hardness adjustment, i.e. a residual hardness mixer (mixing),
• the new housing type ensures separation of the control head from the brine tank,
• the cover with a wide viewing window allows monitoring of the valve operation,
• ensures water supply during regeneration,
• controller in Polish and backlit display.

Softener design

WodaRO BAMBO SOFT 25 is a well-thought-out design in which every element is responsible for stable, convenient, and safe operation of the entire system.

1. BNT7650 control valve, featuring a menu in Polish and a residual hardness valve (mixing).
2. Unique by-pass valve, mounted at the rear of the device.
3. High-quality, durable compact housing of the softener.
4. Multilayer resin tank, reinforced with fiberglass and corrosion-resistant.
5. Ion-exchange resin ensuring effective water softening.
6. Tablet salt used in the regeneration process.
7. Self-cleaning distributor baskets – lower and upper.
8. Brine valve controlling the water flow to and from the brine tank, equipped with anti-overflow protection.
9. Brine tank made of high-density polyethylene, impact-resistant and deformation-resistant.

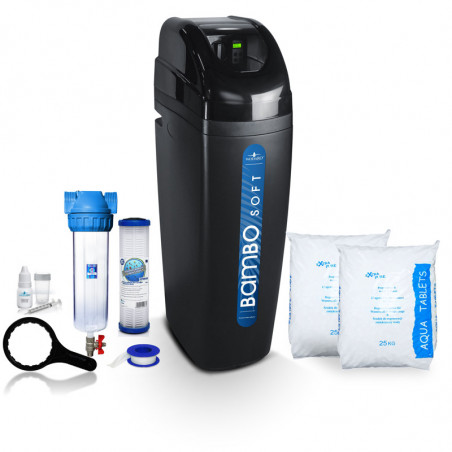

Package contents and freebies

The set includes elements that make startup, commissioning, and ongoing operation of the device easier.

• 2x tablet salt (2x25 kg),
• water filter with drain valve FHPR-3V_R and accessories: wrench, mounting plate, Teflon tape,
• non-replaceable mesh cartridge FCPNN50M,
• water hardness tester.

Pre-filter included in the set

The set includes an FHPR-3V_R pre-filter with a drain valve, equipped with a reusable mesh cartridge. The package also includes a housing wrench, mounting plate, and Teflon tape. The set is installed before the softener to improve water quality and at the same time protect the resin inside the device.

• 3-piece housing – the innovative design makes servicing easier, because to unscrew the housing it is enough to unscrew only the ring. There is no need to rotate the entire bowl, as in 2-piece versions.
• Drain valve – enables flushing sediment from the filter without removing the cartridge.
• FCPNN50M mesh cartridge – an efficient sediment cartridge for cold water treatment. The nylon mesh captures sand-sized impurities and similar particles, preventing them from entering the further part of the water installation. The cartridge practically does not cause pressure drops, because the resistance to water flow is minimal.

This configured set works well with a domestic water treatment system. Although the softener serves a different function than reverse osmosis, an RO filter, or a reverse osmosis system installed at a kitchen point of use, it is a very important stage in installation protection and water preparation for further filtration devices.

Additional important information

• 3-piece housing. The innovative 3-piece housing design makes cartridge replacement easier, because to unscrew the housing it is enough to unscrew only the ring. There is no need to turn the entire bowl, as in the case of the 2-piece version.

Technical specifications
